Butterfly Valve Leakage? A 5-Minute Quick Diagnosis and Repair Guide

Butterfly Valve Leakage? A 5-Minute Quick Diagnosis and Repair Guide

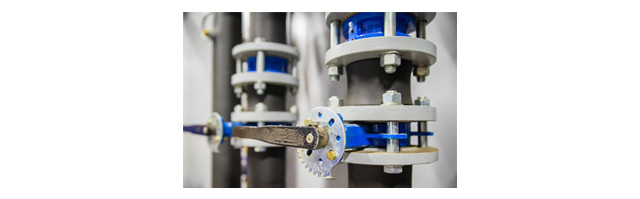

Butterfly valves are widely used in various industrial systems, and their stability is crucial for the overall performance of the equipment. However, butterfly valve leakage is a common issue that can lead to reduced system pressure, media loss, and even equipment damage. Understanding how to quickly diagnose and repair butterfly valve leaks can significantly improve production efficiency and reduce maintenance costs. In this article, we provide a simple and easy-to-follow 5-minute diagnosis and repair guide to help you address butterfly valve leakage issues quickly.

Common Causes of Butterfly Valve Leakage:

Before addressing butterfly valve leakage, it is essential to understand the potential causes of leakage. Common causes of leakage in butterfly valves can be categorized as follows:

1. Damage to Sealing Components

Sealing components in butterfly valves (such as seals, O-rings, etc.) are crucial for preventing media leakage. When these components are worn, aged, or chemically corroded, it can lead to poor sealing and leakage. Common causes of sealing component damage include:

* Fatigue due to prolonged use.

* Wear on sealing surfaces due to improper operation.

* Corrosion caused by chemical media.

* Aging of sealing materials in high-temperature environments.

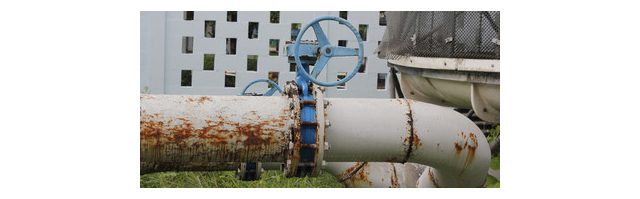

2. Cracks or Corrosion in the Valve Body

Over time, the valve body of a butterfly valve may develop cracks or corrosion, particularly in high-temperature, high-pressure, or corrosive media environments. These cracks and corrosion points can cause media to leak through structural defects in the valve body. Common causes include:

* Prolonged exposure to high temperatures or corrosive chemicals.

* Cracks caused by improper operation (e.g., excessive pressure or impact).

* Manufacturing defects during casting or production, making the valve body prone to damage.

3. Wear of the Valve Sealing Surface

The sealing surface of the butterfly valve continuously contacts during opening and closing, and over long-term use, it may wear out, leading to poor sealing and leakage. Common causes include:

* Frequent opening and closing of the valve, causing friction on the sealing surface.

* Foreign objects entering the sealing surface, causing damage.

* Mismatched or defective sealing surface materials.

4. Poor Valve Stem Sealing

The valve stem is a critical sealing area in a butterfly valve. If the valve stem seals are damaged or poorly designed, leakage can occur around the valve stem. Common causes include:

* Aging or damage to the valve stem seals.

* Improper installation of the valve stem, leading to poor sealing.

* High-temperature, high-pressure, or corrosive media affecting the sealing performance of the valve stem.

5. Improper Valve Closure

When closing the butterfly valve, the sealing surfaces should make full contact to prevent leakage. If the valve does not close properly or completely, it can cause leakage. Possible causes include:

* Improper operation or malfunctioning of the actuator, preventing full closure.

* Structural issues or deformation of the valve, preventing perfect contact of the sealing surfaces.

* Lack of adjustment or inadequate maintenance over time.

6. Improper Installation

Incorrect installation can cause unbalanced pressure distribution during valve operation, increasing the risk of leakage. Common installation issues include:

* Incorrect installation angle, leading to misalignment of the sealing surface.

* Use of improper tools during installation, causing deformation of the valve body or stem.

* Failure to tighten the valve properly during installation, resulting in leakage at the connection points.

7. Abnormal Operating Conditions

If the butterfly valve operates beyond its design specifications, leakage can occur. Common abnormal operating conditions include:

* Operating at pressures or temperatures exceeding the valve’s design specifications.

* Media characteristics (e.g., containing solid particles or high viscosity) exceeding the valve’s tolerance.

* Frequent opening and closing of the valve under conditions that do not align with its design specifications.

8. Material Issues

The material of the butterfly valve may not be suitable for the working environment, which is also a common cause of leakage. Material incompatibility can lead to the valve body or sealing components being unable to withstand high temperatures, chemical corrosion, or high pressure, resulting in leakage. Common material issues include:

* Use of materials that are not resistant to high temperatures or corrosion.

* Poor chemical compatibility between the sealing material and the media.

* Lack of fatigue resistance in the valve material.

By analyzing these causes, we can help identify and prevent butterfly valve leakage issues during operation and take effective repair or maintenance measures.

How to Repair Butterfly Valve Leakage?

Repairing butterfly valve leakage requires choosing the appropriate method based on the cause of the leakage. Here are the common repair methods for issues such as damaged seals, valve body cracks, valve stem sealing issues, and improper operation:

1. Replacing Sealing Components

If the leakage is caused by damaged sealing components (such as seals or O-rings), the most direct repair method is to replace the sealing components. Aging, wear, or corrosion of the seals can lead to poor sealing and leakage.

Repair Steps:

* Close the system and release pressure: Ensure the system is shut down and the pressure around the valve is released before starting the repair.

* Disassemble the valve: Depending on the valve type, disassemble it, usually by removing the fixed bolts.

* Inspect the sealing surface and sealing components: Check the valve’s sealing surfaces for any visible wear or damage, especially where the valve body contacts the sealing ring.

* Replace the sealing components: Choose appropriate seals (e.g., PTFE, rubber) that match the valve material and operating environment. Ensure correct placement to avoid improper installation.

* Reassemble the valve: After replacing the seals, reinstall the butterfly valve securely in the system.

2. Repairing Valve Body Cracks or Corrosion

If the leakage source is cracks or corrosion in the valve body, it may require repair or replacement of the valve body. For minor cracks and corrosion, welding repair is an option, but severe damage may require replacing the entire valve body.

Repair Steps:

* Inspect cracks and corrosion: Carefully check the valve body to determine the extent and location of cracks or corrosion.

* Clean the surface: Before welding, clean the area around the cracks to remove dirt and rust, ensuring good welding quality.

* Welding repair: For small cracks, use welding techniques to repair them, paying attention to temperature control to avoid further deformation of the valve body.

* Replace the valve body (if necessary): If the valve body is severely corroded or cracks cannot be repaired, replace the entire valve body with one that matches the original valve type.

3. Repairing Valve Stem Seals

If leakage occurs around the valve stem, it is often due to aging or damaged stem seals. Replacing the valve stem seals is necessary.

Repair Steps:

* Close the system and release pressure: Ensure safety by shutting down the valve and releasing pressure in the system.

* Disassemble the valve stem: Disassemble the valve stem components, typically requiring the removal of parts connected to the stem.

* Inspect the seals: Check the valve stem seals for aging, wear, or damage.

* Replace the seals: Select appropriate seals for the valve stem model. Ensure correct placement and avoid damaging the new seals.

* Reassemble the valve stem: After replacing the seals, reassemble the stem parts and check if the valve works properly.

4. Adjusting Valve Closure Position

If the leakage occurs due to the valve not fully closing, it is necessary to adjust the closure position to ensure complete contact between the sealing surfaces.

Repair Steps:

* Inspect the actuator: Check if the actuator operates correctly and if there are any jams or imbalances.

* Adjust the actuator: If problems are detected, adjust or replace the actuator to ensure the valve can close completely.

* Inspect the sealing surface: Check the sealing surface of the valve. If it is worn or deformed, it may need to be polished or replaced.

5. Cleaning and Maintenance

Regular cleaning and maintenance help prevent leakage issues and extend the lifespan of butterfly valves. This is especially crucial in high-temperature, high-pressure, and corrosive media environments.

Maintenance Steps:

* Regularly check seals: Inspect seals and O-rings periodically, replacing worn or aged components promptly.

* Clean the valve surfaces: Periodically clean the valve surfaces to remove dirt, rust, and other debris that may affect valve performance.

* Lubricate the valve stem and actuator: Regularly lubricate the valve stem and actuator to reduce friction and prevent wear on sealing surfaces.

* Check valve operability: Ensure the valve operates smoothly and make necessary adjustments or maintenance.

6. Installation and Operation Guidelines

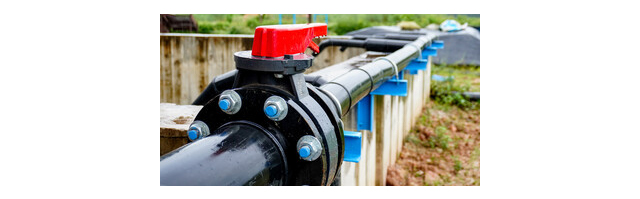

Proper installation and operation are crucial to prevent leakage. When installing, ensure the valve is securely connected to the pipeline to avoid leaks caused by improper installation.

Installation and Operation Considerations:

* Strictly follow installation guidelines: Ensure the valve is installed with the correct direction, angle, and torque.

* Avoid overloading: Ensure the butterfly valve operates within its design pressure and temperature range to avoid leakage caused by overloading.

* Regularly check and calibrate: Periodically check the valve’s operation and calibrate it to ensure complete closure.

7. Routine Maintenance and Inspection

Routine maintenance and inspection of butterfly valves are the best methods for preventing leakage issues. Regular checks can help identify potential leakage risks early, preventing more severe failures.

Maintenance Recommendations:

* Periodically conduct a comprehensive check of the valve, focusing on seals, valve body, valve stem, and actuator.

* Promptly clean and replace damaged components to ensure the valve functions properly.

Butterfly valve leakage is a common but serious issue. By following the 5-minute diagnosis and repair methods outlined above, you can quickly identify the source of leakage and take appropriate repair actions to prevent more severe consequences. Regular inspection and maintenance will ensure the normal operation of butterfly valves and significantly reduce the risk of equipment failure. If leakage issues cannot be resolved independently, it is best to consult professional repair personnel.
