Butterfly Valve vs. Ball Valve: Which is the King of Fluid Control?

Butterfly Valve vs. Ball Valve: Which is the King of Fluid Control?

In the fluid control industry, butterfly valves and ball valves are two widely used valve types, each with its own structural features and advantages. So, which valve is more advantageous in practical applications? Today, we will compare these two valves from various dimensions to help you choose the most suitable fluid control device for your needs.

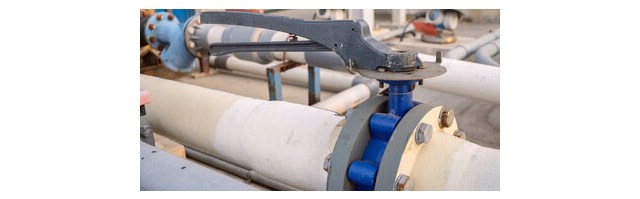

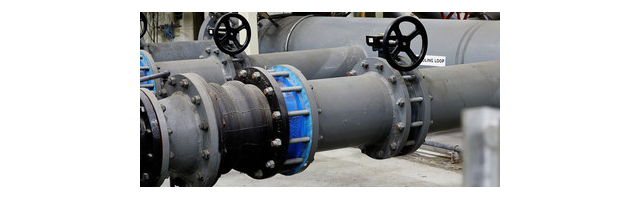

What is a Butterfly Valve?

A butterfly valve is a valve used to control the flow of fluids. Its main characteristics include a simple structure, small size, and light weight, making it suitable for high-flow, low-pressure situations. The working principle of the butterfly valve is closely related to its name—the valve disc is shaped like a butterfly, and it rotates inside the valve body like butterfly wings. By rotating the disc, the fluid flow can be adjusted or completely cut off.

Structure of a Butterfly Valve

A butterfly valve typically consists of the following parts:

Valve Body: The outer shell of the butterfly valve, usually made of cast iron, stainless steel, or cast steel, offering strength and corrosion resistance.

Valve Disc: The core part of the butterfly valve, usually a round metal plate. It is connected to the valve body through the valve shaft and rotates inside the body to control fluid passage.

Valve Shaft: Connects the valve disc and the drive mechanism, supporting the disc's rotation.

Drive Mechanism: The drive mechanism of a butterfly valve can be manual, pneumatic, electric, or hydraulic, used to control the opening and closing of the valve disc.

Seal Ring: Located between the valve disc and valve seat, it ensures no fluid leakage when the valve is closed.

Advantages of Butterfly Valves

Simple Structure: The simple design of the butterfly valve leads to low manufacturing costs and easy installation.

Compact: Due to its compact design, the butterfly valve is ideal for applications with limited space.

Lightweight: Compared to ball valves and gate valves, butterfly valves are lighter, making them easy to transport and install.

Suitable for Large Flow Control: Butterfly valves are particularly suitable for large flow, low-pressure fluid control systems, such as HVAC systems, wastewater treatment, and more.

Cost-Effective: Butterfly valves are relatively inexpensive, making them ideal for projects with limited budgets.

Applications of Butterfly Valves

* Water Treatment Industry: Used to control the flow of sewage and wastewater.

* HVAC Systems: Controls air or water flow in heating, ventilation, and air conditioning systems.

* Chemical Industry: Regulates the flow of chemical fluids, especially effective in low-pressure fluid control.

* Oil & Gas Industry: Used in pipelines to transport large quantities of oil and gas.

* Building and Construction Equipment: Used in systems like fire protection to control water flow.

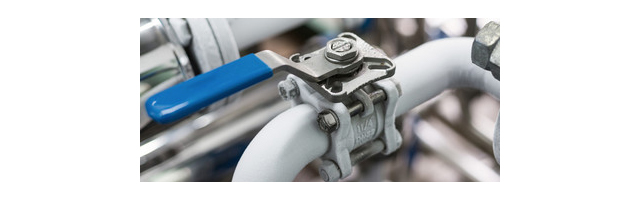

What is a Ball Valve?

A ball valve is a valve that controls fluid flow by rotating a hollow ball with a hole through it. The working principle is simple and direct: the ball has a hole (channel), and as the ball rotates, the position of the hole determines whether the fluid can pass through the valve. Ball valves are commonly used in fluid control systems that require reliable sealing and quick opening and closing.

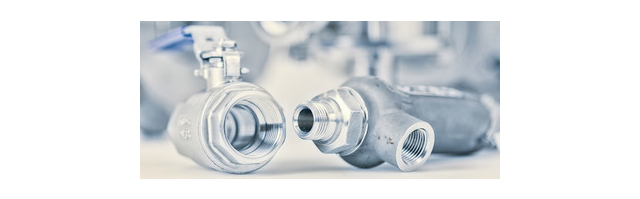

Structure of a Ball Valve

The main parts of a ball valve include:

Valve Body: The valve body is the outer casing of the ball valve, usually made of cast steel, stainless steel, or alloy materials to ensure strength and corrosion resistance.

Ball: The core component of the ball valve, typically a hollow metal ball with a hole through it. The size and position of the hole determine whether fluid can pass through the valve.

Valve Seat: Located on both sides of the ball, the valve seat serves to seal. Valve seats are usually made from wear-resistant, corrosion-resistant materials like PTFE.

Valve Stem: Connects the ball to the valve's operating mechanism. The stem rotates to drive the ball and adjust fluid flow.

Drive Mechanism: The drive mechanism of a ball valve can be manual (handwheel), pneumatic, electric, or hydraulic, offering ease of operation and adaptability to various automation needs.

Advantages of Ball Valves

Excellent Sealing: Ball valves offer superior sealing performance and effectively prevent fluid leakage. They are ideal for applications where leakage control is crucial.

Ease of Operation: The opening and closing actions of ball valves are very simple and typically only require a 90-degree rotation, making them quick and convenient to operate.

Suitable for High Pressure and Temperature: Due to their strong sealing and pressure resistance, ball valves can withstand higher pressures and temperatures, making them suitable for harsh industrial environments.

Durability: The simple and wear-resistant design of ball valves ensures a long service life and makes them less prone to damage, especially in systems that require frequent opening and closing.

Leak-Free: The fully sealed design of ball valves ensures that fluid cannot leak out of the valve, even under high pressure.

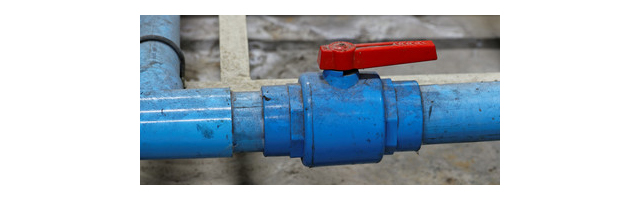

Applications of Ball Valves

Ball valves are widely used in fluid control systems that require high sealing performance and quick switching. Common applications include:

* Oil & Gas Industry: Ball valves are commonly used in oil and gas pipelines to prevent leakage.

* Chemical Industry: Ball valves are effective in preventing fluid leakage during chemical transport and reactions, particularly in high-temperature, high-pressure environments.

* Power Plants: Ball valves are extensively used in controlling steam and cooling water in power plants for efficient, reliable fluid control.

* Water Treatment: Ball valves are used in sewage treatment plants for fluid shutoff and flow control, especially in high-pressure water systems.

* Food and Beverage Industry: Ball valves are frequently used in fluid control systems in food and beverage processing due to their leak-free design and easy cleaning.

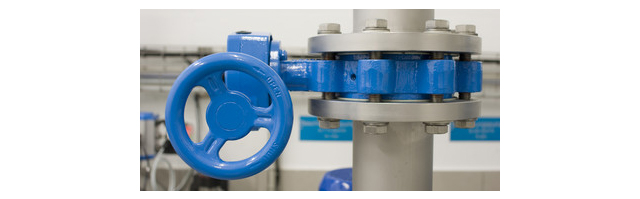

Key Differences Between Butterfly Valves and Ball Valves

While both butterfly and ball valves are commonly used fluid control devices, they have significant differences in structure, working principle, and application. Below are the main distinctions:

Structure and Working Principle

Butterfly Valve:

Structure: The core component is a round valve disc connected to the valve body by a shaft. The disc rotates around the shaft inside the valve body to regulate fluid flow.

Working Principle: The butterfly valve controls fluid flow by rotating the disc. The angle of rotation determines whether the fluid passes through the valve and the flow rate.

Ball Valve:

Structure: The core component is a hollow metal ball with a hole. The ball rotates inside the valve body to control fluid flow.

Working Principle: The ball rotates 90 degrees to change the position of the hole, allowing or blocking the flow of fluid. Ball valves typically operate in a fully open or fully closed state.

Sealing and Flow Control

Butterfly Valve:

Sealing: Butterfly valves have relatively poor sealing, especially in high-pressure, demanding environments where slight leakage may occur.

Flow Control: Butterfly valves are suitable for large flow control but may not offer precise flow regulation at low flow rates.

Ball Valve:

Sealing: Ball valves provide excellent sealing, making them ideal for high-sealing applications like high-pressure, high-temperature environments.

Flow Control: Ball valves are not suitable for fine flow control, as they primarily function in fully open or closed states.

Applications

Butterfly Valve:

* Suitable for large-flow, low-pressure fluid control situations such as air ducts, water treatment, and HVAC systems.

* Ideal in spaces where compact design is necessary.

Ball Valve:

* Suitable for high-pressure, high-temperature applications requiring high sealing and quick switching, such as in oil, gas, and chemical plants.

* Best for applications where full opening or closing is needed quickly.

* Performance and Durability

Butterfly Valve:

Performance: Best for large-flow control but less effective in high-pressure or high-temperature applications.

Durability: Due to its simple structure, butterfly valves generally have a long service life, though seals need periodic inspection.

Ball Valve:

Performance: Best for high-pressure and high-temperature environments, with excellent sealing and reliable operation.

Durability: Ball valves have a longer service life, particularly in systems with frequent opening and closing due to their durable design.

Cost and Installation

Butterfly Valve:

Cost: Butterfly valves are more cost-effective, especially for projects with limited budgets.

Installation: Installation is relatively simple, and they are ideal for tight spaces.

Ball Valve:

Cost: Ball valves are more expensive due to their complex design and manufacturing requirements, suitable for high-demand applications.

Installation: While installation is simple, ball valves tend to be larger and may not be suitable for cramped spaces.

Examples of Application

Butterfly Valve:

Water Treatment: Common in sewage treatment and large-flow water systems.

HVAC Systems: Used to regulate air or water flow in HVAC systems.

Duct Control: Ideal for controlling airflow in duct systems.

Ball Valve:

Oil & Gas: Widely used in oil and gas pipeline control to prevent leaks.

Chemical Industry: Used for controlling flow of chemicals and corrosive fluids.

Power Plants: Controls steam and cooling water flows.

Conclusion: Who is the King of Fluid Control?

Choose Butterfly Valve: If your needs involve controlling large flows in low-pressure environments with a limited budget, the butterfly valve is a cost-effective choice. It is ideal for applications where extreme sealing and precise flow control are not required.

Choose Ball Valve: If you require high sealing performance, resistance to high pressures or temperatures, and quick opening or closing, the ball valve is the better option. It performs excellently in demanding industrial environments.

In conclusion, there is no absolute winner. The right valve depends on your specific fluid control requirements, ensuring efficient and safe operation of your system.
