Causes of Valve Seizure and How to Prevent It

I. Overview of Valve Seizure

Valve seizure occurs when the moving parts of a valve become stuck or obstructed, preventing it from opening or closing properly. This can happen in various types of valves, including gate valves, ball valves, and butterfly valves. While the design and operation of these valves differ, the root causes of valve seizure are often the same.

Gate valves rely on a stem to push a disk against a seat to control fluid flow. If the stem or disk becomes damaged, the valve may seize.

Ball valves use a rotating ball with a hole in it to open and close the flow path. If the ball or stem malfunctions, it can cause the valve to become stuck.

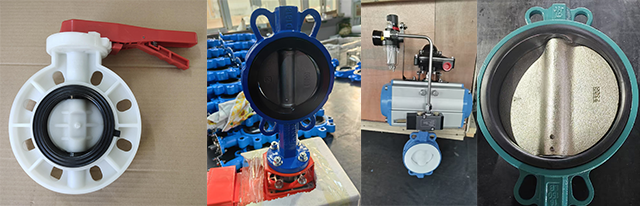

Butterfly valves use a disk that rotates around an axis to control flow. A problem with the disk or the valve’s actuator can lead to valve seizure.

When a valve seizes, the system may experience blocked flow or loss of pressure, resulting in operational failures or system shutdowns.

II. Main Causes of Valve Seizure

Valve seizure can occur for a variety of reasons. The most common causes are contaminants blocking valve parts, poor sealing, transmission system failures, and lack of lubrication.

1. Contaminants Blocking Valve Components

In many industries, the fluid flowing through pipes often carries debris, dirt, sand, or rust particles. These contaminants can accumulate inside the valve, blocking the movement of critical parts, such as the valve stem or the ball in a ball valve.

Example: In mining or construction industries, pipes can carry slurry or dirty fluids that contain sand, gravel, and other solid materials. These particles can easily block the valve’s moving parts, causing the valve to seize.

In chemical processes, the buildup of rust or oxidation from the reaction products can cause similar issues. For instance, oxygen-reactive chemicals can form rust or scale that accumulates inside the valve body, restricting movement.

2. Poor Sealing and Valve Wear

A valve seal that is worn out, aged, or improperly installed can lead to seizure. Seals are essential for preventing leakage and ensuring smooth operation. Over time, seals can degrade or fail, leading to operational difficulties.

Worn Sealing Surfaces: Friction between the sealing surfaces and the media flowing through the valve can cause wear. If the seal wears down, it can result in leaking or make it harder for the valve to move.

Aging Seals: Seals made from elastomers (rubber-like materials) may lose their flexibility over time due to exposure to chemicals or extreme temperatures. Once seals become brittle or hardened, they no longer maintain a proper seal.

Loose or Broken Fasteners: When fasteners or bolts become loose, the valve’s seal pressure weakens. This can lead to fluid leaks or a situation where the valve becomes difficult to operate.

3. Transmission System Failures

The transmission components of a valve, such as gears, chains, and actuators, are vital for moving the valve’s internal parts. Over time, these components may suffer wear and tear or fail altogether.

Gear Wear: Gears in the valve actuators may lose teeth due to constant use. This results in improper gear engagement, which can prevent the valve from functioning.

Chain Failures: Chains used in valve actuators can stretch, loosen, or snap, causing mechanical failure.

Harsh Operating Environments: In environments with high temperatures, corrosive fluids, or excessive humidity, transmission components tend to degrade faster. This accelerates wear and can lead to full system failure if not addressed.

4. Insufficient Lubrication

Lubrication is essential for reducing friction between moving parts and ensuring smooth valve operation. Without adequate lubrication, components such as valve stems, actuators, and gears will experience excessive wear, leading to potential seizure.

Friction: Lack of lubrication increases friction between valve parts, making the valve harder to operate. This is especially noticeable in manual valves like ball valves, where the operator will need to exert more force to open or close the valve.

Lubricant Breakdown: In some industrial settings, lubricants can degrade due to high operating temperatures or chemical exposure. When the lubricant fails, it no longer serves its purpose, leading to rust, corrosion, and eventual valve failure.

III. Preventing Valve Seizure

Preventing valve seizure requires proactive maintenance and regular inspections. Several key strategies can help reduce the risk of valve failure and extend the lifespan of the valve.

1. Regular Maintenance and Inspections

Routine inspections are crucial in identifying early signs of potential valve seizure. Regularly check for damage, leaks, or unusual resistance when operating the valve.

Visual Inspections: Look for signs of physical damage such as cracks or deformation in the valve body.

Check for Leaks: Ensure that seals are intact and not leaking fluid.

Test Operation: Manually operate the valve and observe any resistance or irregularities during opening and closing.

2. Cleaning and Lubricating Valves

Keeping valves clean is essential to preventing blockages from contaminants. Regular cleaning removes dirt, rust, and other debris that could cause the valve to seize.

Clean the Valve Internals: Use suitable cleaning agents to remove debris, sediment, and rust.

Lubrication: Apply the right lubricants to moving parts to reduce friction. Regular lubrication helps keep the valve functioning smoothly.

3. Replace Worn or Damaged Parts

Over time, parts such as seals, gears, and actuators wear out. It is essential to replace any components that show signs of excessive wear.

Monitor Component Wear: Inspect components for signs of damage, wear, or corrosion.

Timely Replacement: Replace worn-out parts promptly to avoid further damage to the valve.

IV. Conclusion

Valve seizure is a common issue in many industries, but it is preventable with the right maintenance practices. By regularly inspecting valves, keeping them clean, lubricating moving parts, and replacing worn components, you can significantly reduce the risk of valve failure. These preventive measures ensure that your valves remain in good working condition, ultimately improving the efficiency and reliability of your operations.

A well-maintained valve not only improves performance but also reduces downtime and repair costs, making it a critical part of industrial maintenance.
