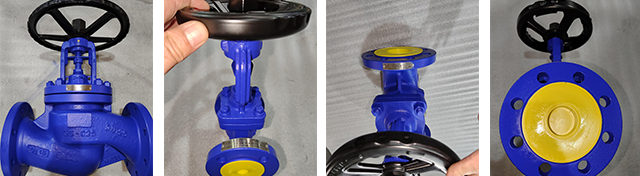

Consequences of Installing a Globe Valve Backward

Abnormal Flow Direction and Its Effects

Installing a globe valve backward can disrupt the intended flow direction of the fluid. In heating systems, for instance, the inlet may become the outlet, and the outlet may act as the inlet. This inversion prevents normal water circulation, which is critical for efficient heating. As a result, radiators may fail to function correctly, and the heating performance of the entire system deteriorates.

The internal design of globe valves is based on unidirectional flow control, meaning they can only block fluid in a specified direction. When installed in reverse, the valve cannot perform this function effectively. This leads to improper fluid regulation, reduced efficiency, and, in some cases, operational instability. For example, in thermal pipelines, a reversed globe valve may cause unintended flow behavior, hindering the valve’s ability to control or stop the fluid as designed.

Another issue is the confusion it creates during maintenance or troubleshooting. Maintenance personnel unfamiliar with the reversed installation might misinterpret the flow direction, leading to errors in judgment and potentially causing accidents or further system malfunctions.

Temperature Regulation Failures

Incorrect installation of a globe valve can also significantly affect the system's temperature regulation. Globe valves typically require a "bottom-in, top-out" installation to function optimally. If installed backward, the valve core cannot effectively regulate the flow, allowing fluid to bypass critical control points. This results in uneven temperature distribution within the system, with certain areas overheating while others remain too cold.

Overheating in specific zones can accelerate the wear and tear of system components, such as radiators, reducing their lifespan. In severe cases, it may lead to material deformation or damage. Conversely, areas with insufficient heating fail to meet comfort or operational requirements, reducing the overall effectiveness of the heating system. Additionally, the inability to regulate temperature properly increases energy consumption, raising operational costs.

Safety Hazards and Risks

One of the most serious consequences of installing a globe valve backward is the introduction of safety risks, especially in high-pressure and high-temperature environments. In industries such as oil, natural gas, and chemicals, reversed valves can lead to severe consequences. The altered flow direction may cause the system to experience unexpected pressure imbalances. Pipes and fittings designed to withstand specific conditions might fail under these altered conditions, resulting in pipe bursts, leaks, or even catastrophic system failures.

In gas pipelines, a reversed valve can lead to dangerous leaks. A gas leak poses significant fire and explosion hazards, endangering personnel and property. Similarly, in high-pressure water systems, improperly installed valves may fail to manage the pressure correctly, causing pipe ruptures and water damage. Such incidents can disrupt operations, incur significant repair costs, and even jeopardize human safety.

Effects on Different Globe Valve Structures

Bottom-In, Top-Out Globe Valves
Globe valves with a "bottom-in, top-out" structure are particularly vulnerable to issues when installed backward. These valves lack reverse sealing mechanisms, making the packing area prone to leaks if the direction is reversed. Worn packing cannot be easily adjusted to restore sealing, leading to severe medium leaks. In industrial settings, such leaks can disrupt production, harm the environment, and pose safety risks to workers.

Top-In, Bottom-Out Globe Valves
For "top-in, bottom-out" globe valves, reverse installation typically results in internal leakage. When these valves close, the pressure from the medium is supposed to enhance sealing by exerting force on the valve seat. However, a reversed valve cannot maintain this sealing effect, leading to instability. In high-pressure or high-sealing environments, such leaks can reduce system efficiency, compromise safety, and affect the overall process.

Preventing Installation Errors

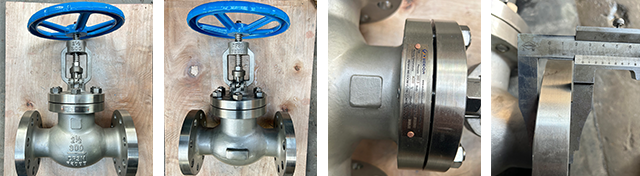

To avoid the negative impacts of reversed globe valves, proper installation practices are crucial. Always check the flow direction indicated on the valve body and ensure that it aligns with the system’s intended flow. The standard principle of “bottom-in, top-out” should be followed unless otherwise specified. Attention to detail during installation can prevent a range of operational, safety, and maintenance issues.

Conclusion

The correct installation of globe valves is vital for the safe and efficient operation of any fluid control system. Installing them backward can disrupt flow direction, compromise temperature regulation, and create serious safety hazards. The consequences range from reduced system efficiency and increased energy consumption to catastrophic failures in high-risk environments.

If a globe valve is found to be installed incorrectly, stop using the system immediately and consult a professional technician for adjustment or replacement. Proper installation not only ensures the valve’s optimal performance but also protects the system, environment, and personnel from potential harm. By prioritizing accuracy and precision during installation, we can fully harness the benefits of globe valves in both residential and industrial applications.
