Where is the main use of these fittings?

According to the use of points:

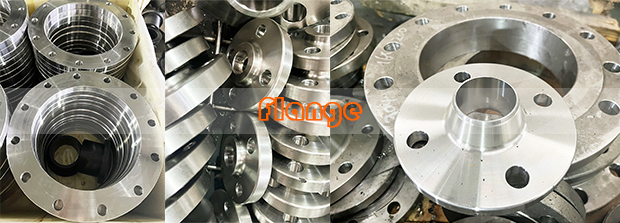

Flange: pipe and pipe interconnection parts, mainly used for the connection between the pipe end.

Live joint: also known as oil any, mainly used for matching hardware connection, can be installed in various pipeline-interface use.

Pipe hoop: a commonly used accessory in industrial pipeline connection, used to connect a short section of two tubes.

Ferrule: belongs to the stainless steel pipeline connectors, mainly used in water treatment, municipal water supply systems, and other mechanical pipeline connection systems.

Throat hoop: it is an ideal connecting fastener, applicable to fasteners for the connection of hard and soft pipes above 30mm, with a beautiful appearance after assembly.

Elbow: a commonly used in plumbing and heating installation of a connection with fittings for the connection of pipe bends, change the direction of the pipeline fittings.

Bend: the use of sets of bending molds for bending, no matter what kind of machinery and equipment and piping, most of them use the bend.

Reducer: also known as the size of the head, used for the connection of two different pipe diameters, which is divided into concentric and eccentric sizes of the head.

Reducing elbow: when making a 90-degree turn so that the caliber of the pipe changes, there are hot push elbow, stamping elbow, and welded elbow.

Branch pipe table: used for branch pipe connection of reinforcement type fittings, instead of using reducer tee, reinforcement plate, strengthen the pipe section, and other connection types.

Tee: Tee for pipe connectors, also known as pipe fittings tee or tee fittings, tee joints, used in the main pipeline to branch pipe.

Tee: used to connect four through diameter and vertical the same pipe, mainly used for diversion or conversion direction.

Gasket: placed between two flat surfaces to strengthen the sealing material, in order to prevent fluid leakage set between the sealing elements of the tight cover.

Raw Material Tape: An auxiliary item commonly used in plumbing installations to enhance the tightness of pipe connections.

Thread hemp: plumbing installation in the common auxiliary supplies, used to wrap in the pipe fittings on the wire buckle, can play a role in airtight, to prevent water leakage.

Flange blind: also known as blind flange, the real name is blind, is a form of flange connection, in fact, there is no hole in the middle of the flange.

A pipe plug: refers to the externally threaded pipe fittings used to plug the internal threads of pipe ends, there are square pipe plugs, hexagonal pipe plugs, and so on.

Head: It is a part of the container, referring to the element used to close the end of the container to keep its internal and external medium isolated, also known as the end cap.

Welding plug: It is used to protect some parts which need to be protected or are easily injured or deformed on the welded parts in the process of welding.

Pipe clamp: pipe fittings used for pipe fixing, plumbing, and heating installation of commonly used fittings, used to fix the pipeline.

Valve: the control components of the fluid delivery system, with cut-off, regulation, infusion, pressure regulator, shunt or overflow pressure relief, and other functions.

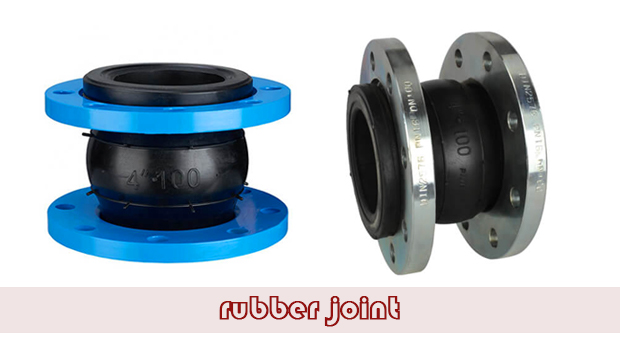

Compensator: consists of bellows and end pipe of its working body, bracket, flange, conduit, and other accessories, belongs to a kind of compensation element.

Dirt separator: to prevent impurities in the pipeline medium into the transmission equipment or precision parts so that the production failure or affect the quality of the product.

Reinforcement pipe: Reinforcement means to increase strength by increasing the force area to improve the power of the site, basically forging a tube.

Circlip: It is the primary retainer of movable denture restoration, which is made of metal and mainly plays the role of retaining, stabilizing, and supporting.

Tow hook: refers to the tugboat for the buckle hanging tow cable, and easy to release the hook. Can be divided into a spring towing hook, hydraulic towing hook, and remote control towing hook.

Lifting ring: a kind of industrial spreader, lifting machinery, lifting heavy devices, standard lifting ring has a round ring, a pear-shaped ring, and so on.

Bracket: The trusses supporting the intermediate roof frame are called brackets, generally, parallel chord trusses are used, and its web rod adopts a herringbone system with the vertical rod.

According to the connection method:

Welded fittings: pipe fittings connected with pipes by welding, including elbows, flanges, tees, reducers, heads, etc.

Threaded fittings: are pipe fittings with threads, commonly used in water and gas pipes, small-diameter water pipes, compressed air pipes, and low-pressure steam pipes.

Tube fittings: a new type of fast pipe fittings, with good sealing, that can be used repeatedly, suitable for oil, gas, and general corrosive media piping system.

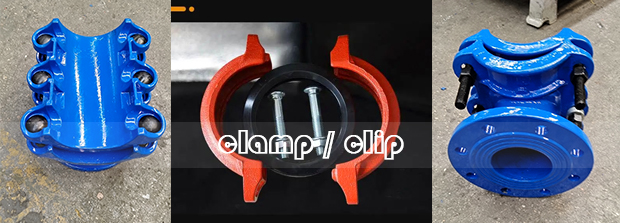

Clamp fittings: used in the fast coupling between the hoop connection, including clamps, quick-release couplings, silicone sealing gaskets, chuck blinds, and so on.

Splice fittings: a kind of high-pressure pipeline connecting fittings formed by round steel or ingot mold forging billet molding, processed by lathe machine.

Curved elastic double-fusion fittings: fittings with ports of the same size as the pipe to be connected, which are connected by heat fusion butt welding.

Adhesive fittings: solvent-based adhesive to achieve the connection of fittings, such as PVC plastic pipe.

Rubber ring connected fittings: by the body of the pipe fittings, sealing end caps, sealing rubber ring combination.

By material:

Iron and steel fittings: cast steel pipe is designed to be thick and heavy, its weldability is poor, and carbon content is high, so the weld needs on-site heat treatment.

Rubber fittings: mainly used in industry, mining, civil transport, and attraction of liquids and gases, including rubber hoses, rubber gaskets, rubber grouting pipes, etc...

Cast iron pipe fittings: cast iron casting molding pipe, including water supply cast iron pipe, sand centrifugal cast iron straight pipe, and drainage cast iron pipe.

Stainless steel fittings: including stainless steel elbow, stainless steel tee, stainless steel cross, stainless steel reducer, stainless steel pipe cap, etc...

Plastic pipe fittings: synthetic resin as raw material, add stabilizers, lubricants, and plasticizers, then extrude and process. Mainly used as water supply system piping, drainage, exhaust and sewage sanitary pipe, rainwater pipe, and wire threading pipe.

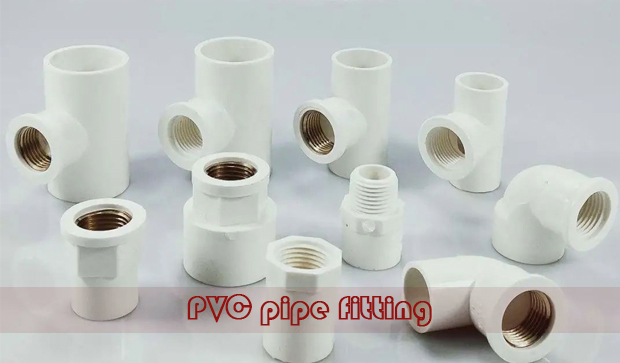

PVC pipe fittings: the polyvinyl chloride resin and stabilizers, lubricants, etc., with the hot press method of extrusion, can be divided into PVC-U pipe, PVC-M pipe, and PVC-O pipe.

Graphite fittings: refers to the combination of impermeable graphite pipe and fittings, mainly used for conveying corrosive media without metal ion pollution, but also has good thermal conductivity.

Forged steel fittings: pipe fittings made by forging, forging is with impact, forging pieces, including forged steel flange, forged steel reducer, forged steel tee, etc...

PPR pipe fittings: including U-type pipe cards, concealed valves, isometric tee, flange, flange iron ring, pipe plugs, etc., ppr essential connection using hot melt, has high plasticity.

Alloy pipe fittings: made of alloy steel material, including alloy tee/quad, alloy reducer, alloy head, flange, and so on.

PE fittings: they can be used for the connection between various flexible belts, such as the connection of PE pipes, UPVC, steel pipes, and so on.

ABS fittings: made from the resin copolymerized with three monomers of acrylonitrile, butadiene, and styrene, it is a kind of engineering plastic with high strength, high impact resistance, high sanitary performance, and high anti-aging resistance.
