Wafer vs. Flanged Butterfly Valves: Comparison and Selection Guide

Valves are indispensable components in industrial piping systems, controlling the flow of liquids, gases, and slurries. Among the various types of valves, butterfly valves stand out due to their compact design, light weight, and simplicity. Within the butterfly valve family, wafer and flanged types are commonly used, each offering distinct advantages and disadvantages based on their structure and application scenarios. This expanded article will delve deeper into the structural differences, pros and cons, and other critical factors that can influence your decision when selecting between these two types of valves.

1. Structural Comparison

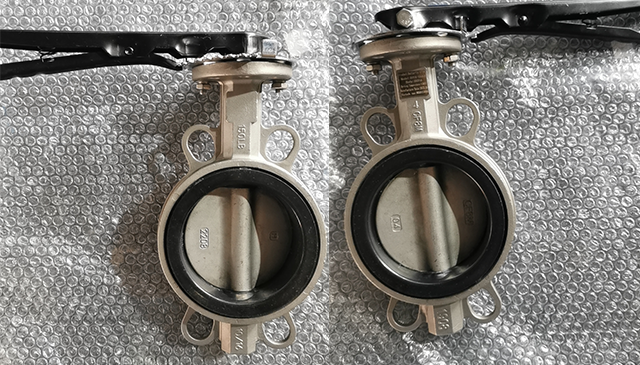

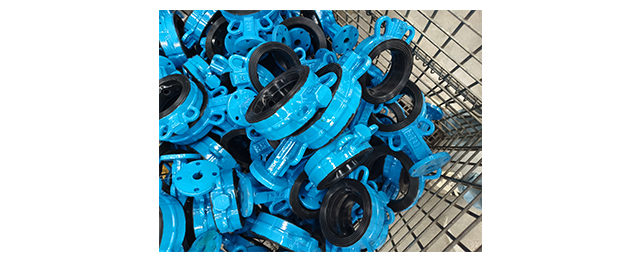

Wafer Butterfly Valve
The wafer butterfly valve is characterized by its simple, slim design. It’s installed between two flanges of the pipeline and secured by bolts that pass through the flanges and valve body. The valve itself doesn't have its own flanges, which means it’s clamped between the pipe flanges, relying on them to stay in place. This design minimizes the valve’s overall size and weight, making it ideal for applications where space is limited. The absence of extra flanges also reduces material usage, making the valve more economical.

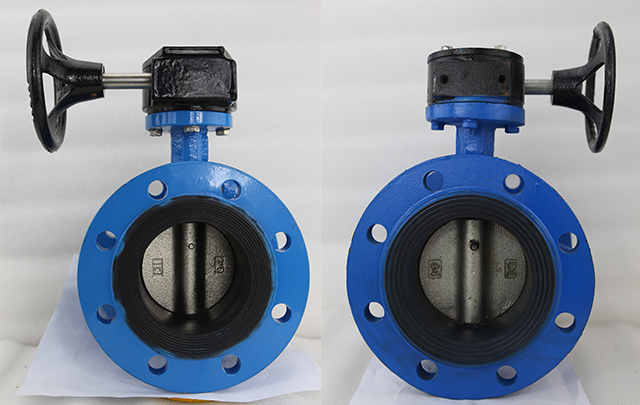

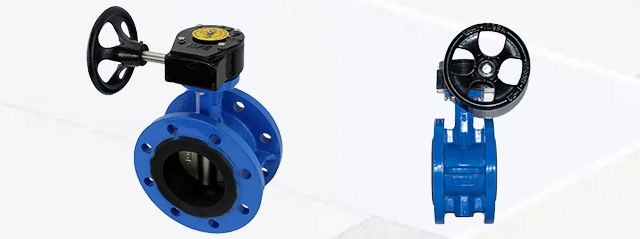

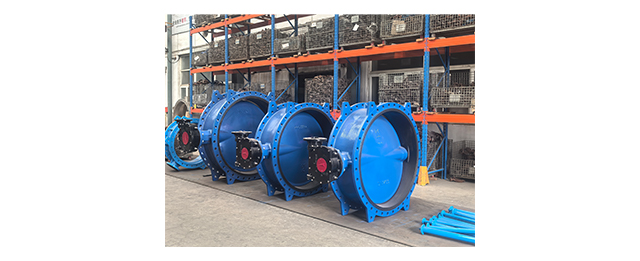

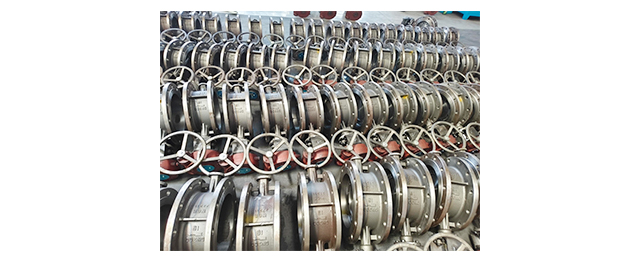

Flanged Butterfly Valve
The flanged butterfly valve, on the other hand, has flanges integrated into its valve body. These flanges are bolted directly to the pipeline flanges, creating a more rigid and secure connection. This structural difference increases the valve's overall size and weight but also enhances its ability to withstand higher pressures and provide better sealing performance. The flanged design is particularly beneficial in applications where safety, durability, and leak prevention are paramount.

2. Installation and Maintenance
Wafer Butterfly Valve
The wafer butterfly valve's installation is straightforward due to its simple design. Since it’s clamped between the pipeline flanges, it requires less precise alignment and fewer bolts compared to flanged valves. This ease of installation translates into lower labor costs and reduced downtime, which is especially beneficial in large-scale industrial settings where time is a critical factor. Maintenance of wafer butterfly valves is also simpler; the valve can be removed without disturbing the adjacent pipe sections, facilitating quick repairs or replacements.

Flanged Butterfly Valve
Installing a flanged butterfly valve is more complex and time-consuming. The flanges must be aligned precisely with the pipeline flanges, and all the bolts need to be evenly tightened to ensure a proper seal. This process can be labor-intensive and requires more time, which could lead to higher installation costs. However, once installed, the flanged connection provides a robust and secure fit, reducing the likelihood of leaks and minimizing maintenance requirements over time. In situations where maintenance is necessary, the valve’s flanges add a layer of complexity, as the entire valve assembly may need to be removed.

3. Performance Under Pressure
Wafer Butterfly Valve
The wafer butterfly valve is typically used in low to medium pressure applications. Its design, while compact and cost-effective, does not provide the same level of support as a flanged connection. In high-pressure systems, the lack of flanges can lead to potential leakage, especially if the valve is not properly aligned or if the pipe flanges are not perfectly flat. Additionally, wafer valves may experience more vibration in high-pressure environments, which could affect their long-term performance.

Flanged Butterfly Valve
Flanged butterfly valves excel in high-pressure applications. The flanges provide additional support, allowing the valve to handle higher pressures without compromising the seal. This makes flanged valves ideal for critical applications, such as in the oil and gas industry, chemical processing, and other sectors where safety and reliability are of utmost importance. The robust construction of flanged butterfly valves also helps in maintaining performance over extended periods, even in harsh operating conditions.

4. Sealing and Leak Prevention
Wafer Butterfly Valve
Wafer butterfly valves offer adequate sealing for most low to medium pressure applications. However, because they rely on the pipe flanges for support, any misalignment or imperfections in the pipe flanges can lead to leaks. The valve’s sealing capabilities are also influenced by the materials used for the seat and disc. In applications requiring frequent opening and closing, wear and tear on these components can reduce the valve's sealing efficiency over time.

Flanged Butterfly Valve
Flanged butterfly valves provide superior sealing performance due to their rigid connection and the ability to apply more uniform pressure across the sealing surfaces. The flanged design reduces the risk of misalignment, which in turn minimizes the potential for leaks. This makes flanged valves more suitable for applications with stringent sealing requirements, such as handling hazardous or corrosive fluids.

5. Cost Considerations
Wafer Butterfly Valve
Wafer butterfly valves are generally more cost-effective due to their simpler design, lower material usage, and ease of installation. They are an excellent choice for budget-conscious projects or where the valve will not be subjected to extreme conditions. However, their lower cost may come with trade-offs in durability and performance under high-stress conditions.

Flanged Butterfly Valve
While flanged butterfly valves tend to be more expensive, their higher cost is justified by their superior performance, especially in demanding applications. The additional cost of materials and the more complex installation process are balanced by the valve’s longevity and reliability. For applications where downtime and leaks could be costly or dangerous, investing in a flanged valve is often the more economical choice in the long run.

6. Versatility and Application Range
Wafer Butterfly Valve
Wafer butterfly valves are versatile and can be used in a wide range of applications, from water treatment and HVAC systems to low-pressure chemical processing. Their compact design allows them to fit into tight spaces where other valves might not be suitable. However, their pressure limitations make them less ideal for more demanding applications.

Flanged Butterfly Valve
Flanged butterfly valves are suitable for a broader range of applications, including those with high pressure, high temperature, or corrosive fluids. Their robust design and excellent sealing capabilities make them the go-to choice for critical systems where reliability is essential. Whether used in large-diameter pipelines, chemical processing plants, or power generation facilities, flanged butterfly valves provide the necessary performance and durability.

Conclusion
Choosing between a wafer and a flanged butterfly valve depends on your specific application requirements. Wafer butterfly valves are ideal for low to medium pressure applications where cost, space, and ease of installation are the primary concerns. They are best suited for less demanding environments where performance under extreme conditions is not critical.

On the other hand, flanged butterfly valves are the better choice for high-pressure, high-temperature applications where reliability, sealing performance, and durability are paramount. Although they are more expensive and complex to install, their long-term benefits often outweigh the initial costs, making them a wise investment for critical industrial systems.

By carefully considering these factors, you can make an informed decision that ensures your piping system operates efficiently, safely, and cost-effectively.
