What is the Main Function of a Silent Check Valve?
2025-03-18
What is the Main Function of a Silent Check Valve?

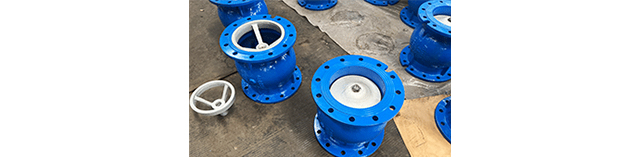

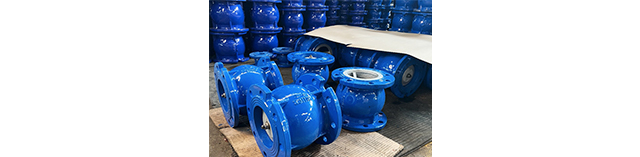

I. Introduction to Silent Check Valves
II. Working Principle of Silent Check Valves
The core operation of a silent check valve relies on dynamic balance design and a phased closing mechanism:
Forward Flow Phase:
When media (e.g., water, steam, or oil) flows in the correct direction, fluid pressure pushes the valve disc open, allowing full passage with minimal resistance.
Deceleration Closing Phase:
When flow velocity decreases or the pump stops, the valve disc closes slowly under spring preload or hydraulic damping, preventing sudden pressure surges.
Complete Sealing Phase:
The valve disc tightly adheres to the sealing ring, completely blocking reverse flow.
Key Components:
Valve Body: Made of cast iron, stainless steel, or engineered plastics for corrosion resistance and high pressure tolerance.
Valve Disc: Lightweight design integrated with springs or hydraulic dampers for slow closure.
Sealing Ring: Constructed from high-elasticity materials like EPDM or NBR for long-term sealing performance.
III. Core Advantages of Silent Check Valves
Ultra-Low Noise Operation:
Reduces noise from >90 dB (traditional valves) to 30–50 dB, suitable for noise-sensitive environments like hospitals and hotels.
Prevention of Water Hammer:
Slow-closing technology absorbs pressure fluctuations, protecting pipelines from damage.
Energy Efficiency:
Low-flow resistance design minimizes energy consumption and reduces pump power usage.
Long Service Life & Low Maintenance:
Wear-resistant materials and precision engineering extend lifespan and reduce downtime.
Broad Compatibility:
Compatible with water, sewage, oils, gases, and more. Operating temperature range: -20°C to 150°C.
IV. Applications of Silent Check Valves
Building Water Supply Systems:
Prevents backflow in high-rise buildings and central air conditioning systems.
Industrial Pipelines:
Ensures unidirectional flow in chemical plants and oil pipelines.
Municipal Engineering:
Controls reverse flow in wastewater treatment plants and firefighting water systems.
Specialized Fields:
Used in nuclear plant cooling systems and ship ballast water systems for precise flow control.
V. Installation and Maintenance Guidelines
Installation Tips:
Ensure the valve body arrow aligns with the medium flow direction.
Prefer horizontal installation; vertical installation requires upward flow.
Maintain straight pipe sections (5x pipe diameter) upstream/downstream to avoid turbulence.
Reinforce large-diameter valves with brackets to prevent vibration.
Maintenance Recommendations:
Inspect valve disc flexibility and sealing ring wear every 6 months.
Clean internal debris to prevent blockages.
Lubricate moving parts with food-grade grease (for water systems).
Conduct annual pressure tests at 1.5x working pressure.
VI. Key Functions of Silent Check Valves
Prevent Reverse Flow: Ensures unidirectional flow to avoid equipment damage or contamination.
Noise Reduction: Eliminates water hammer noise for improved environmental comfort.
Extended Equipment Lifespan: Reduces mechanical stress on pumps and pipelines.
Energy Efficiency: Optimizes fluid dynamics to minimize energy waste.
VII. FAQs About Silent Check Valves
Difference between silent and standard check valves?
Silent valves use slow-closing mechanisms to reduce noise and water hammer; standard valves rely on gravity/inertia.
Can silent check valves be installed vertically?
Yes, but ensure upward flow and proper alignment of disc gravity and spring force.
Compatible media?
Suitable for water, sewage, oils, steam, and non-corrosive gases (material-dependent).
Suitable for water, sewage, oils, steam, and non-corrosive gases (material-dependent).
When to replace a silent check valve?
If backflow, abnormal noise, or leakage occurs, consult professionals for inspection.
Do they eliminate water hammer entirely?
They significantly reduce it but may require additional measures (e.g., expansion tanks) for extreme surges.
