What to Do When Water Hammer Occurs?

2025-03-28
What is the Water Hammer Phenomenon?

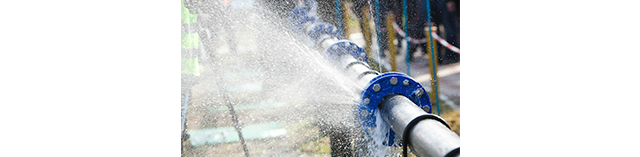

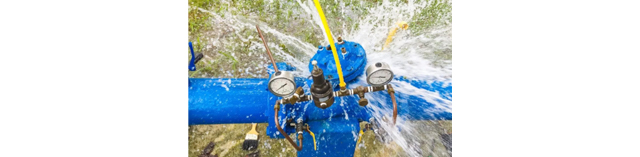

The water hammer phenomenon refers to a pressure fluctuation in pipelines caused by sudden changes in fluid velocity (e.g., rapid valve closure, abrupt pump stoppage). When flowing fluid is forced to stop or change direction suddenly, its kinetic energy is instantly converted into pressure energy, generating shockwaves that oscillate within the pipeline. This can lead to pipe rupture, equipment damage, or abnormal noise.

Common Causes of Water Hammer

Rapid Valve Opening/Closing

Cause Analysis:

Valve Type and Operation Speed:

Electric/Solenoid Valves: Automated valves with short closing times (e.g., 0.1–1 second) cause sudden velocity drops and high-pressure impacts.

Manual Valve Misoperation: Rapid manual closure (e.g., emergency shutdown), especially in large-diameter pipelines.

Case Study:

Petrochemical Plant Steam Pipeline Incident: A DN300 steam pipeline experienced a flange gasket blowout due to a 1-second electric valve closure, resulting in a 12-hour steam leak and production halt.

Sudden Pump Start/Stop

Cause Analysis:

Pump Shutdown (Power Failure or Malfunction):

Reverse flow inertia causes negative pressure water hammer at the pump outlet.

Pump shaft fracture or check valve failure exacerbates backflow impact (e.g., pressure spikes in lower floors of high-rise buildings after pump shutdown).

Pump Startup:

Rapid startup leads to "filling water hammer" in empty pipe sections (common in long-distance pipelines).

Case Study:

Nuclear Power Plant Cooling System: The Bugey Nuclear Plant in France experienced pipeline weld cracking due to water hammer from a sudden coolant pump shutdown.

Pipeline Design Flaws

Cause Analysis:

Long-Distance, High-Velocity Pipelines:

Excessive velocity (e.g., >2.5 m/s in steel pipes) accumulates kinetic energy, increasing impact risk.

Long pipelines (>1 km) suffer amplified pressure wave reflections.

Poor Pipeline Layout:

Dead-end sections reflect fluid impact, creating localized high pressure.

Frequent bends or diameter changes cause turbulent flow and pressure spikes.

Case Study:

Long-Distance Water Supply Pipeline Rupture: An DN800 steel pipe ruptured due to 18 bar water hammer pressure during pump shutdown, caused by the absence of slow-closing valves.

Gas-Liquid Two-Phase Flow (Air Entrapment)

Cause Analysis:

Unvented Air Risks:

Compressed air absorbs energy and releases it during expansion, intensifying pressure oscillations (gas explosion effect).

Experiments show water hammer pressure peaks double when air content exceeds 5%.

Common Scenarios:

Inadequate venting during pipeline filling.

Air ingress due to negative pressure (e.g., vacuum formation at pipeline tops during pump shutdown).

Case Study:

Agricultural Irrigation Pipe Burst: PVC pipes ruptured at multiple points due to air compression during pump shutdown, caused by missing air valves at high points.

Multi-Pump Parallel System Failures

Cause Analysis:

Single Pump Sudden Shutdown:

Remaining pumps experience abrupt flow surges (e.g., 50% flow increase in a 3-pump system if one fails).

Unsynchronized Pump Switching:

Flow disruption due to improper valve sequencing during backup pump activation.

Protective Measures:

Install flow-balancing valves or variable frequency drives (VFDs) for smooth flow transitions.

Use time-delay relays to stagger pump start/stop intervals (e.g., ≥30 seconds).

Temperature Changes and Phase Transitions

Cause Analysis:

Steam Condensation:

Vacuum formation in high-temperature steam pipelines triggers backflow (e.g., power plant drainage systems).

Fluid Phase Transition:

Liquid CO₂ vaporization due to pressure drops causes violent expansion (e.g., LNG pipelines).

Case Study:

LNG Pipeline Incident: Rapid valve closure caused localized vaporization, combining water and gas hammer effects, leading to pipe support detachment.

Operational Errors

Cause Analysis:

Incorrect Sequence:

Closing pumps before valves, causing backflow.

Rapid pipeline filling post-maintenance without staged venting.

Automation Failures:

SCADA system errors triggering abnormal valve actions.

Summary: Interconnected Causes and Cumulative Effects of Water Hammer

Cause Type Typical Scenarios Pressure Peak Range Cumulative Risk Example

Rapid Valve Closure Petrochemical, Water Supply 10–30 bar Fast closure + air entrapment → doubled pressure

Sudden Pump Stop High-Rise Buildings, Nuclear Plants 15–40 bar Pump stop + rigid pipes → weld cracks

Gas-Liquid Flow Irrigation, HVAC Systems 5–20 bar (with air) Air + long pipes → prolonged oscillations



How to Resolve Water Hammer After It Occurs?

① Passive Protection Devices (Installation Phase)

Pipe Material and Support Optimization

Flexible Pipes:

HDPE pipes (wave speed 300–500 m/s) absorb 30%–50% impact energy, suitable for low-pressure systems.

Composite pipes (e.g., steel-reinforced PE) balance elasticity and pressure resistance (≥16 bar).

Seismic Supports:

Spacing ≤3 meters with rubber pads or spring brackets, allowing axial displacement (±5 cm).

Water Hammer Arrestors

Device Type Working Principle & Selection Criteria Applicable Scenarios

Airbag Arrestors Pre-charged with nitrogen (80% system pressure), volume ≥5% of pipeline flow Pump outlets, mid-sections of long pipelines

Diaphragm Relief Valves Set to 1.3–1.5× working pressure, response time <50 ms High-pressure zones (e.g., pump outlets)

Pressure Tanks/Reservoirs Height ≥ max pressure head + 10% safety margin, volume ≥1% of pipeline capacity Hilly terrain water systems

② Emergency Response Procedures (Post-Water Hammer)

Rapid Response Steps

Isolate the System:

Close upstream/downstream valves to contain shockwaves.

Pressure Relief:

Open relief valves or low-point drain valves, maintaining a depressurization rate ≤0.5 bar/min to avoid secondary water hammer.

Venting and Refilling:

Slowly refill from the lowest point (velocity ≤0.3 m/s) while opening high-point air valves.

Damage Assessment and Repair

Inspection Methods:

Acoustic detection: Use leak detectors to locate vibration hotspots (ruptures/leaks).

Pressure testing: Pressurize sections to 50% design pressure for 30 minutes to check leaks.

Repair Priorities:

Replace ruptured pipes/flange gaskets;

Reinforce detached supports;

Recalibrate or replace faulty valves/sensors.

③ Scenario-Specific Solutions

Scenario 1: High-Rise Building Water Supply

Issue: Post-pump shutdown, lower-floor pressure ΔP reached 25 bar (150% over design).

Solution:

Install hydraulic slow-closing check valves (15-second closure) at pump outlets;

Add relief valves (set to 18 bar) on floors 10, 20, and 30;

Install float valves in rooftop tanks to prevent air ingress.

Result: ΔP reduced to 14 bar, extending system lifespan by 5 years.

Scenario 2: Long-Distance Oil Pipeline

Issue: Valve fast-closure caused water hammer and crude oil solidification risks.

Solution:

Use two-stage closure ball valves (2 seconds to 50% open, 30 seconds to fully closed);

Install airbag arrestors every 5 km (8% of pipe flow volume);

Apply electric heat tracing to maintain oil temperature above solidification point.

Result: Water hammer pressure dropped from 18 bar to 6 bar, avoiding pipeline blockages.



Professional Tips to Prevent Water Hammer

Use Slow-Closing Check Valves

Gradual closure minimizes pressure spikes from sudden flow stoppage.

Install Buffer Devices

Add airbag or spring buffers near check valves to absorb energy.

Maintain Steady Flow Velocity

Avoid abrupt flow changes using VFDs or controlled pump operation.

Optimize Pipeline Slope

Ensure natural flow in horizontal pipes to reduce backflow.

Regular Maintenance

Inspect check valves and seals; replace worn components.

Dual Check Valve Systems

Install dual valves in high-risk areas (e.g., long pipelines) for redundancy.

Install Relief Valves

Automatically release excess pressure to protect the system.

Additional Measures:

Vent air via high-point valves to reduce cavitation.

Inspect and repair damaged pipes, supports, or valves promptly.

In-Depth Case Studies

Case 1: Petrochemical Plant Steam Pipeline Incident

Background: DN300 steam pipeline (2 km) with 1-second electric valve closure during shutdown.

Consequences: Pipe supports detached, flange gasket failure, 12-hour production halt.

Improvements:

Replaced valve with two-stage closure (0.5 seconds to 50% open, 10 seconds to fully closed);

Added airbag arrestor (500 L, 6 bar nitrogen) at 1 km mark.

Result: Simulated ΔP reduced from 18 bar to 6 bar; no recurrence.

Case 2: High-Rise Building Water Supply System

Background: 40-story hotel with 200-meter pump head; original design lacked protection.

Issue: Post-pump shutdown pressure spiked to 25 bar (150% over design).

Retrofits:

Added hydraulic slow-closing check valve (15-second closure) at pump outlet;

Installed diaphragm relief valves (set to 18 bar) on floors 10, 20, and 30.

Result: Peak pressure dropped to 14 bar; system stabilized.
