Why Is Correct Installation of Check Valves Important?

2025-03-11

Why Is Correct Installation of Check Valves Important?

Proper installation of check valves is critical for the safe and efficient operation of pipeline systems. It not only prevents backflow and protects equipment but also mitigates water hammer risks through scientific design (e.g., slow-closing functions and buffer devices). Whether in industrial or civil systems, adhering to installation standards and selecting compatible valve types can significantly reduce failure rates and ensure long-term stable operation.

1. Preventing Medium Backflow and Ensuring System Safety

Check valves automatically close the valve disc to block reverse flow. Improper installation (e.g., incorrect positioning or mismatched types) may cause backflow, leading to the following issues:

Pump Damage: Backflow impacts pump impellers, causing cavitation, overheating, or mechanical failure.

Process Abnormalities: For example, backflow in chemical pipelines may trigger uncontrolled reactions, while backflow in heating systems disrupts heat distribution.

Contamination Risks: In water supply systems, backflow can allow sewage to infiltrate clean pipelines.

2. Protecting Critical Equipment and Extending Service Life

Pump and Pressure Source Protection:

Installing check valves at pump outlets prevents medium backflow during shutdown, reducing wear on bearings and seals.

Example: In fire pump systems, missing check valves can result in high-pressure water backflow damaging the pump.

Isolation Equipment Protection: When used with gate or butterfly valves, correct installation sequence (Pump → Check Valve → Isolation Valve) distributes impact forces, preventing valve damage from frequent operation.

3. Enhancing System Efficiency and Reducing Energy Consumption

Minimizing Energy Loss: Backflow causes medium recirculation, increasing pump load and energy consumption. Properly installed check valves ensure unidirectional flow, optimizing efficiency.

Stabilizing Flow and Pressure: For example, check valves in high-rise water supply systems prevent upper-level water pressure from backflowing to lower levels, maintaining balanced network pressure.

4. Preventing Water Hammer Effects and Avoiding Catastrophic Damage

Causes of Water Hammer: Pressure surges caused by rapid valve closure or sudden pump shutdowns may rupture pipelines or damage equipment.

Proper Anti-Hammer Measures:

Slow-Closing Check Valves: Gradually close the valve disc to reduce pressure spikes.

Buffer Devices: Absorb impact energy using air chambers or spring buffers.

Case Study: A chemical plant experienced pipeline rupture and production downtime due to unmitigated water hammer from missing slow-closing check valves.

5. Reducing Maintenance Costs and Downtime Risks

Avoiding Cascading Failures: Backflow can contaminate sensors, clog filters, and increase repair workloads.

Extending Valve Lifespan: Correct installation reduces wear from frequent operation or impact. Example: Swing check valves installed vertically in horizontal pipelines may jam, requiring frequent replacement.

6. Special Requirements in Industry Applications

Water Supply and Drainage Systems: Install check valves at pump room outlets and tank inlets to prevent contamination.

Chemical Pipelines: Use corrosion-resistant materials (e.g., Hastelloy check valves) and avoid installation in areas prone to sediment buildup.

Heating Systems: Install check valves at boiler outlets to prevent efficiency loss from cold/hot water mixing.

Detailed Explanation of Common Check Valve Installation Locations and Functions

1. At Pump or Pressure Source Outlets

Function: Prevents medium backflow from damaging pumps during shutdown.

Installation Sequence: Pump → Flexible Connector (Vibration Absorber) → Check Valve → Isolation Valve (e.g., Gate or Butterfly Valve).

Example: Fire pump systems require check valves at outlets to avoid high-pressure backflow damage.

2. Pipeline Starting Points

Function: Blocks backflow at the source to ensure unidirectional medium flow.

Scenarios: Starting points of chemical raw material pipelines, water supply system inlets.

3. Vertical Pipelines or Elevated Sections

Function: Prevents gravity-induced backflow, avoiding cavitation or pipe vibration.

Valve Selection: Prioritize lift check valves (suited for vertical movement in vertical pipelines).

Example: Install check valves at the top of high-rise water supply risers to prevent upper-level backflow.

4. High and Low Points in Horizontal Pipelines

Function:

High Points: Prevent gas accumulation causing backflow or cavitation.

Low Points: Avoid siphon-induced liquid backflow.

Example: Install check valves at steam pipeline high points to prevent condensate backflow.

5. Branch Pipeline Junctions

Function: Blocks branch medium backflow into the main pipeline, ensuring stable flow.

Scenarios:

Low-flow or low-pressure branches (e.g., cooling water branches).

Parallel pump systems with individual check valves at each pump outlet to prevent backflow into idle pumps.

6. Storage Tank or Reservoir Inlets/Outlets

Function: Prevents tank medium backflow or external contamination.

Example: Install check valves at sludge tank outlets in wastewater treatment plants to avoid pipe blockages.

7. Midpoints of Long-Distance Pipelines

Function: Segmented backflow prevention reduces water hammer risks.

Valve Selection: Slow-closing check valves (gradual closure minimizes pressure surges).

Applicable Locations for Different Check Valve Structures

Check Valve Type	Applicable Scenarios	Precautions
Lift Type	Vertical pipelines, high-pressure systems	Requires vertical installation; regular cleaning to prevent disc jamming.
Swing Type	Horizontal pipelines, high-flow systems	Avoid vertical installation to ensure free disc movement.
Butterfly Type	Space-constrained compact pipelines	Pair with buffer devices to mitigate water hammer risks.

Guidelines for Coordinated Installation of Check Valves, Gate Valves, Butterfly Valves, and Control Valves

1. Core Installation Principles

Protect Check Valves: Prioritize shielding check valves from impact and operational wear.

Isolation vs. Regulation: Use isolation valves (gate/butterfly) to shut off medium flow; control valves for flow adjustment.

Operational Accessibility: Ensure valve layouts facilitate maintenance and avoid overcrowding.

2.Typical Installation Sequences and Scenarios

Application Scenario	Valve Installation Sequence	Function Analysis
Pump Outlet Pipeline	Pump → Flexible Connector → Check Valve → Gate/Butterfly Valve	- Check valve adjacent to pump outlet prevents backflow. - Gate/butterfly valve isolates check valve for maintenance.
Flow Regulation Branch	Main Pipe → Gate/Butterfly Valve → Control Valve → Equipment	- Isolation valve cuts off branch flow; control valve adjusts flow independently.
Parallel Pump System	Each pump outlet: Pump → Flexible Connector → Check Valve → Gate/Butterfly Valve → Main Pipe	- Prevents backflow into idle pumps. - Isolation valves enable single-pump maintenance.
Long-Distance Pipelines	Pump → Check Valve → Gate Valve → Mid-Pipeline → Slow-Closing Check Valve → Butterfly Valve → Terminal Equipment	- Segmented check valves reduce water hammer risks. - Butterfly valves for quick shut-off; gate valves for long-term isolation.

3. Key Installation Details

Check Valve vs. Isolation Valve Priority:

Correct Sequence: Check valve upstream of isolation valve.

Reason: Isolation valve closure shields check valve from pressure surges (e.g., pump shutdowns or water hammer).

Consequence of Error: Downstream check valves suffer direct pressure impacts, leading to disc damage or seal failure.

Control Valve Positioning:

Place control valves downstream of isolation valves to ensure independent regulation.

Example: In heating systems, control valves should follow main pipe gate valves for branch-specific adjustments.

Butterfly vs. Gate Valve Applications:

Butterfly Valves: Ideal for quick operation in space-limited areas (e.g., firefighting systems).

Gate Valves: Suitable for full sealing or long-term open/closed states (e.g., chemical tank inlets/outlets).

Special Scenario Handling:

High-Pressure Systems: Add buffer tanks or relief valves downstream of check valves.

Clog-Prone Media: Install filters upstream of check valves (e.g., swing check valves in sewage systems).

Common Installation Errors and Solutions

Error Type	Consequence	Solution
Check valve downstream of isolation valve	Direct impact damages check valve; frequent repairs.	Correct sequence: Pump → Check Valve → Isolation Valve.
Control valve adjacent to pump outlet without isolation valve	Inability to service control valve without system shutdown.	Add butterfly/gate valve upstream for segment isolation.
Swing check valve in vertical pipeline	Disc jamming due to gravity; incomplete closure.	Replace with lift check valve or adjust pipeline to horizontal orientation.

Installation Diagrams

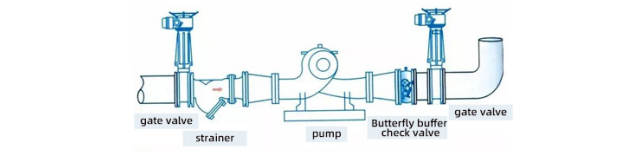

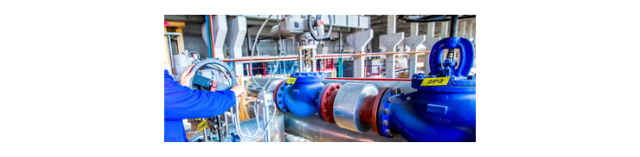

Scenario: Pump Outlet Pipeline

Illustration: Flexible connector absorbs vibrations, check valve prevents backflow, gate valve facilitates system isolation during maintenance.

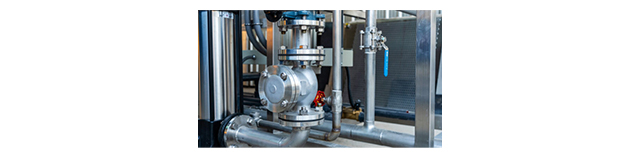

Scenario: Branch Regulation Pipeline

Illustration: Main pipe gate valve shuts off medium; control valve adjusts branch flow; check valve blocks branch backflow.

Installation Precautions

Avoid Frequent Cycling: Excessive valve operation accelerates wear and water hammer risks.

Match Valve and Pipeline Pressure Ratings: Select check valves compatible with system pressure to prevent damage.

Test Sealing Integrity: Conduct pressure tests post-installation to ensure zero leakage when closed.

Summary

Correct check valve installation and anti-hammer measures protect pumps, pipelines, and equipment while enhancing system stability and energy efficiency. By combining diagrams, step-by-step guidelines, and professional expertise, water hammer issues can be systematically resolved, extending equipment lifespan and reducing maintenance costs.
