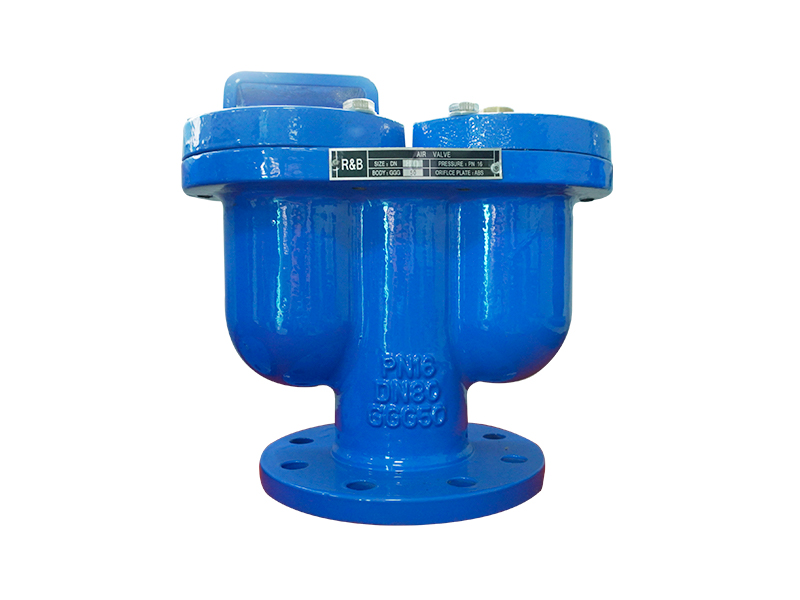

Doubleair Air Valve South America

The role of the exhaust valve:

In pipeline water hammer negative, air valve opening, so that the tube Daowai air into the pipeline, lest in the pipe produced larger negative pressure, play a protective role; operation of the pipeline system, when the pipeline internal pressure or temperature changes and dissolved in the water of the air is released, air valves will be the timely discharge, prevent pipeline information of gas and affect the operation of the pipeline system.

1.Advanced design with simple mechanism, strong float to prevent cracking during sudden water hammer and quick closure.

2. Self-moving mechanism to resist blow shut under higher air velocity even up to sonic velocity of air.

3.No arms or levers to prevent vibrating, bending, direct closure of the float.

4. Smooth cage outside of the float, keep float moving in specified guide rail.

5.Bottom rubber buffer for collision prevention, and drain easy with proper holes around the cage during vacuum.6.Outside screen will be an option for safety and prevent insects and birds in.

7.Fully fusion epoxy coated inside and outside of valve for long service life.

8.Good for distribution pipeline system, if for transmission pipeline with high impact water hammer, the anti shock device should be required.

Double air valves have three functions :

1.Evacuation of air at a high flow rate when pipes are being filled ;

2.Intake of air at a high flow rate when pipelines are being drained (protection of the network against a pressure drop in the pipelines in the case of a main being broken) ;

3.Degassing at a low flow rate when in operation.

Advantage:

1. High sealing performance

2. Light torque

3. Small flow resistances

4. Not easy to produce water hammer

Water conveyance pipeline during the initial water filling, regular maintenance of pipeline after water filling the air inside the pipeline to discharge, avoid pressure fluctuations.
