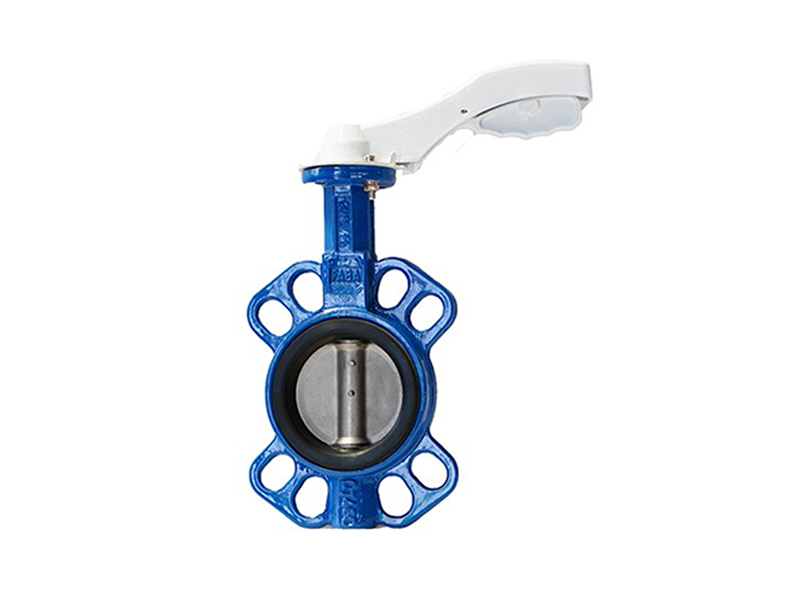

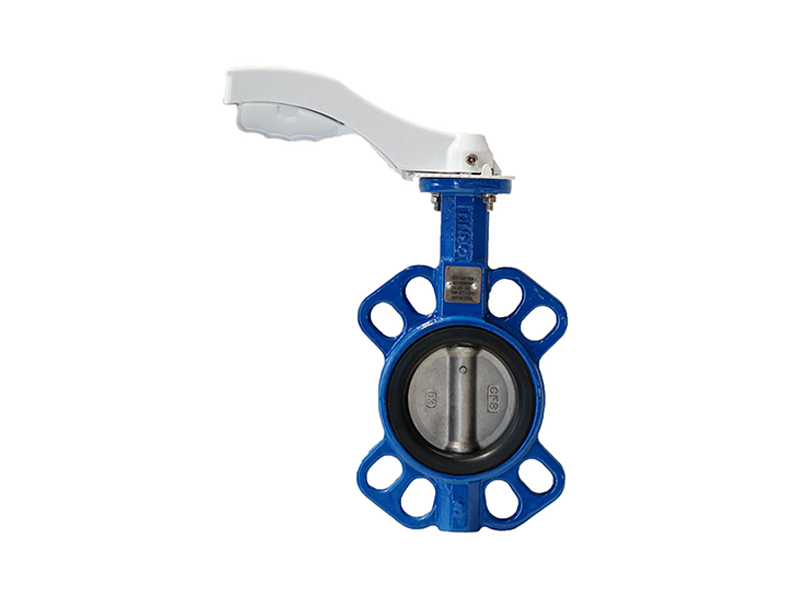

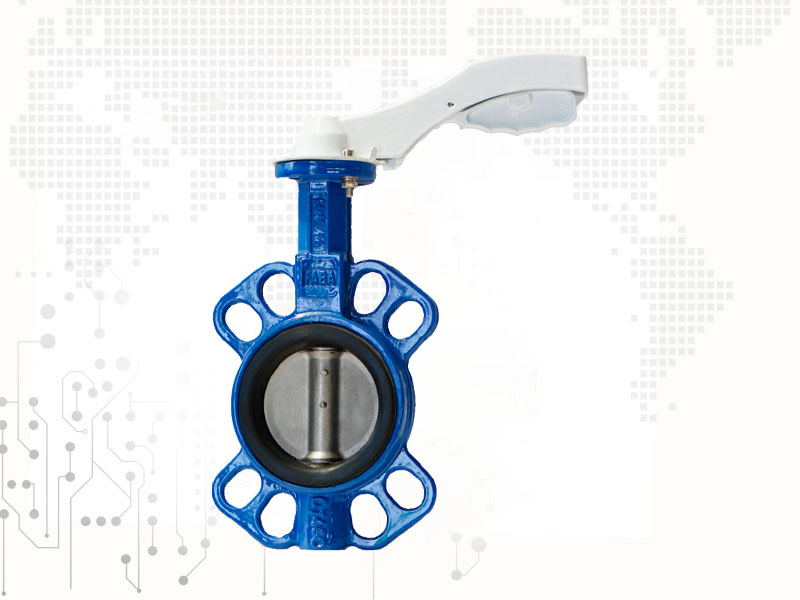

Multi standard aluminum stem butterfly valve
Features:
Size: DN40-DN 1200
Pressure: PN6, PN10, PN16, Class150,10K
Body Materials: Cast Iron, Ductile Iron, WCB , Stainless Steel
Seat Materials: NBR, EPDM, VITON, PTFE
Disc Materials: Ductile Iron, WCB, CF8,CF8M
Stem Materials: SS416, SS304, SS316
Operate: Manual, Worm gear, Pneumatic, Electric-Motorized
We're here to help:
Easy ways to get the answers you need.

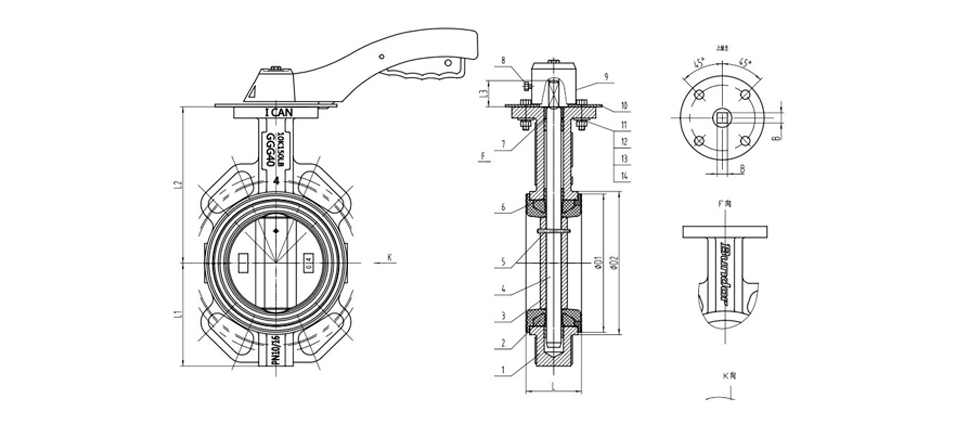

Parameter:
What is Multi standard aluminum stem butterfly valve?
Multi-standard aluminum stem butterfly valve is a type of butterfly valve that features an aluminum stem. The valve is designed to meet multiple international standards, such as ANSI, API, DIN, and JIS. The valve is used to regulate the flow of fluid or gas in a pipeline. It features a disc that rotates around a central axis to regulate the flow of fluid or gas through the valve.
The aluminum stem is lightweight, durable, and corrosion-resistant, making it an ideal choice for use in a variety of applications. The valve is commonly used in the chemical, petrochemical, oil and gas, and food and beverage industries, among others. The multi-standard design of the valve allows it to be used in various applications where different standards are required.
| DN | A | B | C | D | L0 | d0 | IS05211 | L | K | E | 4-ød | n-ø | D1 | &" | HxH |
| 50 | 161 | 80 | 42 | 52.9 | 266 | 12.6 | F07 | 30 | 90 | 70 | 4-ø10 | 4-ø18 | 125 | 90° | 9x9 |
| 65 | 175 | 89 | 44.7 | 64.5 | 266 | 126 | F07 | 30 | 90 | 70 | 4-ø10 | 4-ø18 | 145 | 90° | 9x9 |
| 80 | 181 | 95 | 45.2 | 78.8 | 266 | 126 | F07 | 30 | 90 | 70 | 4-ø10 | 4-ø18 | 160 | 45° | 11x 11 |
| 100 | 200 | 114 | 52 | 104 | 266 | 15.77 | F07 | 30 | 90 | 70 | 4-ø10 | 4-ø18 | 180 | 45° | 11x11 |
| 125 | 213 | 127 | 54.5 | 123.3 | 266 | 18.92 | F07 | 30 | 90 | 70 | 4-ø10 | 4-ø18 | 210 | 45° | 14x 14 |
| 150 | 226 | 139 | 55.8 | 155.1 | 266 | 1892 | F07 | 30 | 90 | 70 | 4-ø10 | 4-ø22 | 240 | 45° | 14x 14 |
| 200 | 260 | 175 | 60.6 | 2025 | 355 | 22.1 | F10 | 40 | 125 | 102 | 4-ø12 | 4-ø22 | 295 | 30° | 17x17 |
| 250 | 292 | 203 | 65.6 | 2505 | 505 | 28.45 | F10 | 40 | 125 | 102 | 4-012 | 4-ø26 | 355 | 30° | 22x22 |
| 300 | 337 | 242 | 76.9 | 301.6 | 505 | 31.6 | F10 | 40 | 140 | 102 | 4-ø12 | 4-ø26 | 410 | 30° | 22x22 |
WESDOM Advantages
1.WESDOM patent products, patent certification
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The product has an independent identity to ensure traceability
Each wesdom product has its own unique identification number, to ensure product traceability.
3.Provide material inspection report
All wesdom products can provide the material inspection report of the main parts.
4.One-stop service
One-stop service, we not only supply high quality products, also supply solutions and after-sales service.
5.WESDOM has a lot of project experience
We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.
6. WESDOM has a strict quality control system
WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.
Quality Control Process
Standards&Features:
Advantages of Multi standard aluminum stem butterfly valve:
1. Versatility:
These valves are designed to meet multiple international standards, allowing them to be used in a wide range of applications.
2. Lightweight:
The aluminum stem is lightweight, making the valve easier to handle and install.
3. Corrosion-resistant:
Aluminum is highly resistant to corrosion, making it an excellent choice for use in harsh environments.
4. Low maintenance:
Butterfly valves are low maintenance and require minimal upkeep.
5. Easy to operate:
Butterfly valves are easy to operate, and the disc can be quickly opened or closed using a lever or gear operator.
6. Cost-effective:
Multi-standard aluminum stem butterfly valves are typically less expensive than other types of valves, making them a cost-effective option for many applications.
7. High flow rates:
The disc design of butterfly valves allows for high flow rates, making them ideal for applications where a large volume of fluid or gas needs to be moved.
Case:
WESDOM Group specializes in pipeline fluid systems: R&D, production and sales of valves, pipe fittings, water meters, flow meters, etc. The products cover cast iron, cast steel, stainless steel, copper, plastics and other materials, which are widely used in hydropower stations, heat, buildings, Water supply and drainage, petroleum, chemical industry, electric power, medical and other fields.
1. There is a professional technical team, and quality is guaranteed
2. Independent factory, more favorable price
3. Extensively trained employees are well-versed in all aspects of flow control technology
Application:
Multi-standard aluminum stem butterfly valves are used in a wide range of applications, including:
1. Chemical processing:
These valves are commonly used in the chemical industry to regulate the flow of corrosive liquids and gases.
2. Petrochemical industry:
Butterfly valves are used in the petrochemical industry to control the flow of various fluids and gases.
3. Oil and gas industry:
Multi-standard aluminum stem butterfly valves are commonly used in the oil and gas industry to control the flow of crude oil, natural gas, and other fluids.
4. Water treatment:
These valves are used in water treatment plants to control the flow of water and other fluids.
5. HVAC systems:
Butterfly valves are used in heating, ventilation, and air conditioning (HVAC) systems to regulate the flow of air and other gases.
6. Food and beverage:
These valves are used in the food and beverage industry to control the flow of liquids and gases during processing.
7. Pharmaceutical industry:
Multi-standard aluminum stem butterfly valves are used in the pharmaceutical industry to regulate the flow of fluids and gases during the manufacturing process.
