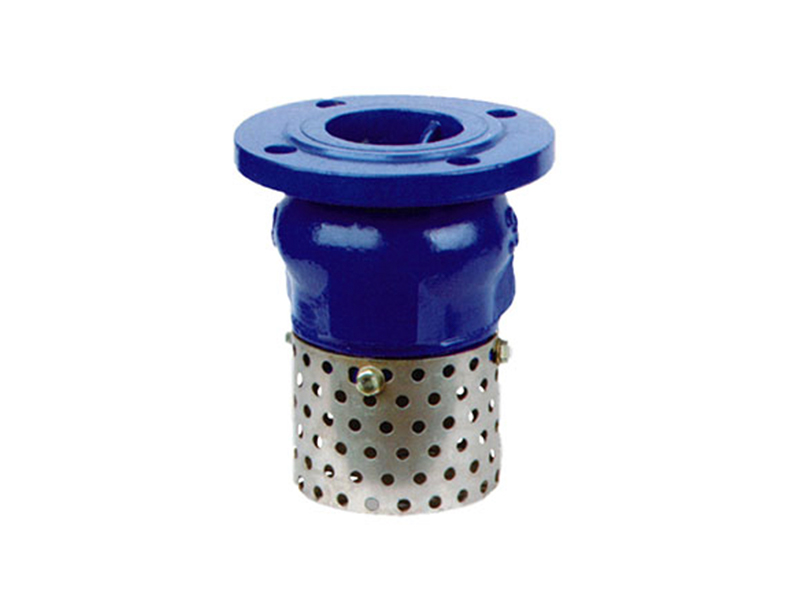

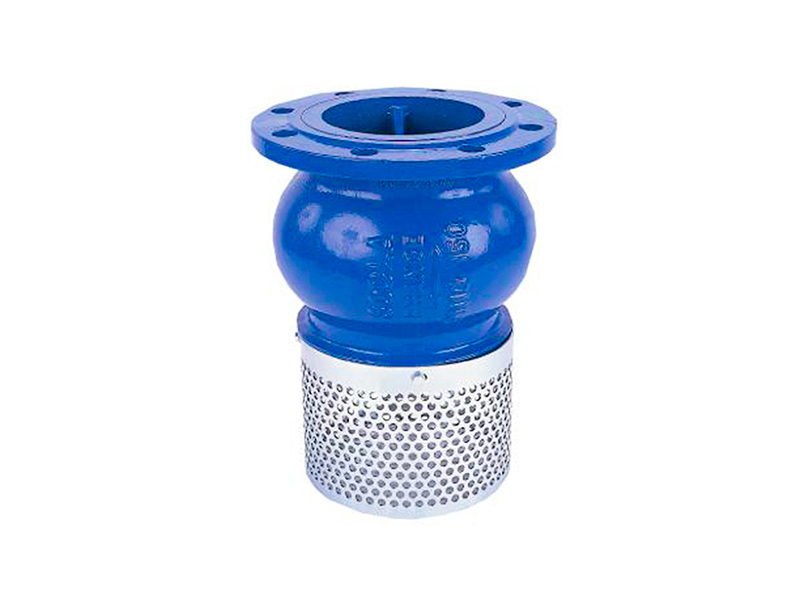

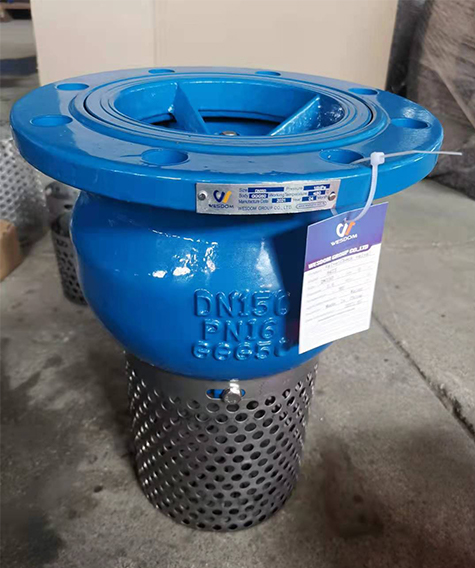

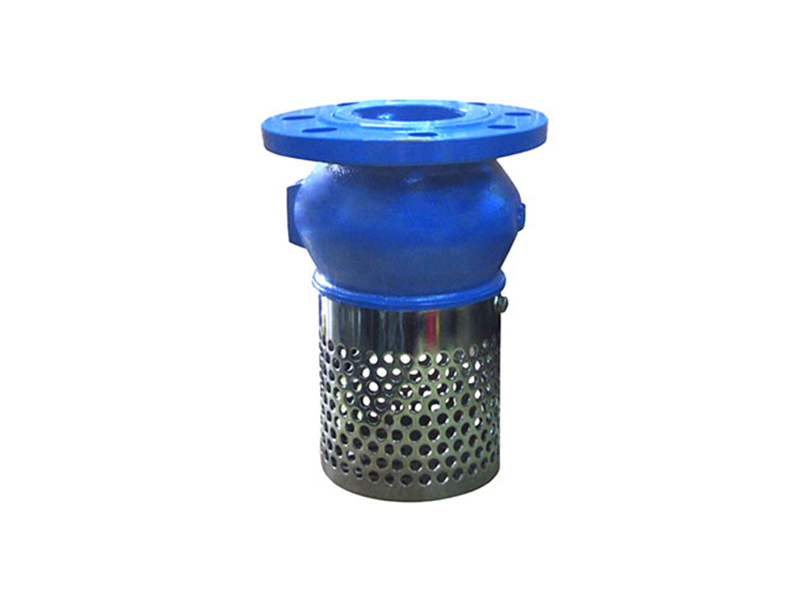

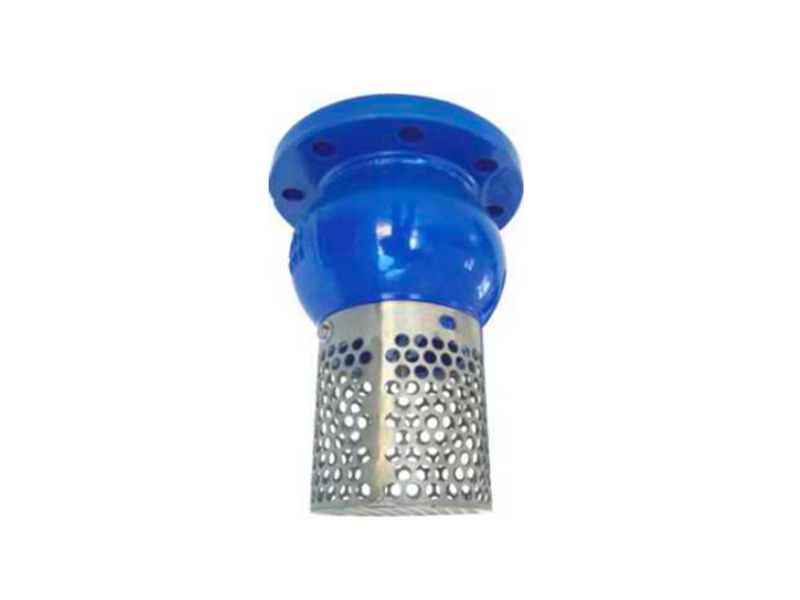

Foot check valve
Features:
Size: 2”-12”
Pressure Rating: PN10/PN16/10K/150LB
Material: Ductile Iron
Design Standard: EN 122334.EN1074
Inspection Standard: BS EN12266
Application medium: Clean Water , Sewage
Application Temperature: -5C-85℃
We're here to help:
Easy ways to get the answers you need.

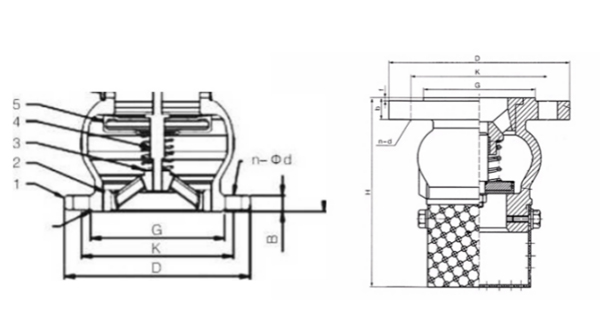

Parameter:

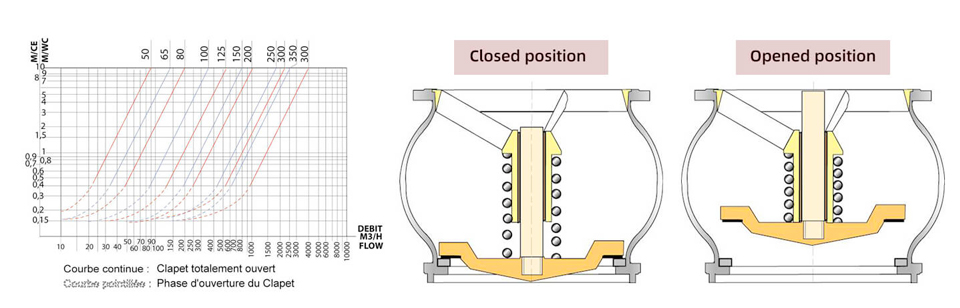

The axial foot check valve Type 302 is designed for the equipment of the pumping station. When the pumping stops, the disc is quickly closed by spring pressure before any overpressure occurs due to the return flow.
|
NPS |
DN |
D |
K |
G |
H |
B |
n-ΦdPN10 |
n-Φd PN16 |
|
2 |
50 |
165 |
125 |
102 |
190 |
19 |
4-Φ19 |
4-Φ19 |
|
2 1/2'' |
65 |
185 |
145 |
122 |
210 |
19 |
4-Φ19 |
4-Φ19 |
|
3 |
80 |
200 |
160 |
138 |
240 |
19 |
8-Φ19 |
8-Φ19 |
|
4 |
100 |
220 |
180 |
158 |
250 |
19 |
8-Φ19 |
8-Φ19 |
|
5 |
125 |
250 |
210 |
188 |
310 |
19 |
8-Φ19 |
8-Φ19 |
|
6 |
150 |
285 |
240 |
212 |
370 |
19 |
8-Φ23 |
8-Φ23 |
|
8 |
200 |
340 |
295 |
268 |
450 |
20 |
8-Φ23 |
12-Φ23 |
|
10 |
250 |
405 |
355 |
320 |
470 |
22 |
12-Φ23 |
12-Φ28 |
WESDOM Advantages
1.WESDOM patent products, patent certification
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The product has an independent identity to ensure traceability
Each wesdom product has its own unique identification number, to ensure product traceability.
3.Provide material inspection report
All wesdom products can provide the material inspection report of the main parts.
4.One-stop service
One-stop service, we not only supply high quality products, also supply solutions and after-sales service.
5.WESDOM has a lot of project experience
We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.
6. WESDOM has a strict quality control system
WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.
Quality Control Process
Standards&Features:
Features:

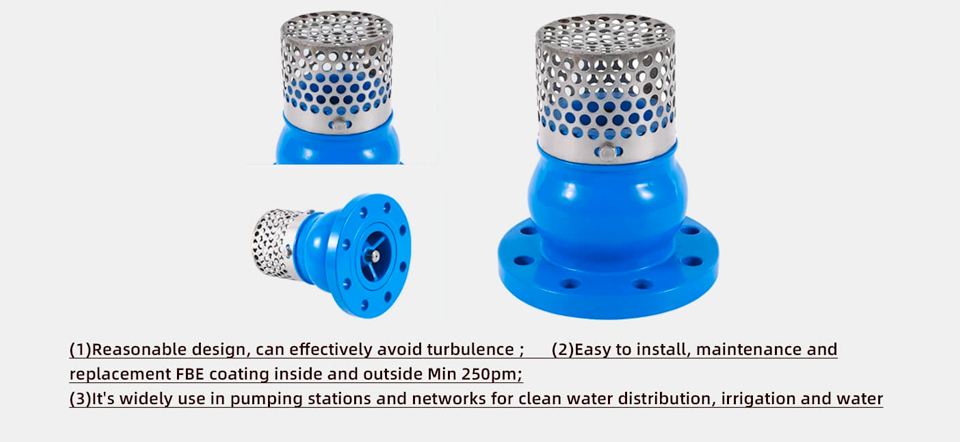

(1)Reasonable design, can effectively avoid turbulence;
(2)Easy to install, maintenance and replacement FBE coating inside and outside Min 250卩：
(3)It’s widely use in pumping stations and networks for clean water distribution, irrigation and water treatment.
(4)Easy to install, maintenance and replacement FBEcoating inside and outside Min 250u;
(5)lt’s widely used in pumping stations and networks for clean water distribution, irrigation and water treatment;
(6)Reasonable design. can effectively avoid turbulence.

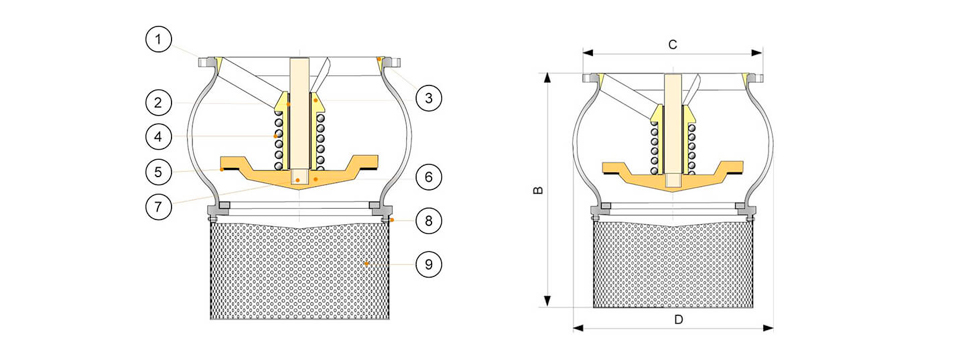

Characteristics:
(1)Axial disc foot valve for protection and non-return on pumping equipment for either clean and/or filter water
(2)High hydraulic performance
(3)Total sealing (from 3 m.w.c. in vertical position)
(4)Silent operation
(5)May be fitted in horizontal or vertical position
(6)Excellent water hammer performance
(7)Anti-corrosion epoxy protection
(8)Easy maintenance
Case:
Bangladesh Mine Project
Main products:

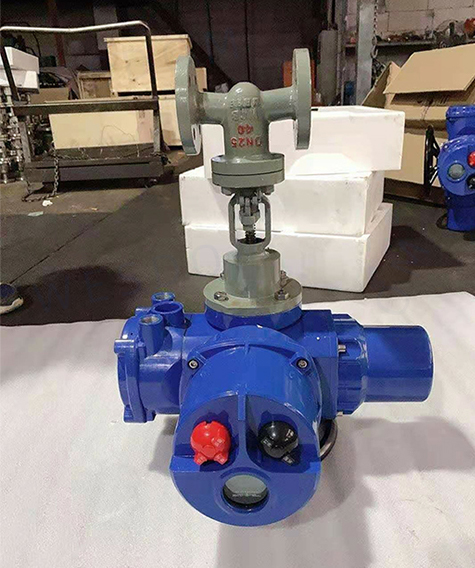

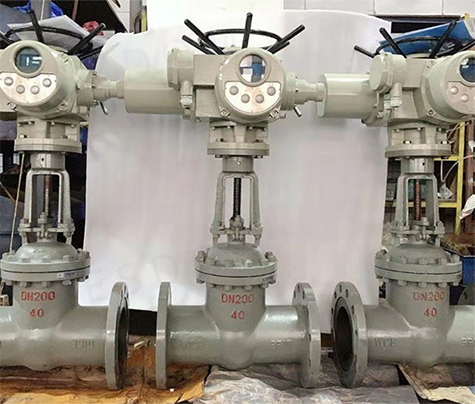

Foot Valves, Check Valves and Motorized gate valves.
project description:
WESDOM customizes the most suitable solutions for customers according to the actual needs of customers’ working conditions;
Client feedback:
WESDOM products are of high quality, Now all products have well installed on site.

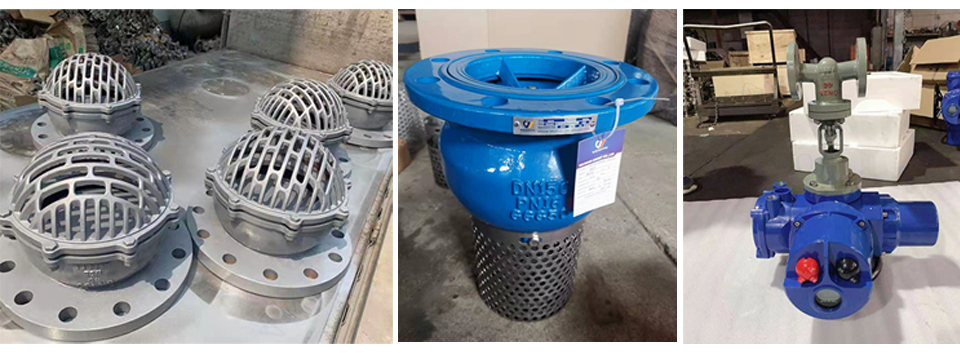

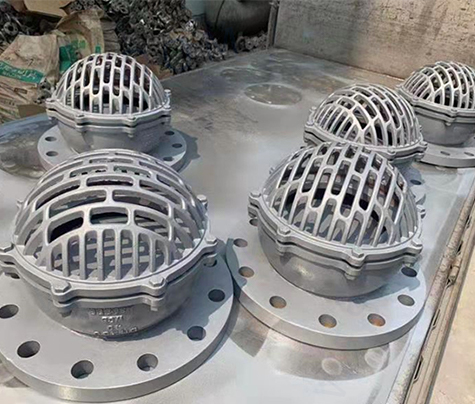

Project pictures:
Application:
Foot valve application range:
The bottom valve has a reasonable design, advanced manufacturing technology, and easy installation, use, and maintenance. And has the advantages of small friction resistance, long service life, energy saving, etc.
It is widely used in petrochemical, chemical, textile, printing and dyeing, metallurgy, mining, drainage, and irrigation as supporting water pump facilities.
