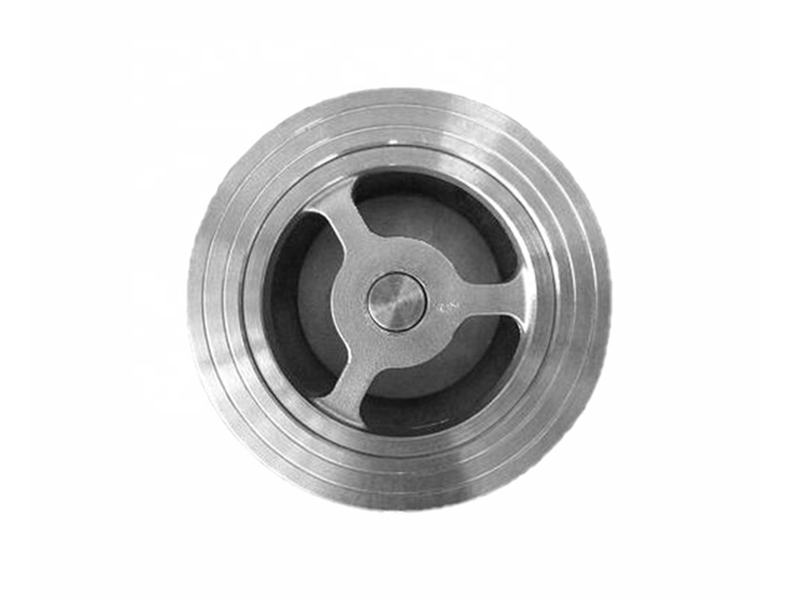

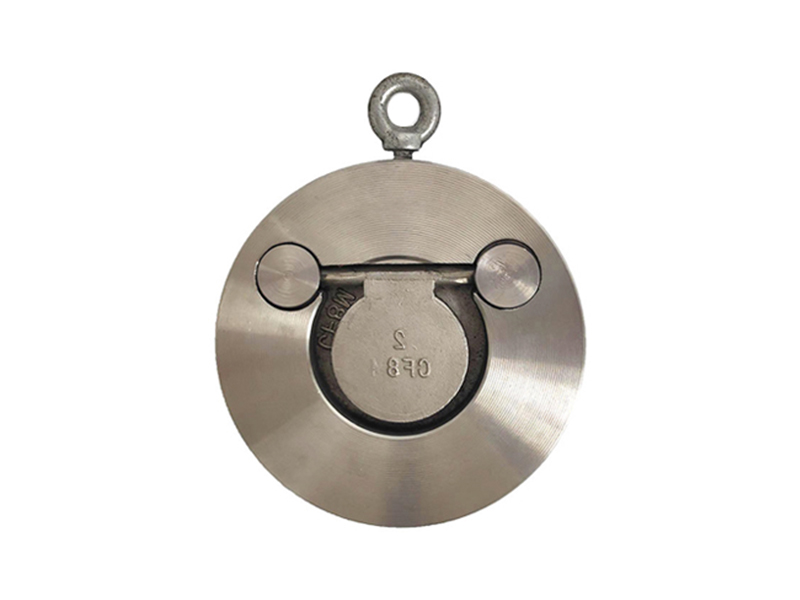

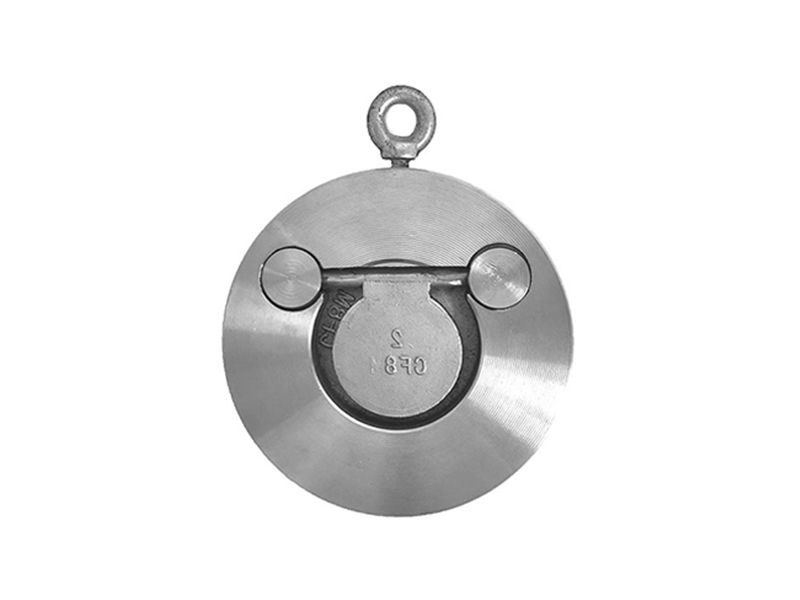

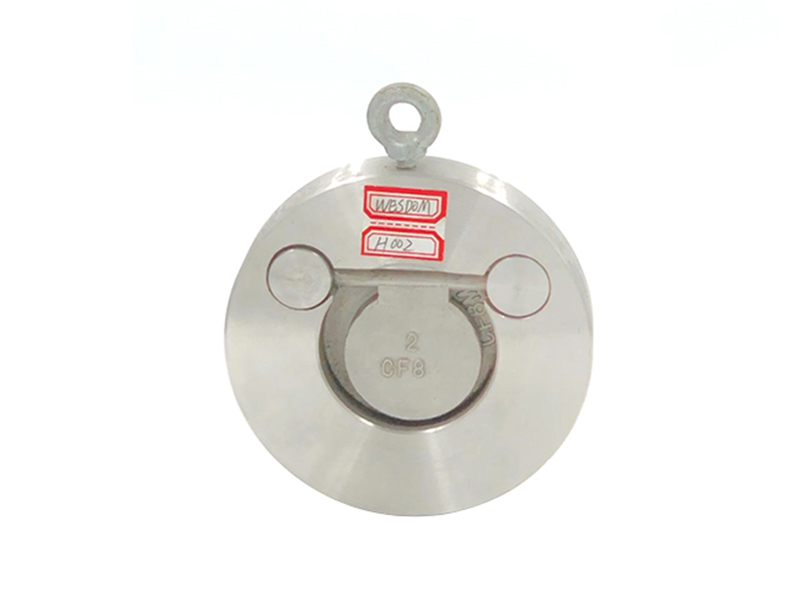

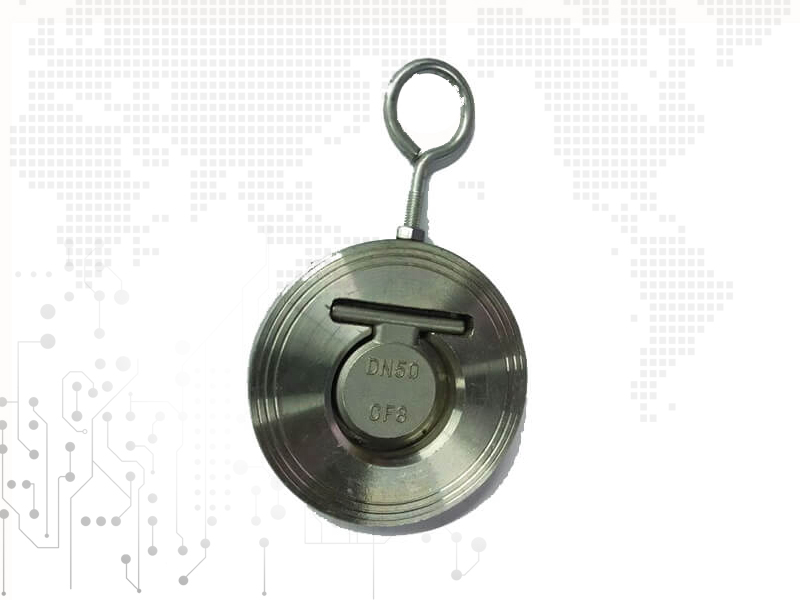

Single Chip Check Valve H74W
Features:
Size: 2”~20”
Pressure Rating: PN10~PN40
Material: SS304, SS316
Design Standard: Appropriate standard
Inspection Standard: Appropriate standard
Application medium: Water, Oil, Chemical
Application Temperature: -20~400 °C
We're here to help:
Easy ways to get the answers you need.
Parameter:
| DN（mm） | L | PN10 | PN16 | PN25 | PN40 | |
| Ⅰ | Ⅱ | D | D | D | D | |
| 50 | 14.5 | 22 | 109 | 109 | 109 | 109 |
| 65 | 14.5 | 22 | 129 | 129 | 129 | 129 |
| 80 | 14.5 | 22 | 144 | 144 | 144 | 144 |
| 100 | 14.5 | 24 | 164 | 164 | 170 | 170 |
| 125 | 16 | 26 | 194 | 194 | 198 | 198 |
| 150 | 19 | 29 | 220 | 220 | 228 | 228 |
| 200 | 29 | 43 | 275 | 275 | 288 | 293 |
| 250 | 29 | 43 | 330 | 333 | 343 | 355 |
| 300 | 38 | 50 | 380 | 388 | 403 | 420 |
| 350 | 41 | 52 | 440 | 448 | 460 | 480 |
| 400 | 51 | 62 | 493 | 498 | 52 | 549 |
Standards&Features:
Product overview
The wafer check valve is composed of valve body, valve disc, valve stem, spring and other parts. It adopts wafer connection. Due to the short closing stroke of the valve disc and spring loading, the water hammer phenomenon can be significantly reduced. This valve is mainly suitable for urban, industrial and high-rise building water supply and drainage pipe networks. Because its structure length is shorter than general check valves, it is most suitable for places with installation restrictions.
| Main Part of Material | |||
| No. | Accessory name | Material | |
| 1 | Body | WCB=13Cr | SCS13 |
| 2 | Disc | WCB=13Cr | SCS13 |
| 3 | Torsion Spring | 0Cr18Ni9 | 0Cr18Ni9 |
1.Short length of the structure, the length of its structure is only the traditional flange back valve 1 / 4 to 1 / 8.
2.Small volume, light weight, the weight is only the traditional flange back valve 1 / 4 to 1 / 20 .
3.Quick closing valve, water hammer pressure.
4.Small, can be used in horizontal or vertical pipe, convenient installation.
5, Flow smooth, fluid resistance small.
6. Flexible action, good sealing performance.
7.Short stroke of the valve, valve off small impact force.
8. Integral structure, simple and compact, modeling beautiful 9 using long life, high reliability.
