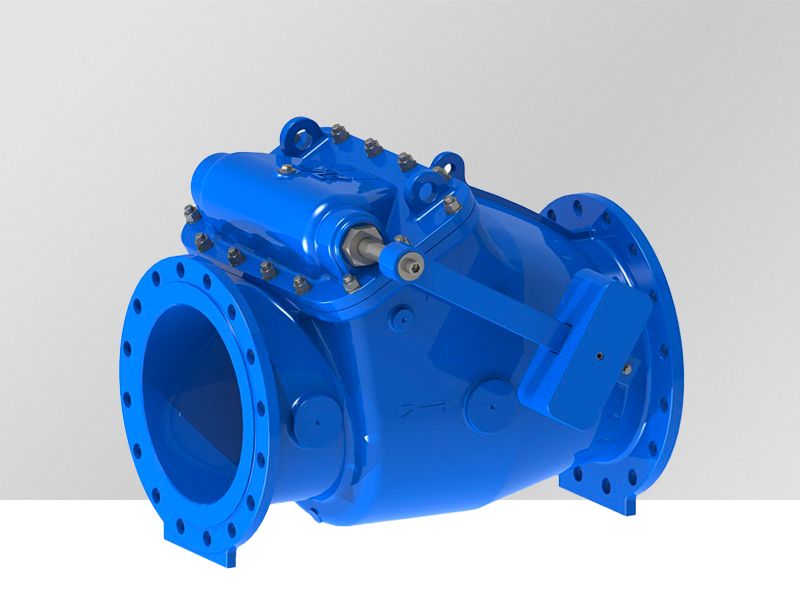

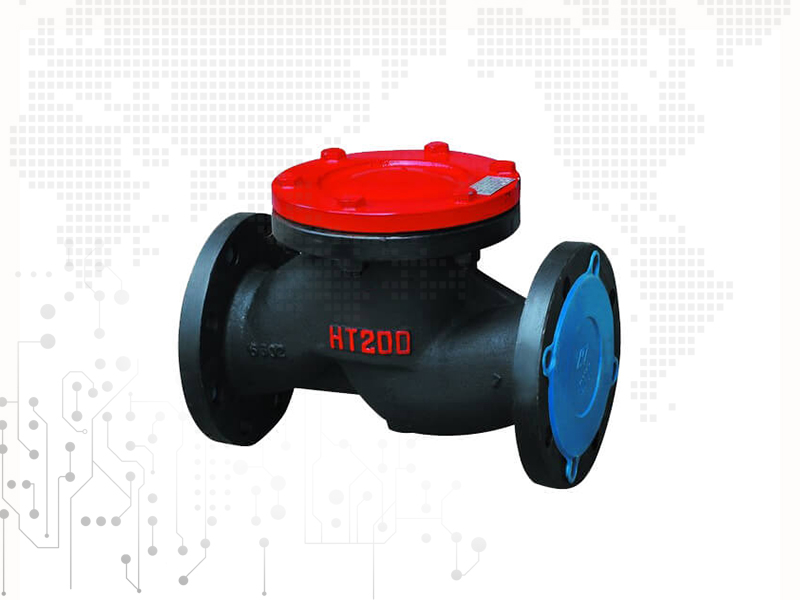

Swing Start Check Valve
Features:
Strength（water）（MPa):
1.5Mpa Sealing （water）（MPa）:
1.1Mpa Suitable medium:
Vapour Water Oil Water
We're here to help:
Easy ways to get the answers you need.
Parameter:
wesdom series 41 swing check valves come with both metal and resilient seats. Installed in pumping applications to prevent back flow they can be used for drinking water as well as waste water. The disc is connected to the shaft via a flexible bush that allows disc and valve seat to adjust exactly. All interior parts are stainless steel or coated with drinking water approved epoxy or EPDM. The series 41 valves are available with either closed bushings or protruding shaft end where a lever with a weight or a spring can be fitted to mitigate pressure surges.
|

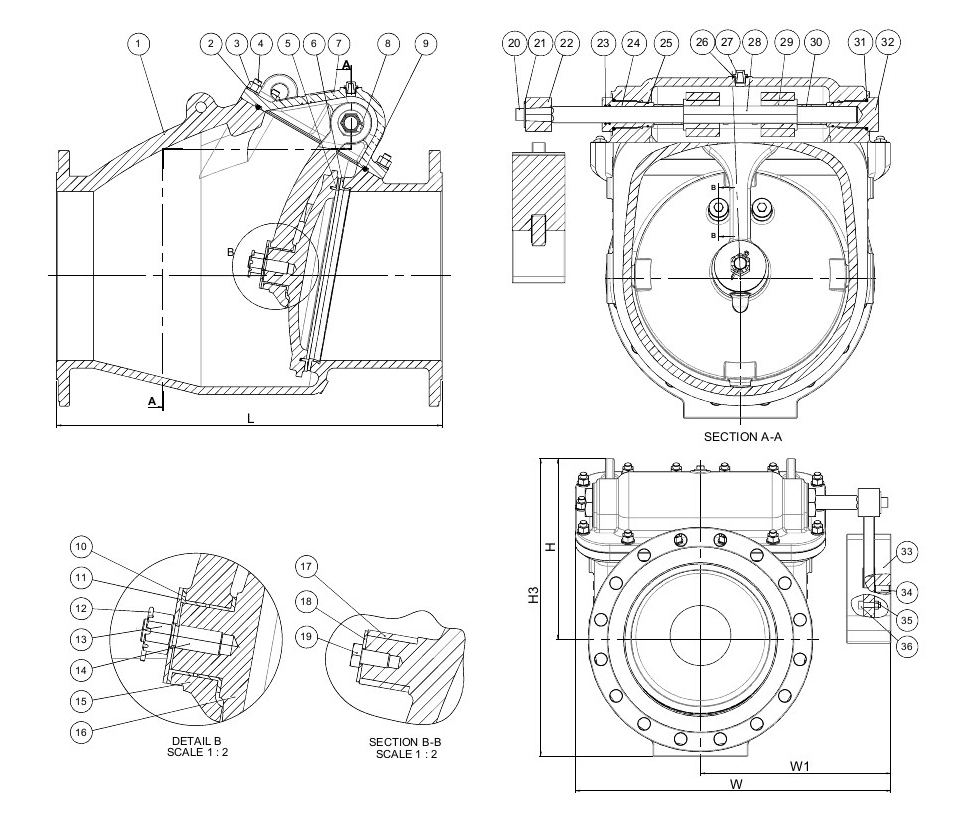

1 |
2 |
3 |
4 |
5 |
6 |
|
Body |
Washer |
Nut |
Stud bolt |
Face ring |
Seat ring |
|
Ductile iron GJS-500-7 (GGG-50) |
Stainless steel A2 |
Stainless steel A2 |
Stainless steel A2 |
Alu-bronze CC331G (AB1) |
Alu-bronze CC331G (AB1) |
|
7 |
8 |
9 |
10 |
11 |
12 |
|
Bonnet |
Bolt |
O-cord |
Guide bush |
Washer |
Split pin |
|
Ductile iron GJS-500-7 (GGG-50) |
Stainless steel A2 |
EPDM rubber |
EPDM rubber |
Stainless steel A2 |
Stainless steel A2 |
|
13 |
14 |
15 |
16 |
17 |
18 |
|
Castle nut |
Stud bolt |
Hinge arm |
Disc |
Protective bush |
Washer |
|
Stainless steel A2 |
Stainless steel A2 |
Ductile iron GJS-500-7 (GGG-50) |
Ductile iron GJS-500-7 (GGG-50) |
EPDM rubber |
Stainless Steel 1.4401 (316) |
|
19 |
20 |
21 |
22 |
23 |
24 |
|
Bolt |
Bolt |
Washer |
Lever |
O-ring |
Bushing |
|
Stainless steel A2 |
Stainless steel A2 |
Stainless steel A2 |
Ductile iron GJS-500-7 (GGG-50) |
EPDM rubber |
Brass, DZR CW602N (CZ132) |
|
25 |
26 |
27 |
28 |
29 |
30 |
|
O-ring |
Gasket |
Air plug |
Shaft |
Connector |
Spacer |
|
EPDM rubber |
Polyamide |
Stainless steel |
Stainless steel 1.4021 (420) |
Stainless steel 1.4408 |
Stainless Steel 1.4401 (316) |
|
31 |
32 |
33 |
34 |
35 |
36 |
|
O-ring |
Bushing, closed |
Weight |
Set screw |
Nut |
Bolt |
|
EPDM rubber |
Brass, DZR CW602N (CZ132) |
Ductile iron GJS-500-7 (GGG-50) |
Stainless steel A2 |
Stainless steel A2 |
Stainless steel A2 |
| Type | Nominal DN（mm） | Measurement(mm) | ||||||
| H41T-16 H41W-16 H41H-16 | L | D | D1 | D2 | b-f | Z-Фd | H | |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-Ф18 | 110 | |
| 50 | 230 | 160 | 125 | 100 | 20-3 | 4-Ф18 | 120 | |
| 65 | 290 | 180 | 145 | 120 | 20-3 | 4-Ф18 | 130 | |
| 80 | 310 | 195 | 160 | 135 | 22-3 | 4-Ф18 | 140 | |
| 100 | 350 | 215 | 180 | 155 | 22-3 | 8-Ф18 | 170 | |
| 125 | 400 | 245 | 210 | 185 | 24-3 | 8-Ф18 | 192 | |
| 150 | 480 | 280 | 240 | 210 | 24-3 | 8-Ф23 | 215 | |
| 200 | 495 | 335 | 295 | 265 | 26-3 | 8-Ф23 | 240 | |
| 250 | 600 | 390 | 350 | 320 | 28-3 | 12-Ф23 | 265 | |
| 300 | 698 | 440 | 400 | 368 | 28-4 | 12-Ф23 | 350 | |
| 350 | 800 | 500 | 460 | 428 | 30-4 | 16-Ф23 | 405 | |
| 400 | 900 | 565 | 515 | 482 | 32-4 | 16-Ф25 | 430 | |
| 500 | 978 | 670 | 620 | 585 | 34-4 | 20-Ф25 | 480 | |
| 600 | 1295 | 780 | 725 | 685 | 36-5 | 20-Ф31 | 622 | |
Standards&Features:
Features
1.Metal seat in high strength alu-bronze
2.Shaft fitted in the bonnet allows for easy maintenance without removing valve from pipeline
3.Shaft material 1.4021 (AISI 420) stainless steel
4.Position indicating lever with an adjustable weight that aids the disc in closing quickly to reduce water hammer
5.Hinge of ductile iron coated with drinking water approved epoxy, firmly tightened around the shaft to eliminate play
6.Bonnet gasket in a groove between bonnet and body to prevent blow-out
7.All seals and coatings with contact to the fluid are approved for drinking water - coating is blue, 250µm fusion bonded epoxy
8.Disc mounted in a flexible rubber bushing which allows it to tilt slightly in all directions and adjust exactly to the valve seat
9.Bosses on each side of the valve seat allow for installation of pressure gauge, by-pass, etc.
10.Metal seated swing check valve with lever and weight for drinking water and neutral liquids to max. 70°C
| Parts ;name | H41T-16 | H41W-16 | H41H-16 | |||||
| Disc | Grey ;iron ;Brass | Grey ;iron | Grey ;iron ;Rubber | |||||
| Valve ;body ;Bobbet | Grey ;iron | Grey ;iron | Grey ;iron | |||||
| Seal ;ring ; | Brass | Grey ;iron | Rubber | |||||
| Rod ;pin,Axle ;pin | Carbon ;steel ;Ductile ;iron | l ; | ||||||
Case:
Test/Approvals
Hydraulic test according to EN 1074-3/ EN12266 |
Seat: 1.1×PN (in bar), Body: 1.5×PN (in bar).
Approved according to ACS-France
Belgaqua approved
Standards
Designed according to EN 1074 - 3
Face-to-face dimension according to EN 558 Table 2 Basic Series 48
Standard flange drilling to EN1092-2 (ISO 7005-2), PN10/16
Application:
1.Chemical;
2.Pharmaceutical;
3.Chemical fertilizer;
4.Electricity and other pipeline.
