Pneumatic Wafer Butterfly Valve
Features:
Size: 2''-44''/DN50-DN1200
Pressure Rating: PN10-PN40,150LB-300LB
Material: A216 GR.WCB, SS304, SS316
Design Standard: API609,ASME B16.34,BS5155
Inspection Standard: API598,EN12266
Application medium: Water, Oil and gas
Application Temperature: 0-200℃
We're here to help:
Easy ways to get the answers you need.
Parameter:
What is pneumatic wafer butterfly valve?
A pneumatic butterfly valve is a type of butterfly valve that uses compressed air or gas to operate the valve. It uses a wafer-style body design and operates by moving a disc or plate inside the valve to regulate or control the flow of fluids. The pneumatic actuator is attached to the valve and is responsible for opening and closing the valve. When the actuator receives a signal, it uses compressed air or gas to move the valve disc to the desired position. The pneumatic wafer butterfly valve is commonly used in industries where there is a need for rapid and precise fluid control, such as in chemical processing, water treatment, and food and beverage production.
The pneumatic butterfly valve equipped with the pneumatic actuator is relatively fast, and does not require workers to do it by themselves. It saves human resources and time to a large extent.
|

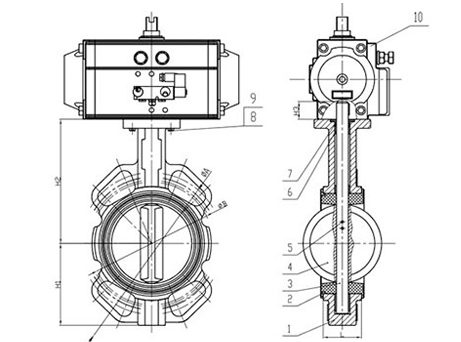

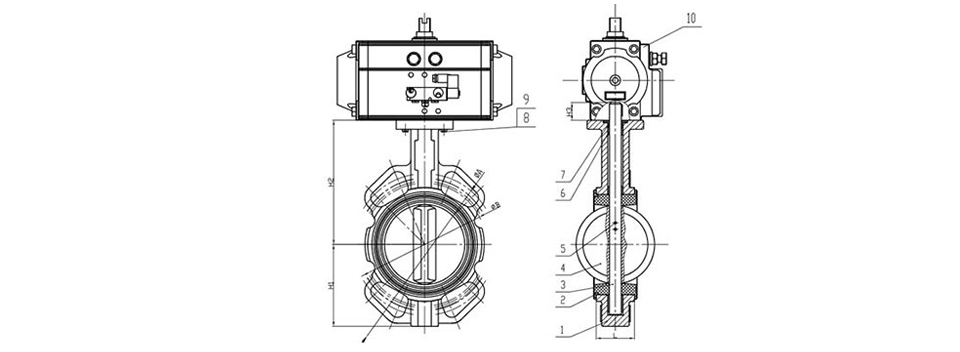

DN |
NPS（inch） |
H1 |
H2 |
H3 |
∅A |
∅B |
L |
|
DN50 |
2" |
75 |
129 |
32 |
125 |
105 |
43 |
|
DN65 |
2.5" |
82 |
136 |
32 |
145 |
127 |
46 |
|
DN80 |
3" |
99 |
153 |
32 |
160 |
145 |
46 |
|
DN100 |
4" |
110 |
167 |
32 |
190.5 |
165 |
52 |
|
DN125 |
5" |
125 |
193 |
32 |
216 |
200 |
56 |
|
DN150 |
6" |
145 |
209 |
32 |
241.3 |
225 |
56 |
|
DN200 |
8" |
170 |
251 |
40 |
298.4 |
280 |
60 |
|
DN250 |
10" |
210 |
280 |
45 |
361.9 |
350 |
68 |
|
DN300 |
12" |
240 |
315 |
45 |
431.8 |
400 |
78 |
|
DN350 |
14" |
260 |
348 |
45 |
476.2 |
445 |
78 |
|
DN400 |
16" |
295.5 |
392.5 |
52 |
540 |
510 |
102 |
|
DN450 |
18" |
401.5 |
322.5 |
52 |
585 |
565 |
114 |
|
DN500 |
20" |
451.5 |
362.5 |
64 |
650 |
620 |
127 |
|
DN600 |
24" |
541.5 |
428.5 |
70 |
770 |
725 |
154 |
|
DN700 |
28" |
Temporary Absence Of Data |
|||||
|
DN800 |
32" |
||||||
|
DN900 |
36" |
||||||
|
DN1000 |
40" |
||||||
|
DN1200 |
44 |
||||||
WESDOM Advantages
1.WESDOM patent products, patent certification
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The product has an independent identity to ensure traceability
Each wesdom product has its own unique identification number, to ensure product traceability.
3.Provide material inspection report
All wesdom products can provide the material inspection report of the main parts.
4.One-stop service
One-stop service, we not only supply high quality products, also supply solutions and after-sales service.
5.WESDOM has a lot of project experience
We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.
6. WESDOM has a strict quality control system
WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.
Quality Control Process
Standards&Features:
Advantages of the pneumatic butterfly valve!
1. Quick and easy operation
With the help of a pneumatic actuator, the valve can be opened and closed quickly and easily, allowing for efficient fluid control.
2. Precise control
The pneumatic actuator can be adjusted to provide precise control over the valve position, allowing for accurate regulation of fluid flow.
3. High reliability
Pneumatic butterfly valves are known for their high reliability and long service life, making them popular in many industries.
4. Low maintenance
Pneumatic valves require minimal maintenance, reducing downtime and saving on maintenance costs.
5. Versatile
Pneumatic butterfly valves can be used in a wide range of applications, including high-pressure and high-temperature environments.
6. Cost-effective
Pneumatic valves are often more cost-effective than other types of valves, making them a popular choice for many applications.
Case:

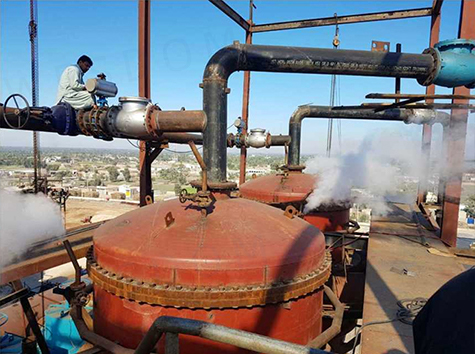

Pakistan AL-MORIZE Sugar Factory
Main products: Control/On-off butterfly valves, Control globe valves, Control ball valves, Angle seat valves.
The customer found WESDOM through Google advertisements, because he himself is relatively familiar with valves, so he sent the required products, product materials and required medium to our salesman in the international trade department, and the WESDOM salesman also promptly contacted with our factory's sales department and the engineering department, and then gave the customer the best price;
Client feedback:
WESDOM's valves are not only of high quality, but also of very good service and price. At the same time, you can also customize your own logo and color. The delivery time is very punctual. They are very satisfied with the cooperation with WESDOM, and they will choose WESDOM if you need it.

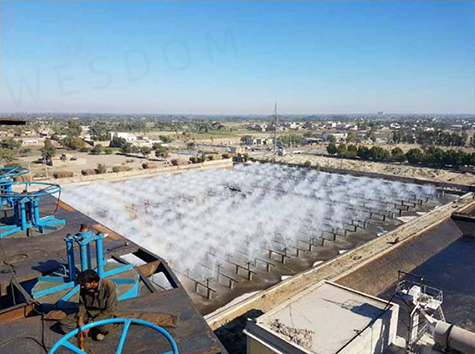

Project pictures:
