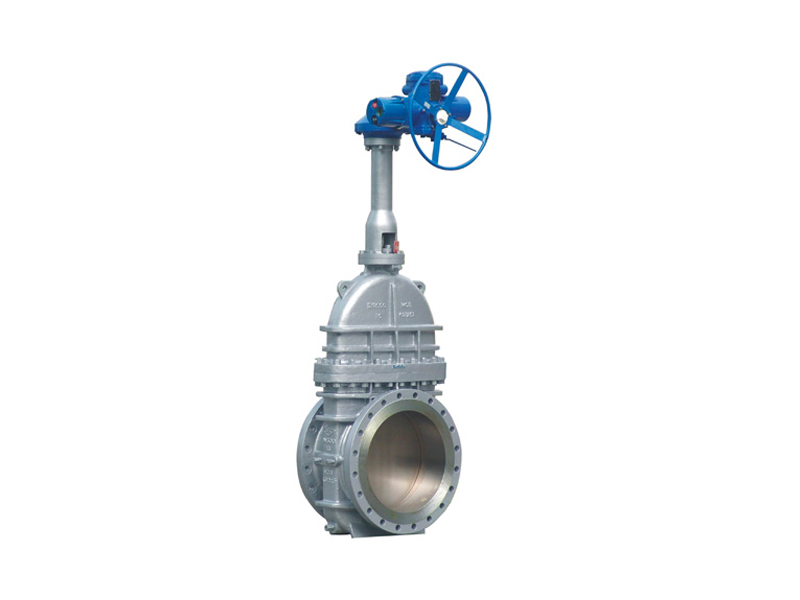

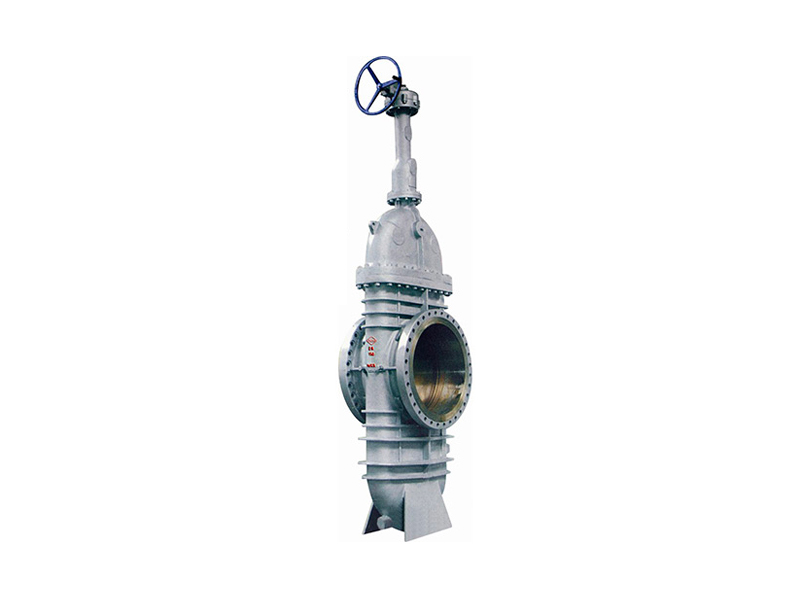

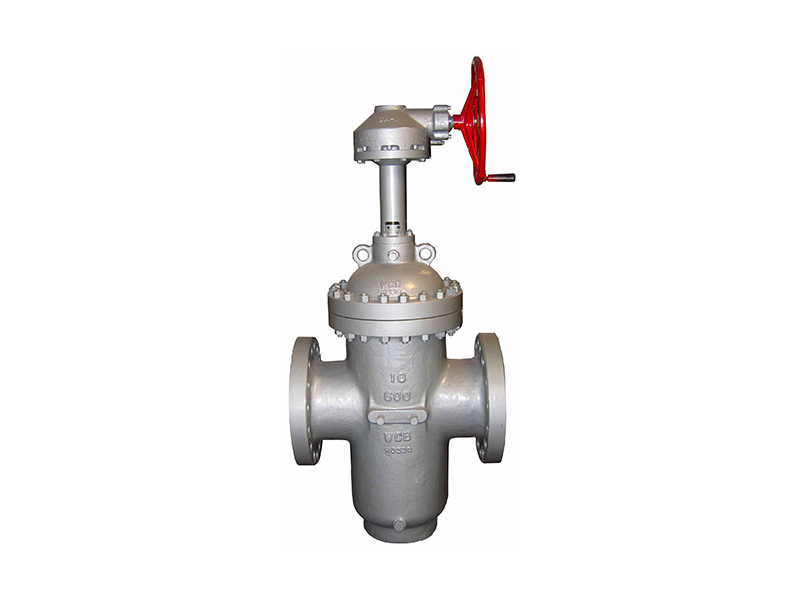

API slab Gate Valve
Features:
Size: NPS 2″~NPS 60″,CL150~CL1500
Design standard: API 6D
Inspection and test: API 6D
Flange connecting end: ASME B16.5/ASME B16.47
Main body material: WCB､LCB､WCC､WC6､WC9､CF8､CF8M､CF3､CF3M､A890 4A etc.
Application medium: Water, Oil and gas
Drive device: Handle, bevel gear, electric, pneumatic, etc.
We're here to help:
Easy ways to get the answers you need.

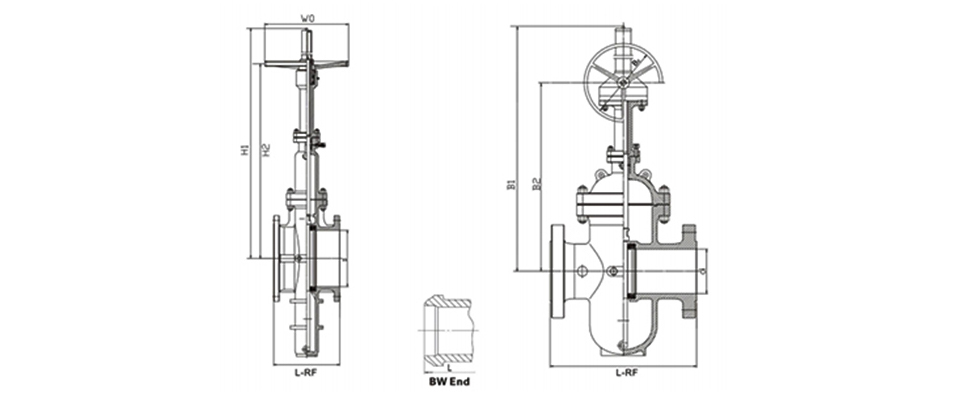

Parameter:
What is a slab gate valve?
Slab gate valves, also named “through conduit gate valves,” are manufactured and tested in accordance with the API-6d standard. This type of valve is very useful in gas, crude oil, and oil products transportation pipelines. The slab gate valve is through the conduit and is peggable. The slab gate valve has been designed to minimize pressure drop and catch foreign materials, such as slurries, into the disc cavity to keep the sealing surface areas clean.
Slab gate valve can be divided into a manual slab gate valve, a pneumatic slab gate valve, and an electric slab gate valve according to the operation. According to the use and use occasions, it can be divided into sluice gate valve with diversion hole, slab gate valve without diversion hole, oil plate slab gate valve, pipeline slab gate valve, and gas slab gate valve.
|
Design standard: |
API 6D |
|
Length of structure: |
API 6D |
|
Flange connecting end: |
ASME B16.5/ASME B16.47 |
|
Butt welding connecting end: |
ASME B16.25 |
|
Wall thickness: |
ASME B16.34 |
|
Inspection and test: |
API 6D |
|
Pressure and temperature rating: |
ASME B16.34 |
|
Product scope: |
NPS 2″~NPS 60″,CL150~CL1500 |
|
Main body material: |
WCB, LCB, WCC, WC6, WC9, CF8, CF8M, CF3, CF3M, A890 4A etc. |
|
Operator |
Handle, Bevel gear, Electric, Pneumatic, etc. |
WESDOM Advantages
1.WESDOM patent products, patent certification
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The product has an independent identity to ensure traceability
Each wesdom product has its own unique identification number, to ensure product traceability.
3.Provide material inspection report
All wesdom products can provide the material inspection report of the main parts.
4.One-stop service
One-stop service, we not only supply high quality products, also supply solutions and after-sales service.
5.WESDOM has a lot of project experience
We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.
6. WESDOM has a strict quality control system
WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.
Quality Control Process
Standards&Features:
The advantages of slab gate valves include:
1. Tight shut-off:
Slab gate valves provide a tight shut-off, preventing fluid from passing through the valve when closed. This makes them ideal for applications where leakage cannot be tolerated.
2. Low operating torque:
Slab gate valves require less operating torque than other types of gate valves, resulting in lower actuation costs and reduced wear on valve components.
3. High durability:
Slab gate valves are highly durable and can withstand high pressures, temperatures, and corrosive fluids, making them suitable for a wide range of industrial applications.
4. Low maintenance:
Slab gate valves require minimal maintenance due to their simple design and robust construction, resulting in lower maintenance costs and reduced downtime.
5. Versatility:
Slab gate valves can be used in a wide range of applications, including oil and gas, chemical processing, power generation, and water treatment.
6. Cost-effective:
Slab gate valves are generally less expensive than other types of gate valves, making them a cost-effective choice for many industrial applications.
Overall, the advantages of slab gate valves make them a popular choice for applications where tight shut-off, low operating torque, high durability, and low maintenance are important.
Case:

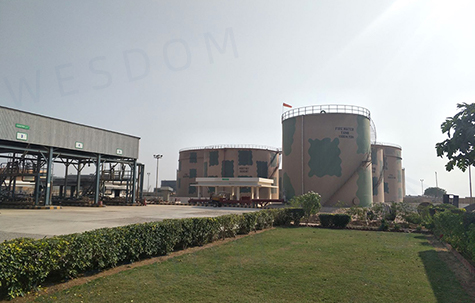

Zimbabwe LPG Project
Main products: API valves and fittings
WESDOM valves are applied in Zimbabwe LPG project. The high quality products won praise from customers!
Client feedback:
We received the goods in good condition. They are so nice keep it up.
Project pictures:
Application:
Slab gate valves are commonly used in a wide range of industrial applications, including:
1. Oil and gas industry:
Slab gate valves are used in oil and gas pipelines, drilling rigs, and refineries for controlling the flow of crude oil, natural gas, and other fluids.
2. Chemical processing:
Slab gate valves are used in chemical processing plants for controlling the flow of corrosive and abrasive fluids in pipelines, reactors, and other equipment.
3. Power generation:
Slab gate valves are used in power plants to control the flow of steam, gas, and other fluids in boilers, turbines, and other equipment.
4. Water treatment:
Slab gate valves are used in water treatment plants for controlling the flow of water, wastewater, and chemicals in pipelines, pumps, and other equipment.
5. Mining:
Slab gate valves are used in mining operations for controlling the flow of water, slurries, and other fluids in pipelines, pumps, and other equipment.
Overall, slab gate valves are well-suited for applications where tight shut-off, low operating torque, high durability, and low maintenance are important. They are widely used in many industrial processes and are essential to pipelines, pumps, and other equipment.
