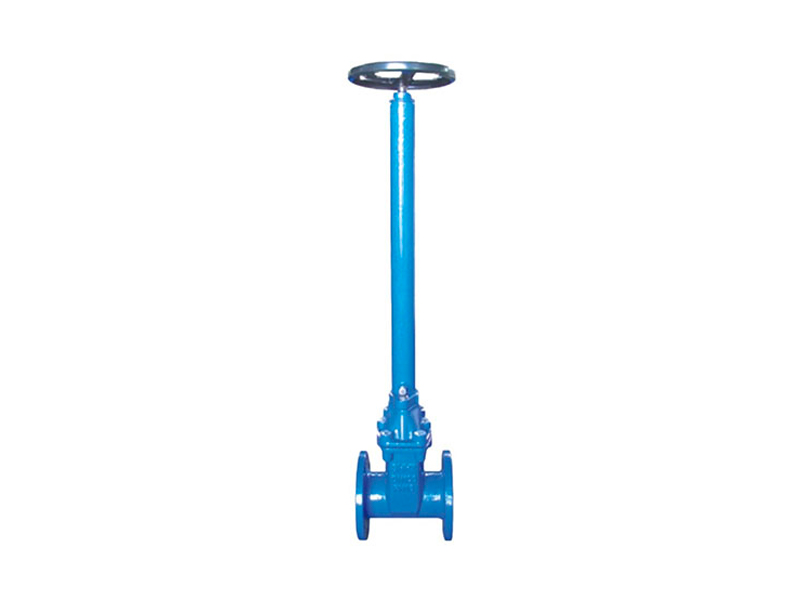

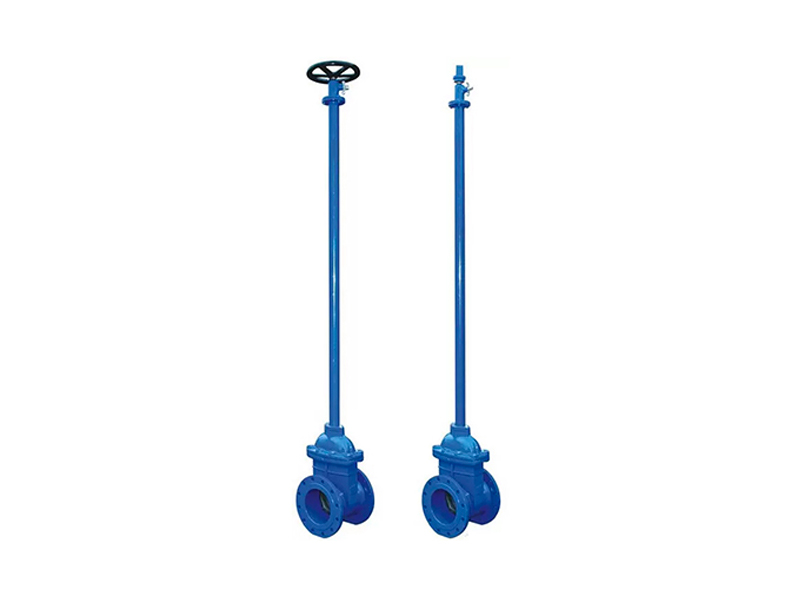

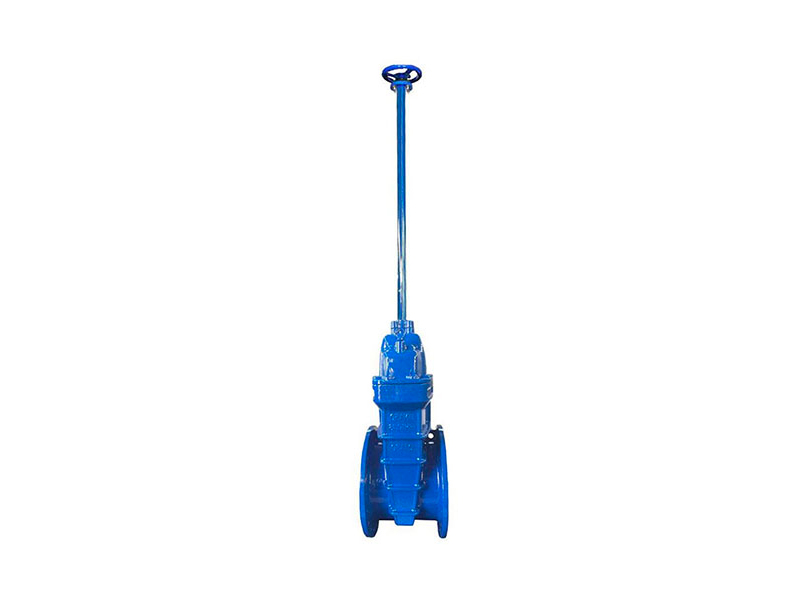

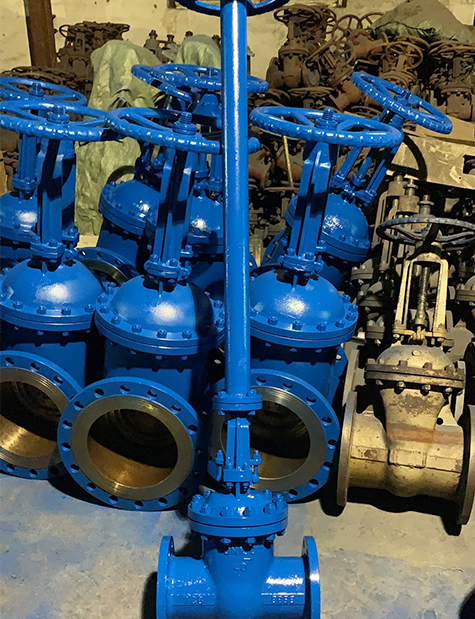

Extension stem gate valve
Features:
Size: DN40-600
Design Standard: BS5163
Material: Ductile Iron
Inspection Standard: EN12266
Application medium: Water, Oil and gas
Application Temperature: -10°C to120°C
We're here to help:
Easy ways to get the answers you need.

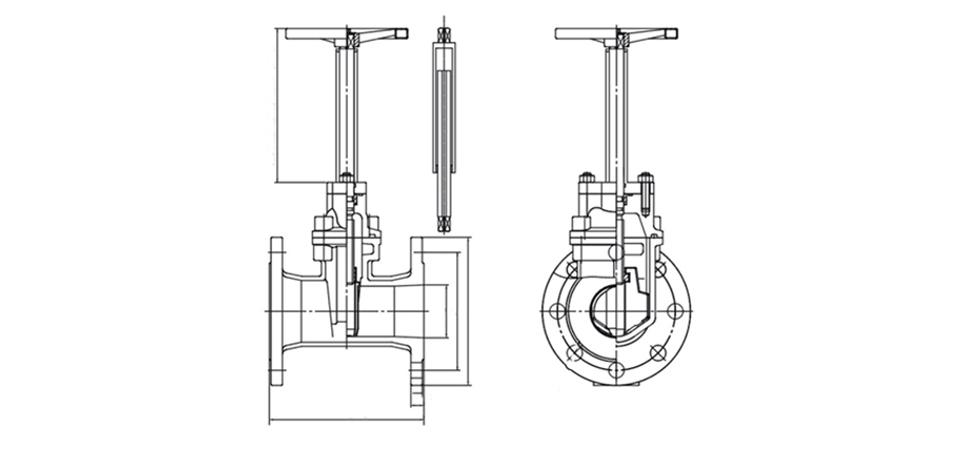

Parameter:
What is extension stem soft seal gate valve？
An extension stem soft seal gate valve is a type of valve that is designed to regulate the flow of fluids in a pipeline. It is called an "extension stem" valve because it has a longer stem than a regular gate valve, which allows it to be installed in deep and hard-to-reach places.
The "soft seal" feature refers to the type of seal used in the valve, which is made of a soft material, such as rubber or plastic, that can conform to the shape of the valve seat, ensuring a tight seal and preventing leaks. This type of gate valve is commonly used in water treatment plants, sewage systems, and other applications where a reliable and durable valve is needed.
The gate valve does not need the valve well, which reduces the installation capacity and the embedded depth range can be adjusted. The telescopic rod is manipulated through the ground directly. The ground part and underground part are integrated into one, which can effectively prevent theft. The valve stem can be telescoped according to the depth of the valve well. The top of the stem is provided with a valve switch indicating that the signal remote transmission device can be installed, and the valve's wrong switch locking device can be installed.
|
DN |
L |
D |
D1 |
N-ød |
||||||
|
PN10 |
PN16 |
PN25 |
PN10 |
PN16 |
PN25 |
PN10 |
PN16 |
PN25 |
||
|
40 |
165 |
150 |
150 |
150 |
110 |
110 |
110 |
4-ø19 |
4-ø19 |
4-ø19 |
|
50 |
178 |
165 |
165 |
165 |
125 |
125 |
125 |
4-ø19 |
4-ø19 |
4-ø19 |
|
65 |
190 |
185 |
185 |
185 |
145 |
145 |
145 |
4-ø19 |
4-ø19 |
8-ø19 |
|
80 |
203 |
200 |
200 |
200 |
160 |
160 |
160 |
8-ø19 |
8-ø19 |
8-ø19 |
|
100 |
229 |
220 |
220 |
235 |
180 |
180 |
190 |
8-ø19 |
8-ø19 |
8-ø23 |
|
125 |
254 |
250 |
250 |
270 |
210 |
210 |
220 |
8-ø19 |
8-ø19 |
8-ø26 |
|
150 |
267 |
285 |
285 |
300 |
240 |
240 |
250 |
8-ø23 |
8-ø23 |
8-ø26 |
|
200 |
292 |
340 |
340 |
360 |
295 |
295 |
310 |
8-ø23 |
12-ø23 |
12-ø26 |
|
250 |
330 |
395 |
405 |
435 |
350 |
355 |
370 |
8-ø23 |
12-ø28 |
12-ø30 |
|
300 |
356 |
445 |
460 |
485 |
400 |
410 |
430 |
12-ø23 |
12-ø28 |
12-ø30 |
WESDOM Advantages
1.WESDOM patent products, patent certification
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The product has an independent identity to ensure traceability
Each wesdom product has its own unique identification number, to ensure product traceability.
3.Provide material inspection report
All wesdom products can provide the material inspection report of the main parts.
4.One-stop service
One-stop service, we not only supply high quality products, also supply solutions and after-sales service.
5.WESDOM has a lot of project experience
We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.
6. WESDOM has a strict quality control system
WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.
Quality Control Process
Standards&Features:
Advantages of extension stem soft seal gate valve:
1. Durability:
The valve is made of high-quality materials that can withstand extreme temperatures, pressures, and corrosive environments, ensuring long-lasting performance.
2. Tight seal:
The soft seal design of the valve ensures a tight seal, preventing leaks and minimizing the risk of contamination.
3. Easy installation:
The longer stem of the valve makes it easy to install in deep and hard-to-reach places, reducing the need for additional equipment or manpower.
4. Low maintenance:
The valve requires minimal maintenance, as the soft seal design eliminates the need for regular lubrication or tightening.
5. High flow capacity:
The gate valve design of the valve allows for high flow rates and low pressure drops, making it ideal for applications where high flow capacity is required.
6. Cost-effective:
The valve is cost-effective, as it requires minimal maintenance and has a long service life, reducing the need for frequent replacements.
Overall, extension stem soft seal gate valves are reliable and efficient, making them a popular choice for a wide range of industrial and commercial applications.
Case:

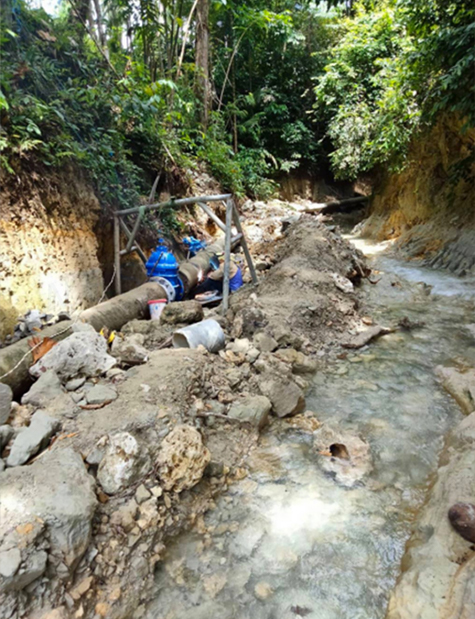

Philippine Water Project
Main products: Gate valves, SO flanges, HDPE pipe fittings, water meters
This is an old customer who repurchased on WESDOM many time. Because of the first trust, and remember that the first trial order is a 20 foot container., and there have been countless cooperations in the later period. WESDOM always provides high-quality products, the best Preferential prices and considerate and warm service to impress and reward every customer;
Client feedback:
Although the quantity purchased from WESDOM is not large, but the price and quality of WESDOM products are very good. Every time the business staff of WESDOM international trade department will give us the most professional and patient answers and services. Thank you very much WESDOM.
Project pictures:
Application:
Extension stem gate valves are commonly used in applications where the valve is installed in an area that is difficult to access, such as underground pipelines or buried valves. Some common applications include:
1. Water supply and distribution:
Extension stem gate valves are used in water supply and distribution systems to control the flow of water. They are often installed in underground pipelines, and the extension stem allows the valve to be operated from above ground without the need for excavation.
2. Oil and gas industry:
Extension stem gate valves are used in oil and gas pipelines for controlling the flow of crude oil, natural gas, and other fluids. They are often installed in offshore platforms, underground pipelines, or other hard-to-reach areas.
3. Chemical processing:
Extension stem gate valves are used in chemical processing plants to control corrosive and abrasive fluid flow in pipelines, reactors, and other equipment. They are often installed in areas where it is difficult to access or where the valve needs to be isolated for maintenance or repair.
4. Mining:
Extension stem gate valves are used in mining operations for controlling the flow of water, slurries, and other fluids in pipelines, pumps, and other equipment. They are often installed in underground pipelines or other hard-to-reach areas.
Overall, extension stem gate valves are well-suited for applications where the valve needs to be installed in an area that is difficult to access or where the valve needs to be isolated for maintenance or repair. They are widely used in many industrial processes and essential to pipelines, pumps, and other equipment.
