Pneumatic gate valve
Features:
Size: DN40-600
Pressure Rating: PN1.66.4,0.3-0.5MPa
Material: alloy steel,Stainless steel
Design Standard: API6D,ASME B16.34
Inspection Standard: API598
Application medium: gas, liquid
Application Temperature: -196-500℃
We're here to help:
Easy ways to get the answers you need.
Parameter:
What is pneumatic gate valve?
A pneumatic gate valve is a type of valve that uses compressed air or gas to open and close a gate or wedge that controls the flow of fluids or gases. It is commonly used in industries such as oil and gas, chemical, and wastewater treatment. The valve is operated by a pneumatic actuator, which converts the energy of compressed air into mechanical motion to move the gate or wedge. Pneumatic gate valves are known for their reliability, durability, and ease of automation, making them ideal for applications that require frequent and precise control of fluid or gas flow.
|
DN |
L(F4) |
L(BS) |
D1 |
D2 |
D3 |
H |
N-øD |
|
|
|
|
|
|
|
|
|
PN10 |
PN16 |
|
50 |
150 |
178 |
99 |
125 |
165 |
220 |
4-ø19 |
4-ø19 |
|
65 |
170 |
190 |
118 |
145 |
185 |
240 |
4-ø19 |
4-ø19 |
|
80 |
180 |
203 |
132 |
160 |
200 |
290 |
8-ø19 |
8-ø19 |
|
100 |
190 |
229 |
156 |
180 |
220 |
330 |
8-ø19 |
8-ø19 |
|
125 |
200 |
254 |
184 |
210 |
250 |
375 |
8-ø19 |
8-ø19 |
|
150 |
210 |
267 |
211 |
240 |
285 |
420 |
8-ø23 |
8-ø23 |
|
200 |
230 |
292 |
266 |
295 |
340 |
500 |
8-ø23 |
12-ø23 |
|
250 |
250 |
330 |
319 |
355 |
405 |
610 |
12-ø23 |
12-ø28 |
|
300 |
270 |
356 |
370 |
410 |
460 |
720 |
12-ø23 |
12-ø28 |
WESDOM Advantages
1.WESDOM patent products, patent certification
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The product has an independent identity to ensure traceability
Each wesdom product has its own unique identification number, to ensure product traceability.
3.Provide material inspection report
All wesdom products can provide the material inspection report of the main parts.
4.One-stop service
One-stop service, we not only supply high quality products, also supply solutions and after-sales service.
5.WESDOM has a lot of project experience
We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.
6. WESDOM has a strict quality control system
WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.
Quality Control Process
Standards&Features:
The advantages of a pneumatic gate valve include the following:
1. Fast and precise control:
Pneumatic gate valves have quick and accurate response times, making them ideal for applications requiring precise fluid or gas flow control.
2. High reliability:
Pneumatic gate valves are known for their high reliability, as they have fewer moving parts than other types of valves, which reduces the risk of mechanical failure.
3. Easy automation:
Pneumatic gate valves are easy to automate, which makes them ideal for applications that require remote operation or integration with a control system.
4. Low maintenance:
Pneumatic gate valves require minimal maintenance, which reduces downtime and maintenance costs.
5. Cost-effective:
Pneumatic gate valves are generally less expensive than other valves, making them an attractive option for applications requiring multiple valves.
6.Wide range of sizes and materials:
Pneumatic gate valves are available in a wide range of sizes and materials, making them suitable for various applications, from small-scale residential plumbing to large-scale industrial processes.
Case:
Tanzania Water Project
Main products: Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.
Client feedback:

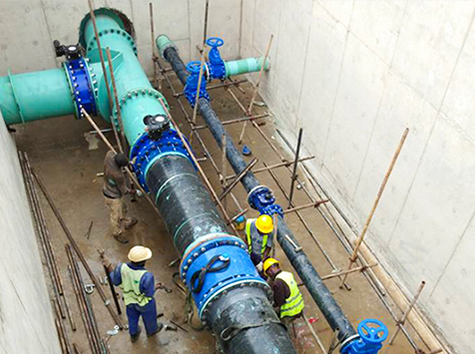

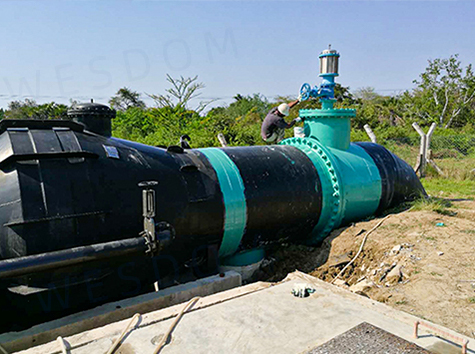

The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;
Project pictures:
Application:
Pneumatic gate valves are commonly used in a wide range of industrial applications, including:
1. Oil and gas industry:
Pneumatic gate valves are used in oil and gas pipelines, drilling rigs, and refineries for controlling the flow of crude oil, natural gas, and other fluids.
2. Chemical processing:
Pneumatic gate valves are used in chemical processing plants for controlling the flow of corrosive and abrasive fluids in pipelines, reactors, and other equipment.
3. Power generation:
Pneumatic gate valves are used in power plants to control the flow of steam, gas, and other fluids in boilers, turbines, and other equipment.
4. Water treatment:
Pneumatic gate valves are used in water treatment plants for controlling the flow of water, wastewater, and chemicals in pipelines, pumps, and other equipment.
5. Mining:
Pneumatic gate valves are used in mining operations for controlling the flow of water, slurries, and other fluids in pipelines, pumps, and other equipment.
6. Food and beverage processing:
Pneumatic gate valves are used in food and beverage processing plants for controlling the flow of liquids and gases, as well as for cleaning and sterilizing equipment.
Overall, pneumatic gate valves are well-suited for applications where precision control of fluid flow is required, and where quick and reliable actuation is necessary. They are widely used in many industrial processes and are an essential component in pipelines, pumps, and other equipment.
