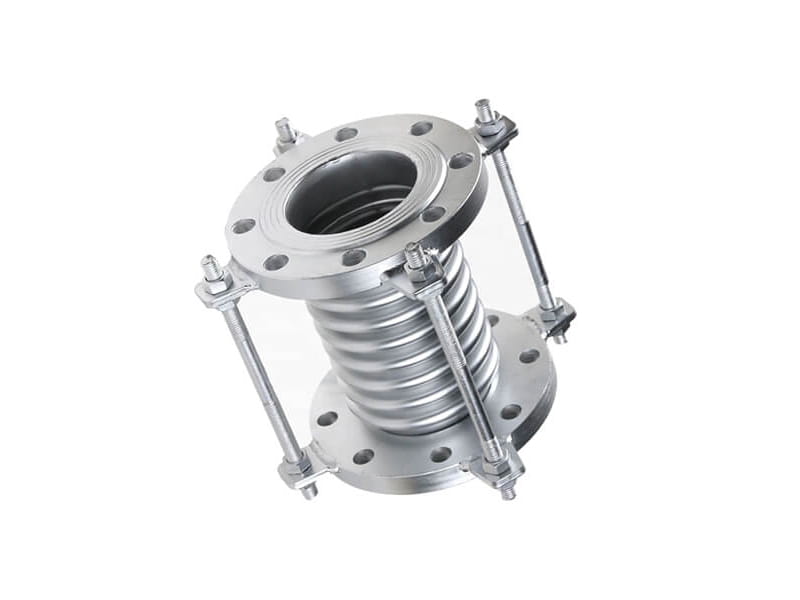

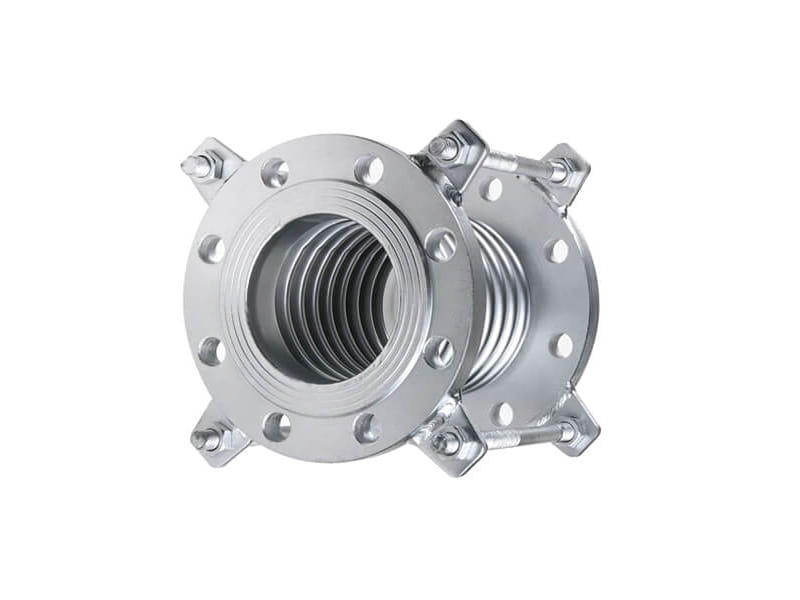

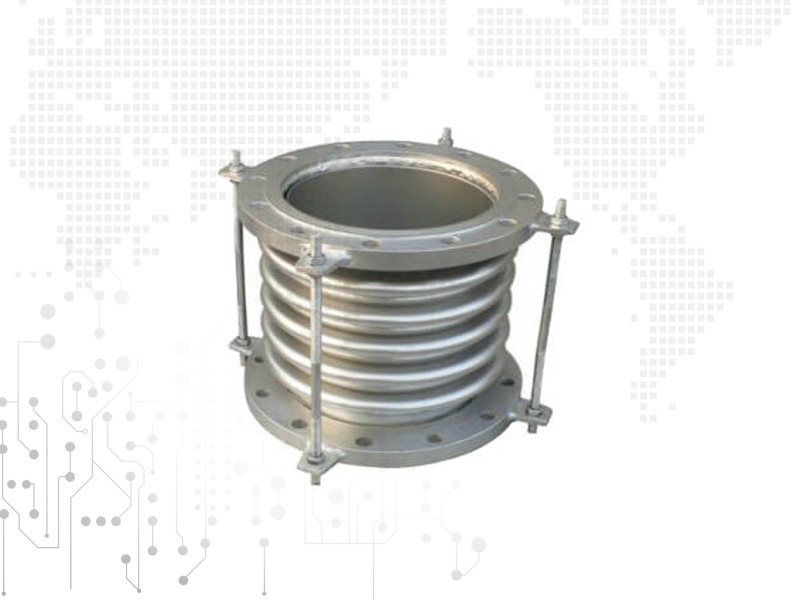

ZBW Damping Corrugated Hose
Features:
Size: 1-1/4”~40”
Pressure Rating: PN10-PN25
Material: WCB, Stainless Steel
Design Standard: GB/T12777-2008
Application Temperature: -20°C --+400°C
We're here to help:
Easy ways to get the answers you need.
Parameter:
Pipe fittings as the mandatory accessories in pipeline, WESDOM also could provide wide range of standard and materials to match your pipes and valves. One stop service, save your time, save your money!
|
DN |
Number of wave |
Pressure Grade (Mpa) |
Available area （cm2） |
Max size (mm) |
Length(mm) |
|||||
|
0.25 |
0.6 |
1 |
1.6 |
2.5 |
Flange JDZ/F |
Pipe ;DZ/F |
||||
|
Axial ;compensation ;mm/ N/mm |
||||||||||
|
32 |
8 |
25/21 |
22/26 |
20/26 |
18/63 |
15/98 |
16 |
110 |
160/250 |
264/210 |
|
16 |
50/11 |
46/14 |
41/14 |
36/32 |
31/47 |
220 |
244/291 |
316/320 |
||
|
40 |
8 |
25/28 |
22/44 |
20/44 |
18/89 |
15/106 |
23 |
130 |
164/259 |
269/260 |
|
16 |
50/14 |
46/22 |
41/22 |
36/45 |
31/55 |
240 |
230/304 |
319/400 |
||
|
50 |
8 |
25/30 |
22/51 |
20/70 |
18/70 |
15/138 |
37 |
150 |
172/276 |
282/230 |
|
16 |
50/16 |
46/26 |
41/35 |
36/35 |
31/70 |
260 |
240/342 |
347/450 |
||
|
65 |
8 |
33/28 |
30/35 |
26/44 |
22/55 |
19/68 |
55 |
170 |
215/294 |
300/260 |
|
12 |
42/16 |
38/22 |
38/32 |
34/40 |
29/50 |
280 |
260/334 |
340/470 |
||
|
80 |
8 |
40/20 |
36/26 |
34/33 |
28/41 |
24/54 |
81 |
200 |
240/338 |
344/260 |
|
10 |
53/14 |
49/17 |
49/21 |
43/26 |
38/33 |
230 |
270/368 |
374/300 |
||
|
100 |
6 |
45/47 |
45/60 |
40/75 |
35/93 |
29/117 |
121 |
220 |
235/317 |
323/280 |
|
10 |
76/26 |
74/32 |
64/40 |
57/50 |
49/63 |
260 |
305/381 |
387/320 |
||
|
125 |
5 |
48/38 |
42/47 |
38/59 |
34/74 |
29/92 |
180 |
250 |
282/314 |
316/320 |
|
9 |
85/23 |
77/29 |
66/36 |
58/45 |
50/56 |
290 |
382/386 |
388/360 |
||
|
150 |
5 |
49/42 |
44/50 |
40/62 |
34/78 |
29/97 |
257 |
250 |
282/389 |
338/320 |
|
8 |
79/34 |
71/43 |
64/51 |
54/59 |
46/65 |
290 |
356/399 |
402/360 |
||
|
200 |
4 |
52/49 |
46/55 |
42/68 |
38/78 |
34/111 |
479 |
300 |
280/384 |
348/370 |
|
6 |
73/31 |
65/44 |
59/52 |
53/58 |
48/78 |
340 |
340/402 |
402/420 |
||
|
250 |
4 |
72/30 |
65/34 |
59/42 |
52/45 |
47/55 |
796 |
330 |
315/379 |
415/420 |
|
6 |
108/16 |
97/21 |
87/35 |
79/39 |
71/47 |
360 |
393/459 |
493/460 |
||
|
300 |
4 |
72/51 |
65/55 |
59/59 |
52/65 |
47/71 |
1105 |
340 |
366/427 |
466/480 |
|
6 |
108/32 |
97/35 |
87/37 |
79/41 |
71/45 |
400 |
464/525 |
564/520 |
||
|
350 |
4 |
72/58 |
65/62 |
59/67 |
52/74 |
47/81 |
1307 |
340 |
397/452 |
497/480 |
|
6 |
108/38 |
97/41 |
87/44 |
79/48 |
71/47 |
420 |
509/564 |
609/540 |
||
|
400 |
4 |
72/54 |
65/58 |
59/62 |
52/68 |
47/75 |
1611 |
340 |
412/478 |
512/480 |
|
6 |
108/36 |
97/39 |
87/43 |
79/47 |
71/52 |
420 |
522/588 |
622/560 |
||
|
450 |
4 |
108/32 |
97/35 |
87/37 |
79/41 |
71/45 |
1972 |
340 |
503/498 |
503/500 |
|
6 |
162/20 |
145/22 |
131/23 |
118/25 |
106/28 |
450 |
503/658 |
603/590 |
||
|
500 |
4 |
108/59 |
97/64 |
87/68 |
79/75 |
71/82 |
2445 |
340 |
431/523 |
531/500 |
|
6 |
162/34 |
145/37 |
131/39 |
118/43 |
106/48 |
450 |
531/655 |
631/600 |
||
|
600 |
4 |
108/74 |
97/80 |
87/85 |
79/94 |
71/103 |
3534 |
380 |
478/548 |
578/540 |
|
6 |
162/42 |
145/45 |
131/49 |
118/53 |
106/60 |
500 |
658/679 |
758/640 |
||
|
700 |
4 |
108/67 |
97/72 |
87/77 |
79/85 |
71/95 |
4717 |
1110 |
490 |
590 |
|
6 |
162/42 |
145/45 |
131/49 |
118/53 |
106/60 |
690 |
790 |
|||
|
800 |
4 |
120/88 |
108/95 |
102/102 |
94/112 |
82/123 |
5822 |
1265 |
502 |
602 |
|
6 |
183/67 |
164/72 |
156/77 |
144/85 |
125/93 |
610 |
710 |
|||
|
900 |
4 |
120/84 |
108/90 |
102/97 |
94/107 |
82/117 |
7620 |
1186 |
|
698 |
|
6 |
183/60 |
164/65 |
156/69 |
144/76 |
125/84 |
|
850 |
|||
|
1000 |
4 |
120/91 |
108/98 |
102/105 |
94/116 |
|
9043 |
1286 |
|
692 |
|
6 |
183/59 |
164/95 |
156/71 |
144/81 |
|
|
855 |
|||
Standards&Features:
1.Design temperature:-20℃~+400℃.
2.Code:JZBW Model sign:JZBW .
3.Corrugated pipe-connection type pressure-diameter-compensator.
Case:
Tanzania Water Project
Main Products: Gate Valves, Butterfly Valves, Check Valves, Pipe Fittings, etc.
Client feedback:
The customer sent us the installation pictures of the WESDOM product in the working condition project, and the feedback quality is very good, and will maintain a long-term cooperative relationship with WESDOM;

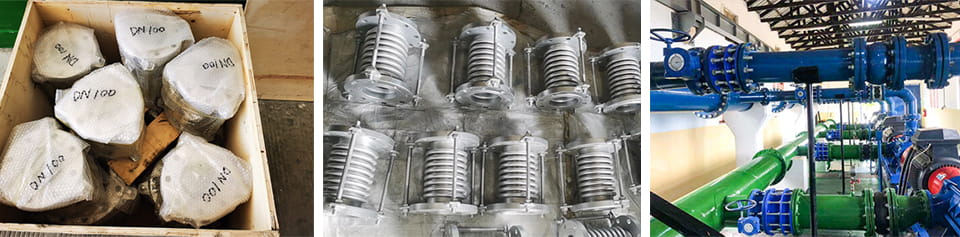

Project pictures:
Application:
Applied projects:The corrugation compensator itself has the flexibility, can compensate the temperature difference between the equipment and the pipeline deformation or other deformation, and can be shockproof, vibration reduction, reduce the pipeline to the equipment thrust and adapt to the uneven settlement of the oil tank foundation. It itself is sealed, so it can be widely used in chemical industry, oil refining, electric power, light industry, atomic energy, metallurgy, machinery, instrumentation, ships, aerospace and other departments.
