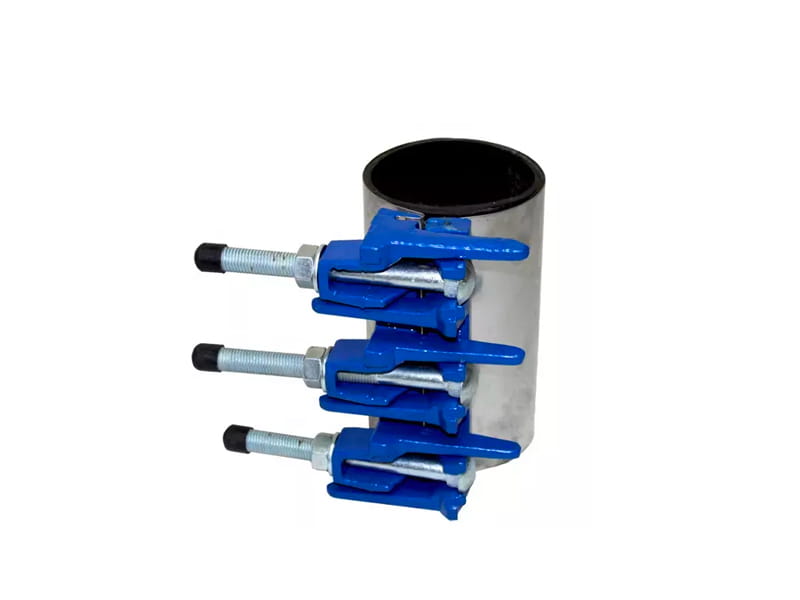

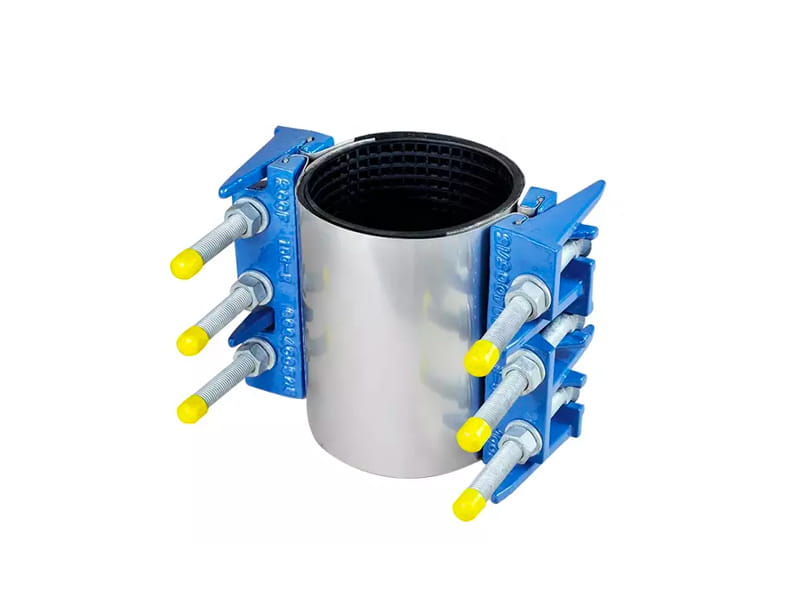

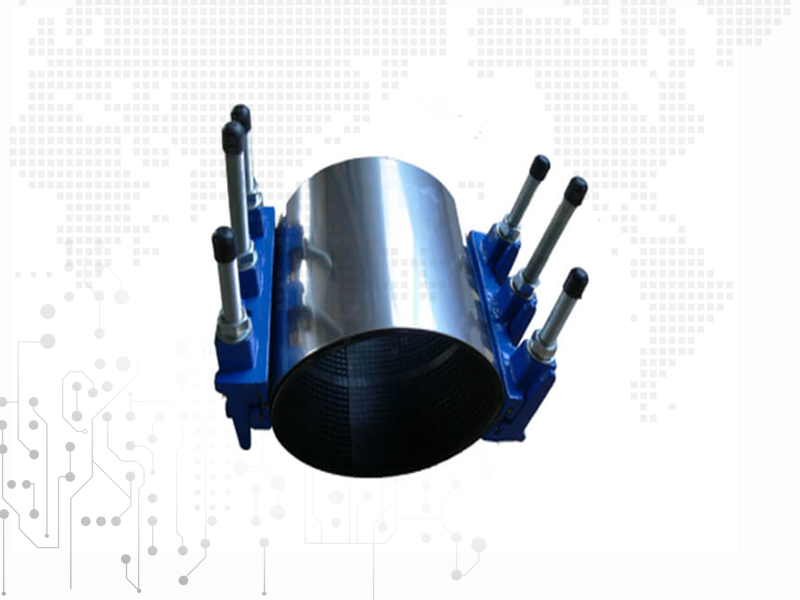

Ductile Iron Band Repair Clamp
Features:
Skin: M1:304/304L M2:Stainless steel316/316L;
Bridge Plate: M1:304/304L M2:Stainless steel316/316L;
Junction Plate: M1:304/304L M2:Stainless steel316/316L;
Lugs: M1:304/304L M2:Stainless steel316/316L;
Locking Plate: M1:304/304L M2:Stainless steel316/316L;
We're here to help:
Easy ways to get the answers you need.
Parameter:
Ductile Iron Band Repair Clamp is used on repairing different kinds of pipelines like cast iron, ductile iron, steel, asbesos cement, copper,aluminum, PVC, HDPE, fiberglass and other pipe types. It can provide a quick and economic way in repairing longitudinal, holes and breaks.

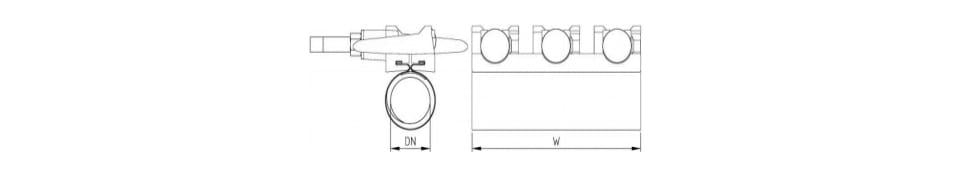

| Diameter of pipeline | O.D. range | Working pressure |
Length ;
|
Bolt ;
|
Type ;
|
||
| DN | Min ;- Max | PN | W | M |
Torque ;
|
Number ;
|
|
|
(㎜) |
(㎜) |
bar |
(㎜) |
|
(Nm) |
|
|
| DN15 | 21 ;– 23 | 16 | 150 | 10 | 50 | 2 | CR-1 |
| DN20 | 27 ;– 29 | 16 | 150 | 10 | 50 | 2 | CR-1 |
| DN25 | 32 ;– 34 | 16 | 150 | 10 | 50 | 2 | CR-1 |
| DN32 | 40 ;– 44 | 16 | 150 | 10 | 50 | 2 | CR-1 |
| DN40 | 48 ;– 52 | 16 | 150 | 12 | 80 | 2 | CR-1 |
| DN50 | 59 ;– 67 | 16 | 150 | 12 | 80 | 2 | CR-1 |
| DN65 | 69 ;– 76 | 16 | 200 | 14 | 80 | 2 | CR-1 |
| DN80 | 89 ;– 99 | 16 | 200 | 14 | 80 | 2 | CR-1 |
| DN100 | 108 ;- 118 | 16 | 200 | 16 | 100 | 2 | CR-1 |
| DN125 | 132 ;- 142 | 16 | 200 | 16 | 100 | 2 | CR-1 |
| DN150 | 159 ;- 170 | 16 | 200 | 16 | 100 | 2 | CR-1 |
| DN200 | 218 ;- 228 | 16 | 200 | 16 | 100 | 3 | CR-1 |
| DN225 | 250 ;- 260 | 10 | 300 | 16 | 100 | 4 | CR-1 |
| DN250 | 271 ;- 281 | 10 | 300 | 20 | 270 | 4 | CR-1 |
| DN300 | 325 ;- 335 | 10 | 300 | 20 | 270 | 4 | CR-1 |
| DN350 | 377 ;- 387 | 10 | 300 | 20 | 270 | 4 | CR-1 |
| DN400 | 421 ;- 440 | 10 | 400 | 20 | 270 | 10 | CR-2 |
| DN450 | 468 ;- 488 | 10 | 400 | 20 | 270 | 10 | CR-2 |
| DN500 | 525 ;- 545 | 8 | 400 | 20 | 270 | 10 | CR-2 |
| DN600 | 630 ;- 660 | 8 | 400 | 20 | 270 | 15 | CR-3 |
| DN650 | 670 ;- 690 | 8 | 600 | 20 | 270 | 21 | CR-3 |
| DN700 | 720 ;- 740 | 8 | 600 | 20 | 270 | 21 | CR-3 |
| DN750 | 770 ;- 800 | 6 | 600 | 20 | 270 | 21 | CR-3 |
| DN800 | 820 ;- 850 | 6 | 600 | 20 | 270 | 21 | CR-3 |
| DN850 | 870 ;- 900 | 6 | 600 | 20 | 270 | 21 | CR-3 |
| DN900 | 920 ;- 950 | 6 | 600 | 20 | 270 | 21 | CR-3 |
| DN1000 | 1020-1060 | 6 | 600 | 20 | 270 | 28 | CR-4 |
| DN1050 | 1070-1110 | 6 | 600 | 20 | 270 | 28 | CR-4 |
| DN1100 | 1120-1160 | 6 | 600 | 20 | 270 | 28 | CR-4 |
| DN1200 | 1220-1260 | 6 | 600 | 20 | 270 | 28 | CR-4 |
Standards&Features:
Features:
1.Easy installation, leaking pipeline quickfix
2.wide range of pipe O.D. to suit the different pipeline
3.the range of pipe O.D. for DI Jaw Single-band S.S.Repair Clamp is 10mm(+/-5mm)
the range of pipe O.D. for DI Jaw Double-band S.S.Repair Clamp is 20mm(+/-10mm)
the range of pipe O.D. for DI Jaw Triple-band S.S.Repair Clamp is 30mm(+/-15mm)
Product features:
1,The main band type of repair clamp are cast iron pipe,steel,cement tube,PE,PVC,glass steel tube and so on
many kinds of pipeline rupture,perforation,and all kinds of crack damage provides a quick and economic repair method can greatly reduce material and labor costs.
2,This product installation convenient,quick,need only one person,a wrench can easily finish pipe repair,no
longer needs a large number of workers,can need not stopped completely,not replace pipe pressure of piping of fast repair,the circular arc of the degree requirements for pipe low.
3,The stainless steel material,have anticorrosive,high toughness,hardness and other characteristics.
4,Band type of repair clamp have Double sealing ring,aft into tapered,as long as it is within the scope of
arms hoop size,where all can realize effective overlap,uniform seal.Sealing ring sruface for fine mesh,can
adapt to rough,the irregular surface porous pipes,around the entire pipeling sealing circle form effective.
5,This product use the card buckle type connection mode,and the product scope biggest suitable diameter can be up to 30 mm,can greatly reduce inventory,the product specification can be from DN1500-repair width can be up to 2000mm,almost can meet the size of pipe.)
|
Components/ Material |
M1
|
M2
|
|
Skin
|
304/304L
|
Stainless steel316/316L
|
|
Bridge Plate
|
304/304L
|
Stainless steel316/316L
|
|
Junction Plate
|
304/304L
|
Stainless steel316/316L
|
|
Lugs
|
304/304L
|
Stainless steel316/316L
|
|
Locking Plate
|
304/304L
|
Stainless steel316/316L
|
|
Bolt & Nut
|
304/304L
|
Stainless steel316/316L
|
|
SBR(styrene butadiene rubber)Sealing rubber
|
T：-30℃ to +100℃
|
Medium：Available for water,gas,oil,fuel oil and other hydrocarbon
|
|
NBR(nitrile -butadiene rubber)Sealing rubber
|
T：-20℃ to +80℃
|
Medium：Available for water,gas,oil,fuel oil and other hydrocarbon
|
Case:
For the DI repair clamp
1),clamp parts castings : Ductile iron GGG500-7 with fusion bonded epoxy coating
2),bolts and nuts : Carbon steel , Grade 4.8 , zinc plated .
3),rubber:EDPM .
4),clamp body:Stainless steel SS304 .
5),Work pressure:PN16
6),packing:wooden cases
Application:
Be used on repairing different kinds of pipelines like Cast Iron, Steel,Asbestos Cement,Copper, Aluminum, PVE, HDPE,Fiberglass and other pipe type.
