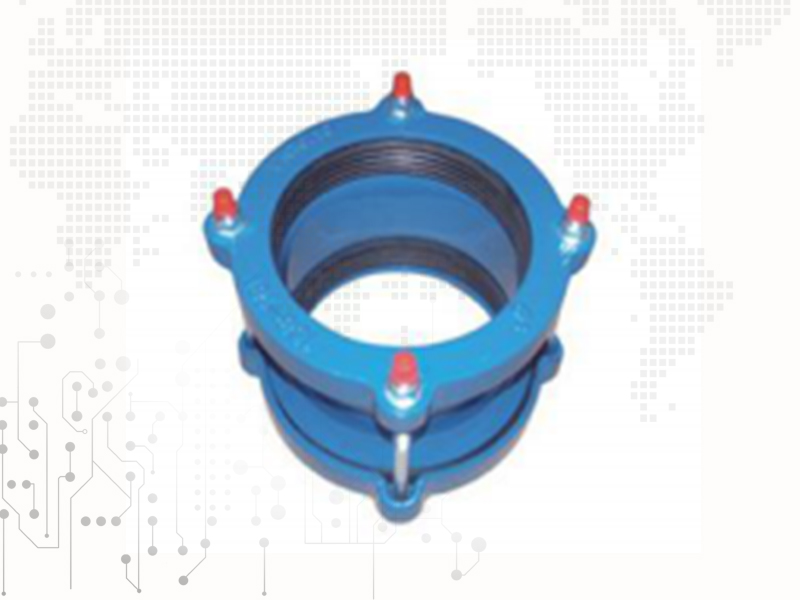

Flexible Multi-Function Pipe Coupling ZFJ-S
Features:
Size: 2”~80”
Pressure Rating: PN10-PN25
Material: Ductile Iron
Design Standard: ISO2531,EN545
Application medium: For Water, Oil and Gas Industrial
Application Temperature: 0-80℃
We're here to help:
Easy ways to get the answers you need.
Parameter:
| Pipe diameter | Diameter range |
Length
|
Bolt
|
Working pressure | ||
| ㎜ | Min | Max | L | No - Dia | Mpa | |
| DN80S | 88 | 103 | 210 |
3 - M16 |
1.6 | |
| DN80L | 88 | 103 | 270 |
3 - M16 |
1.6 | |
| DN100S | 108 | 132 | 220 |
3 - M16 |
1.6 | |
| DN100L | 108 | 132 | 270 |
3 - M16 |
1.6 | |
| DN150S | 158 | 182 | 275 |
3 - M16 |
1.6 | |
| DN150L | 158 | 182 | 320 |
3 - M16 |
1.6 | |
| DN200 | 214 | 238 | 290 |
5 - M16 |
1.6 | |
| DN225 | 242 | 269 | 290 |
5 - M16 |
1.6 | |
| DN250 | 270 | 295 | 290 |
6 - M16 |
1.6 | |
| DN300A | 310 | 334 | 340 |
6 - M16 |
1.6 | |
| DN300B | 330 | 356 | 340 |
6 - M16 |
1.6 | |
| DN375 | 400 | 429 | 340 |
8 - M16 |
1.6 | |
| DN450 | 488 | 512 | 340 |
10 - M16 |
1.6 | |
| DN500 | 540 | 565 | 340 |
12 - M16 |
1.6 | |
| DN600 | 656 | 680 | 340 |
14 M16 |
1.6 | |
Standards&Features:
ZFJ series offer safe and quick installation, no need of disassembled any part. Suit for irregular and deformation pipes(with a deviation of 3°), it works well even if the pipe is swelled, shrinked or moved. The coating of end cap compliance with the standard NSF61, durable, resistant to corrosion,wide applicable temperature range and less abrasion.
1.More economic than mechanical splice.2.Good corrosion resistance can be compared with DI pipe.
3.Less inventory pressure.
4.Save space.
5.Flexible. Suit for nearly all the DI, asbestos cement and other kinds of pipes in rated sizes.
| Components: | Property | ||||||
| Stainless steel band: | SUS 304 | ||||||
| Fastener: | GGG50 | ||||||
| Bolt: | SUS 304,316,Q235 | ||||||
| Nut: | SUS 304,316,Q235 | ||||||
| Shim: | SUS 304,316,Q235 | ||||||
| Rubber sealing cylinder: | EPDM | (-20℃—+140℃）Water,air,powdered ;dust and ordingary steam | |||||
