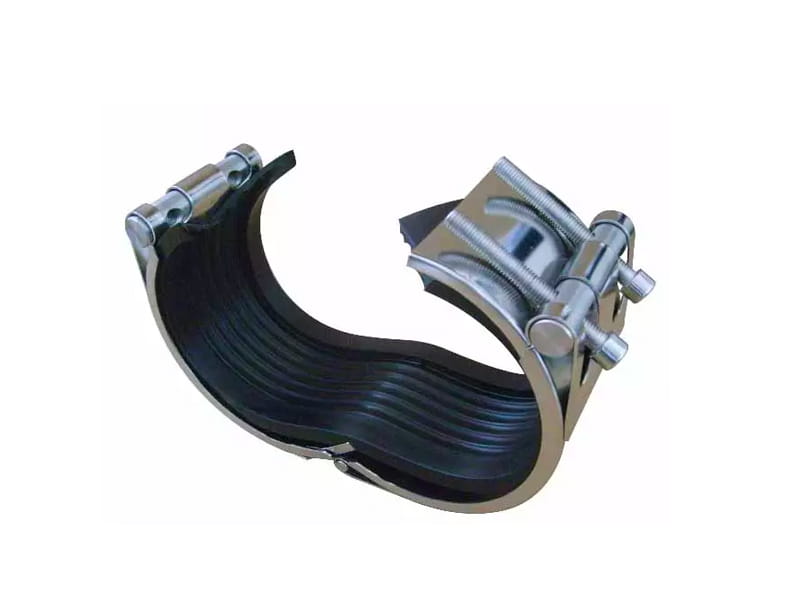

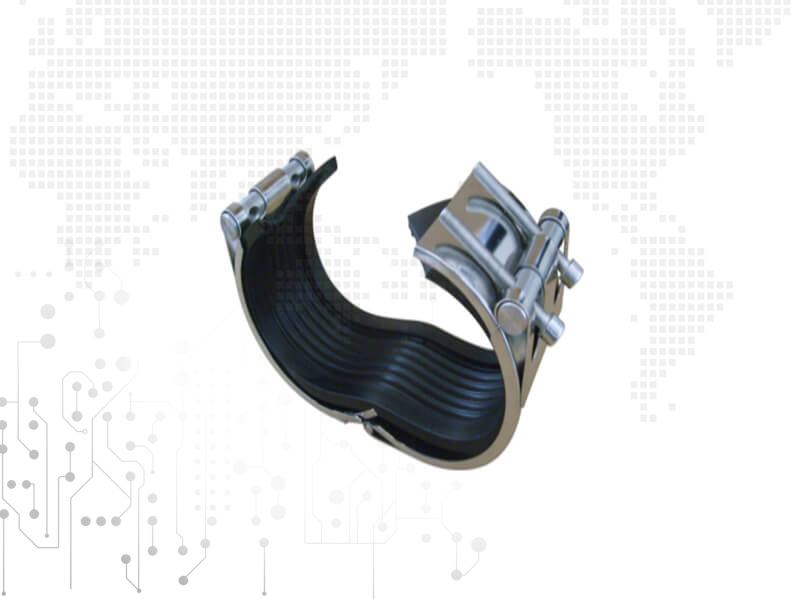

Folding Type Pipe Repair
Features:
Shell： M1:AISI 304 Stainless steel; M2:AISI 316L Stainless steel;
Bridge Plate: M1:AISI 304 Stainless steel; M2:AISI 316L Stainless steel;
Screw Hole Tie Rod/Tie Rod: M1:AISI 304 Stainless steel; M2:AISI 316L Stainless steel;
Screw M1:AISI 304 Stainless steel; M2:AISI 316L Stainless steel;
We're here to help:
Easy ways to get the answers you need.

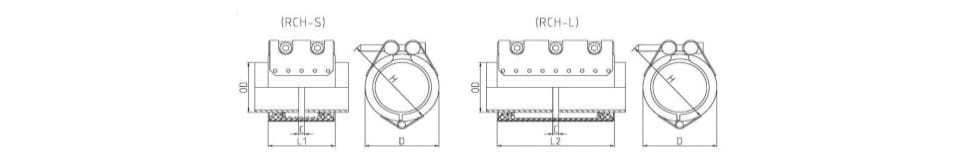

Parameter:
|
Pipe ;O.D
|
O.D ;range |
Working ;pressure |
Size ; |
Bolt |
Bolt ;torque |
||||
|
OD |
ODmin ;— ODmax(mm)
|
WP(bar)
|
C(mm)
|
L1(mm)
|
L2(mm)
|
D(mm)
|
H(mm)
|
M | Nm |
| 18 | 17 ; — 19 | 32 | 5 | 57 |
— |
35 | 55 | 6 | 10 |
| 21.7 | 21 ; — 23 | 32 | 5 | 57 |
— |
45 | 65 | 6 | 10 |
| 25 | 24.5 ; — 25.5 | 32 | 5 | 57 |
— |
50 | 70 | 6 | 10 |
| 27.2 | 26 ; — 28 | 32 | 5 | 57 |
— |
50 | 70 | 6 | 10 |
| 32 | 31.5 ; — 32.5 | 32 | 5 | 57 |
— |
55 | 75 | 6 | 10 |
| 34 | 33 ; — 35 | 32 | 5 | 57 |
— |
55 | 75 | 6 | 10 |
| 40 | 39.5 ; — 41.5 | 32 | 5 | 57 |
— |
55 | 75 | 6 | 10 |
| 42 | 42 ; — 44 | 32 | 5 | 57 | 100 | 65 | 85 | 6 | 15 |
| 44.5 |
44 ; — 45.1 |
32 | 5 | 57 | 100 | 65 | 85 | 6 | 15 |
| 48.6 | 47 ; — 49 | 32 | 5 | 57 | 100 | 70 | 90 | 6 | 15 |
| 54 | 53.6 ; — 54.6 | 32 | 5 | 57 | 100 | 70 | 90 | 8 | 30 |
| 57 | 56.3 ; — 57.7 | 32 | 5 | 57 | 100 | 80 | 100 | 8 | 30 |
| 60.3 | 59 ; — 62 | 32 | 5 | 80 | 139 | 85 | 105 | 8 | 30 |
| 63 | 62.2 ; — 63.9 | 32 | 5 | 80 | 139 | 85 | 105 | 8 | 30 |
| 76.1 | 75 ; — 78 | 28 | 5 | 80 | 139 | 100 | 120 | 8 | 30 |
| 79.9 | 78.8 ; — 80.8 | 28 | 5 | 80 | 139 | 100 | 120 | 8 | 30 |
| 88.9 | 88 ; — 92 | 28 | 5 | 107 | 203 | 110 | 130 | 10 | 50 |
| 108 | 106 ; — 110 | 28 | 5 | 107 | 203 | 130 | 150 | 10 | 50 |
| 110 | 108.9 ; — 111.2 | 28 | 5 | 107 | 203 | 130 | 150 | 10 | 50 |
| 114.3 | 112 ; — 116 | 28 | 5 | 107 | 203 | 135 | 155 | 10 | 50 |
| 118 | 116.6 ; — 119.2 | 28 | 5 | 107 | 203 | 140 | 160 | 10 | 50 |
| 125 | 123.6 ; — 126.5 | 28 | 5 | 107 | 203 | 150 | 185 | 10 | 50 |
| 133 | 131.5 ; — 134.4 | 28 | 5 | 107 | 203 | 160 | 190 | 10 | 50 |
| 140 | 137 ; — 143 | 28 | 5 | 116 | 203 | 165 | 195 | 12 | 80 |
| 159 | 157 ; — 161 | 24 | 5 | 116 | 203 | 185 | 215 | 12 | 80 |
| 165.2 | 163.3 ; — 166.7 | 24 | 5 | 116 | 203 | 190 | 210 | 12 | 80 |
| 168 | 166 ; — 170 | 24 | 5 | 116 | 203 | 195 | 225 | 12 | 80 |
| 170 | 168.2 ; — 171.9 | 24 | 5 | 116 | 203 | 195 | 225 | 12 | 80 |
| 200 | 198.2 ; — 201.5 | 16 | 10 | 155 | 255 | 240 | 270 | 14 | 100 |
| 219 | 217 ; — 221 | 16 | 10 | 155 | 255 | 250 | 280 | 14 | 100 |
| 254 | 250 ; — 256 | 16 | 10 | 155 | 255 | 285 | 315 | 14 | 100 |
| 273 | 271 ; — 275 | 16 | 10 | 155 | 255 | 305 | 335 | 14 | 100 |
| 315 | 313 ; — 317 | 14 | 10 | 155 | 255 | 340 | 375 | 14 | 100 |
| 325 | 323 ; — 327 | 14 | 10 | 155 | 255 | 355 | 385 | 14 | 100 |
| 355.6 | 352 ; — 359 | 14 | 10 | 155 | 255 | 385 | 420 | 14 | 100 |
| 377 | 375 ; — 381 | 14 | 10 | 155 | 255 | 410 | 440 | 14 | 100 |
Standards&Features:
|
Components/ Material |
M1 | M2 | ||
|
Shell ;
|
AISI 304 Stainless steel | AISI 316L Stainless steel | ||
| Bridge Plate | AISI 304 Stainless steel | AISI 316L Stainless steel | ||
| Screw Hole Tie Rod/Tie Rod | AISI 304 Stainless steel | AISI 316L Stainless steel | ||
| Screw | AISI 304 Stainless steel | AISI 316L Stainless steel | ||
| EPDM(Ethylene Propylene Diene Monomer)Rubber Sealing Sleeve | Temperature:-20℃ to ;+120℃ Medium:Available for various kinds of water,drainage,air,solid and chemicals |
|
||
| NBR(Nitrile Rubber)Rubber Sealing Sleeve |
Temperature：-20℃ to ;+80℃ Medium:Available for gas,oil,fuel and other hydrocarbon.
|
|
||
| MVQ(Silicon Rubber)Rubber Sealing Sleeve | Temperature Range:-75℃ to ;+200℃ | |||

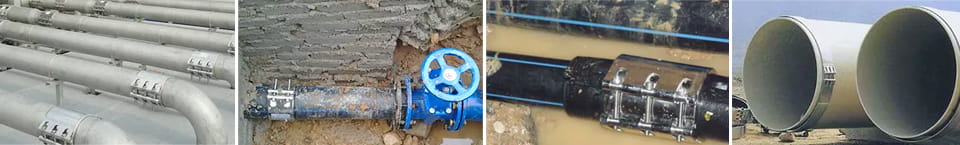

Case:
Help a lot on repairing pin holes and breaks caused bu aging or rusting. Have advantages of safe, convenient and efficiency.
Application:
RCH Folding series is widely used on quick repairing of pipe leaks which can seal under pressure and no need of changing pipes.
