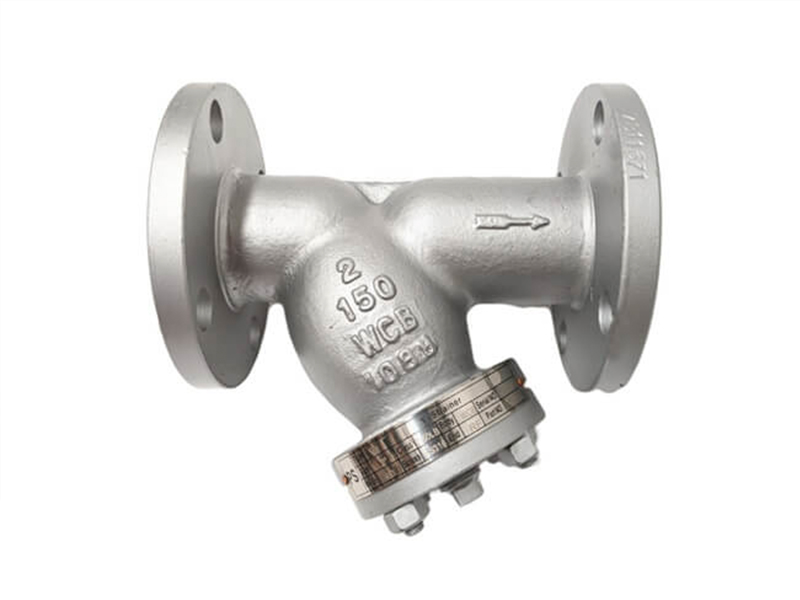

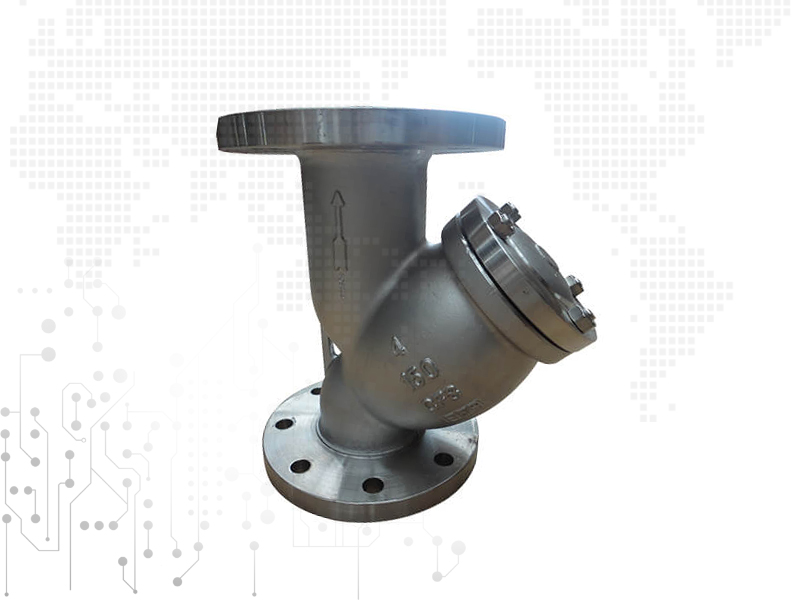

ANSI “Y” Strainer
Features:
Name： ANSI “Y” Strainer
Type： GL41H-150LBC/P
Nominal Diameter： DN50-300mm
Nominal Pressure： PN1.0/1.6mpa
Suitable Temperature： -29℃～450℃
Suitable Medium： Water、Oil、Gas
Valve body Material： Carbon steel，Stainless steel
We're here to help:
Easy ways to get the answers you need.
Parameter:
The Y-type strainer is an indispensable device for the pipeline series conveying the medium. It is usually installed at the inlet end of the pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to eliminate impurities in the medium to protect the valve and the normal use of the device.
WESDOM filter has the characteristics of advanced structure, low resistance and convenient sewage discharge. The applicable medium can be water, oil and gas. WESDOM could provide Y type and basket type strainers.
| DN | Size(in) | L | H | H1 | |
| DN20 | 3/4” | 150 | 80 | 115 | |
| DN25 | 1” | 160 | 90 | 125 | |
| DN32 | 1-1/4” | 18 | 110 | 145 | |
| DN40 | 1-1/2” | 200 | 135 | 173 | |
| DN50 | 2” | 210 | 160 | 210 | |
| DN65 | 2-1/2” | 245 | 185 | 243 | |
| DN80 | 3” | 270 | 190 | 290 | |
| DN100 | 4” | 320 | 45 | 390 | |
| DN125 | 5” | 360 | 290 | 430 | |
| DN150 | 6” | 430 | 350 | 510 | |
| DN200 | 8” | 500 | 415 | 595 | |
| DN250 | 10” | 600 | 545 | 780 | |
| SN300 | 12” | 700 | 670 | 875 | |
| DN350 | 14” | 750 | 735 | 1040 | |
| DN400 | 16” | 850 | 820 | 1220 | |
Standards&Features:
1.Design and manufacture in line with MFG standards.
2.Test and inspection in accordance with API598
3.The structure length is in accordance with the MFG standard.
4.Flange size are in line with ANSI B16.5 standards.
Case:
Zimbabwe LPG Project
Main products:
API valves and fittings
Client feedback:
We received the goods in good condition. They are so nice keep it up.

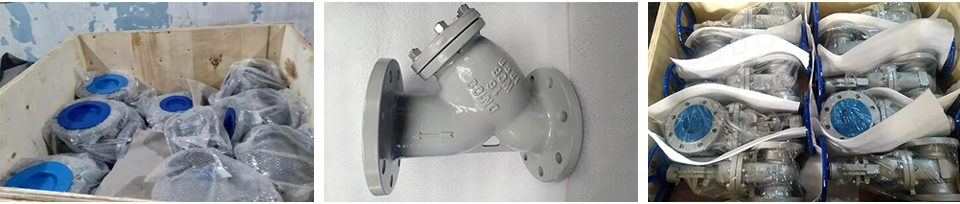

Project pictures:
Application:
1.Petroleum;
2.Chemical industry;
3.Chemical fiber;
4.Light industry;
5.Water treatment;
6.Municipal engineering and other production and living water, industrial liquid gas send.
