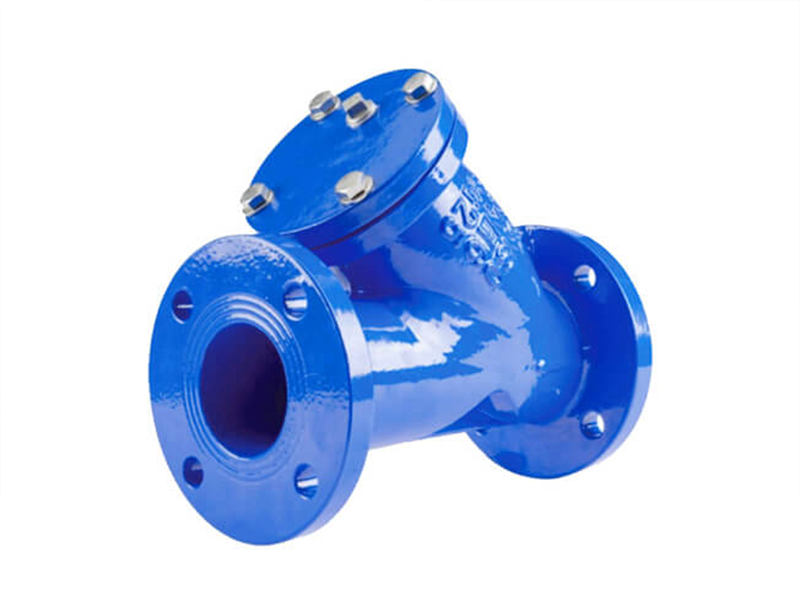

Flange Y-Type Strainer
Features:
Cast iron or Ductile iron Bonnet:
Cast iron or Ductile iron Screen:
Stainless steel Drain plug:
Carbon steel
We're here to help:
Easy ways to get the answers you need.
Parameter:
The Y-type strainer is an indispensable device for the pipeline series conveying the medium. It is usually installed at the inlet end of the pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to eliminate impurities in the medium to protect the valve and the normal use of the device. WESDOM filter has the characteristics of advanced structure, low resistance and convenient sewage discharge. The applicable medium can be water, oil and gas. WESDOM could provide Y type and basket type strainers.

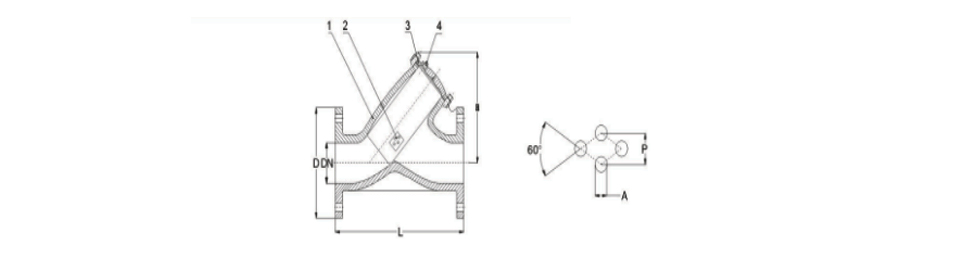

| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| 2″ | 2.5″ | 3″ | 4″ | 5″ | 6″ | 8″ | 10″ | 12″ | |
| L | 225 | 273 | 292 | 352 | 420 | 470 | 543 | 660 | 762 |
| H | 170 | 200 | 245 | 280 | 320 | 365 | 465 | 515 | 605 |
| D | 152 | 178 | 191 | 292 | 254 | 279 | 343 | 406 | 483 |
Standards&Features:
| Workingpressure | 125PSI | 150PSI | |
| Testpressureshell | 21.1kgf/cm³ | ||
Case:
Zimbabwe LPG Project
Main products: API valves and fittings
Customer demand: used for oil project
Project description:
WESDOM valves are applied in Zimbabwe LPG project.
The high quality products won praise from customers!
Client feedback:
We received the goods in good condition. They are so nice keep it up.

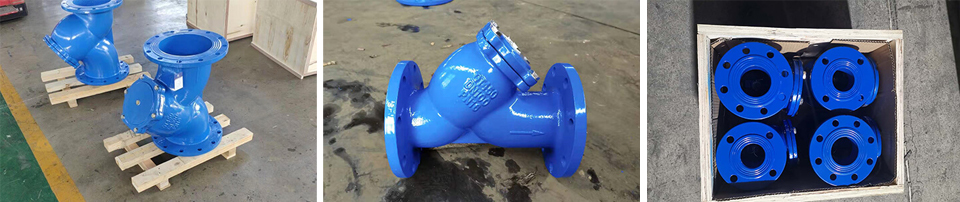

Project pictures:
Application:
Petroleum、Electricity、Metallurgy、Water、Sewage、Energy、Construction
The Y-type strainer is an indispensable device for the pipeline series conveying the medium. It is usually installed at the inlet end of the pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to eliminate impurities in the medium to protect the valve and the normal use of the device.
