Electromagnetic flowmeter
Features:
Place of Origin: CHINA
Brand Name: WESDOM/Customer-designed
Certification: ISO 4064
Model: DN15-3000，KDLD
The highest velocity： 15m/s
Precision： ±0.3% 、±0.5%
Protection grade： IP65，IP67，IP68
We're here to help:
Easy ways to get the answers you need.
Parameter:
Introduction

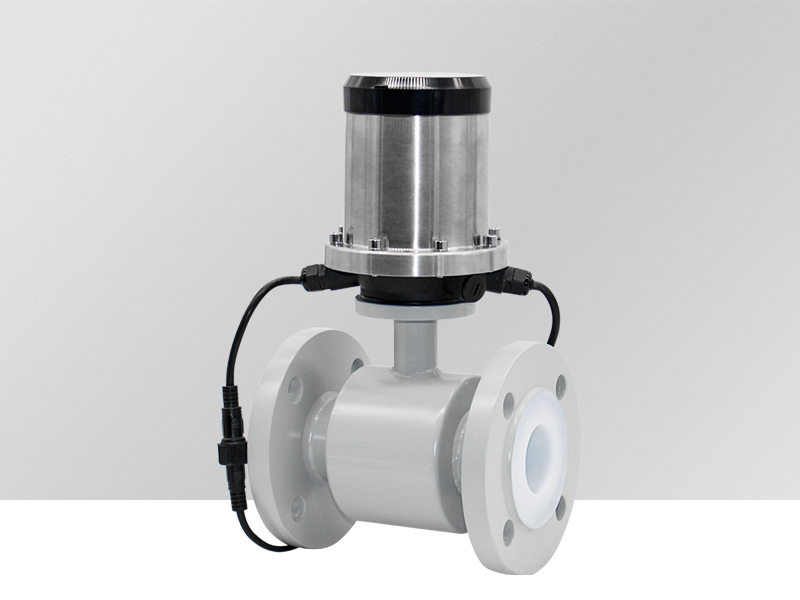

Battery-powered magnetic flow meter can be used in remote area where don’t have power grid . It is widely used for all conductive liquids in every industry, such as water, acid, alkali, milk, slurry etc. Since founded in 2005, WESDOM has been focused in magnetic flow meter manufacturing for more than 15 years. More than 600 thousand mag meters had been provided to clients all over the world for different work conditions.
Battery Powered Electromagnetic Flow Meter Advantages and Disadvantages:
1. It has a long life span, standard battery can work for 3-6 years, determined by
the excitation current;
2.Dual power supply: it’s equipped with external power supply interface, which
can be powered by external 12-24vdc power supply, enabling users to have a variety of
power options;
3. Multiple network interfaces: W803 has GPRS, RS485, HART and other network
communication for users;

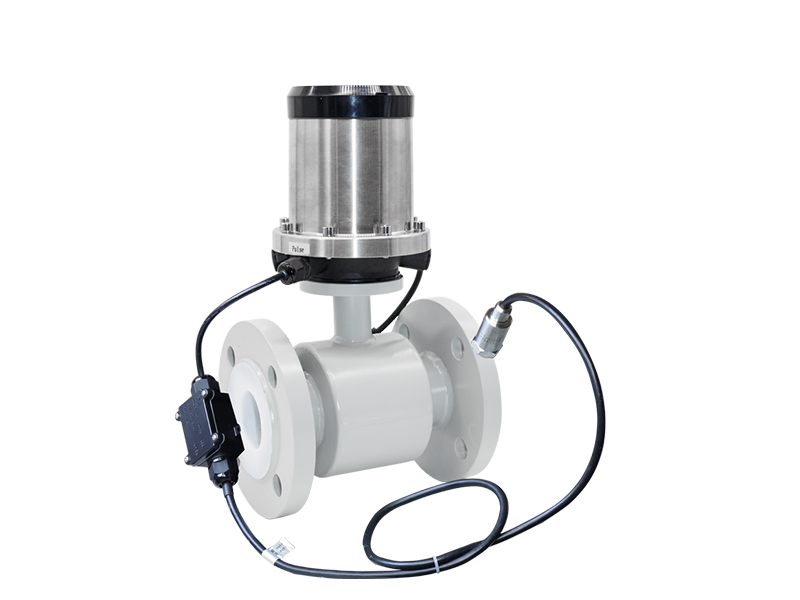

4.Multiple work mode: W803E has ‘Flow Only’ mode, ‘Flow + Pressure’ mode, ‘Flow +
Temperature’ mode for users.
Compared with other liquid type flow meter, the limitations of magnetic flow meter is that it can only be used for conductive liquid.Regarding non or low conductive liquid such as petroleum products, in addition,3.6V lithium battery need to be changed if its used up.
Parameters
|
Size |
Length（mm） |
Flange diameter (mm) |
Flange center distance（mm） |
Flange thickness（mm） |
Height（mm） |
Bolt |
|||
|
Separating type |
Integrated type |
Hole DIA |
QTY |
Bolt Size |
|||||
|
DN15 |
200 |
95 |
65 |
14 |
190 |
265 |
14 |
4 |
M12 |
|
DN20 |
200 |
105 |
75 |
16 |
200 |
275 |
14 |
4 |
M12 |
|
DN25 |
200 |
115 |
85 |
16 |
210 |
285 |
14 |
4 |
M12 |
|
DN32 |
200 |
140 |
100 |
18 |
220 |
310 |
18 |
4 |
M16 |
|
DN40 |
200 |
150 |
110 |
18 |
230 |
320 |
18 |
4 |
M16 |
|
DN50 |
200 |
165 |
125 |
20 |
245 |
335 |
18 |
4 |
M16 |
|
DN65 |
200 |
185 |
145 |
20 |
265 |
355 |
18 |
8 |
M16 |
|
DN80 |
200 |
200 |
160 |
20 |
280 |
370 |
18 |
8 |
M16 |
|
DN100 |
250 |
220 |
180 |
22 |
300 |
390 |
18 |
8 |
M16 |
|
DN125 |
250 |
250 |
210 |
22 |
330 |
420 |
18 |
8 |
M16 |
|
DN150 |
300 |
285 |
240 |
24 |
360 |
450 |
22 |
8 |
M20 |
|
DN200 |
350 |
340 |
295 |
24 |
420 |
505 |
22 |
8 |
M20 |
|
DN250 |
400 |
395 |
350 |
26 |
480 |
560 |
22 |
12 |
M20 |
|
DN300 |
500 |
445 |
400 |
26 |
530 |
610 |
22 |
12 |
M20 |
Standards&Features:
KDLD series electromagnetic flowmeter is made based on Faraday's law of electromagnetic induction machine with microelectronics technology for the integration of high-tech products, can measure the closed conducting liquid medium in the pipeline, including strong corrosive liquid such as acid, alkali, salt, mud, the volume of waste water and solid liquid two phase suspension flow. The products are widely used oil, chemical, metallurgical, textile, food, pharmaceutical, paper making industries and environmental protection, water conservancy construction and other fields.
Flow meter to measure the size of the system, two-way within three integrator: forward, reverse the total amount and total and differential; Forward and reverse flow can be shown, and has a variety of output: current, pulse, digital communications, HART.
Converter adopts 16-bit high-performance microprocessors, 2 x 16 LCD display, parameter setting is convenient, reliable in programming. There is rubber lining and polyethylene lining by ester sensor as nature structure.
Case:
OEM service for Mexico
OEM service for Mexico Flow Meter
We are providing OEM services for our Mexico customer various flow meters.
The average order quantity nearly is 30PCS every month.
These flow meters mainly applied in Mexico food, beverage, chemical, wine factory and water treatment system, etc.
