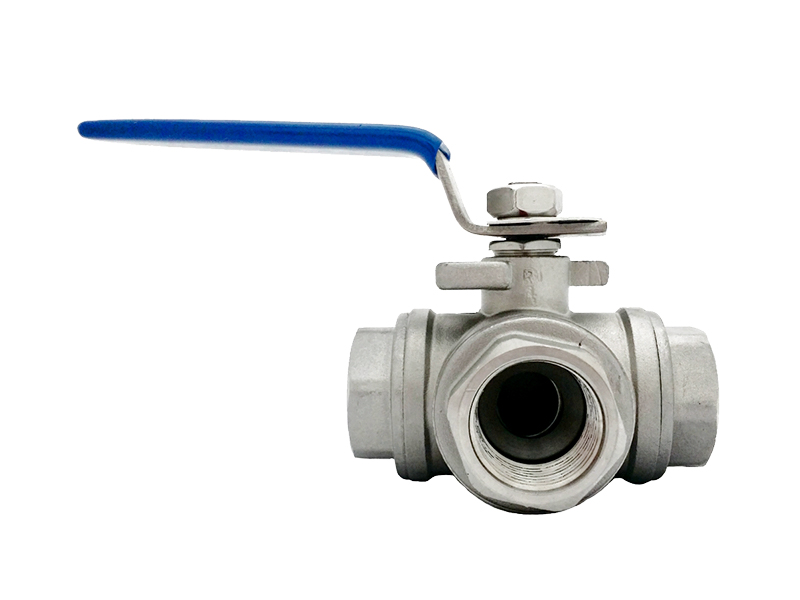

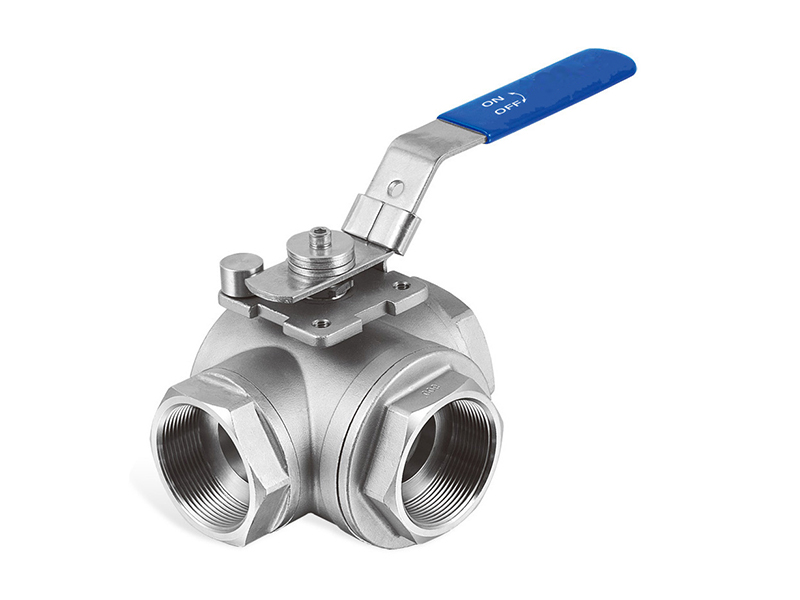

Full Bore 3 way ball valve L-Port
Features:
Size Range: 1/4” - 2” (DN8 - DN50)
Body Design: 3 Way Ball valve with L-Port design
Operations: Full Bore, Quarter Turn Operation
Working Pressure: 1000 PSI
Connections: BSPP / NPT
Applicable Medium: General Oil, Gas & Water Applications
Temperature Range: -29°C to 150°C
We're here to help:
Easy ways to get the answers you need.
Parameter:
Description:

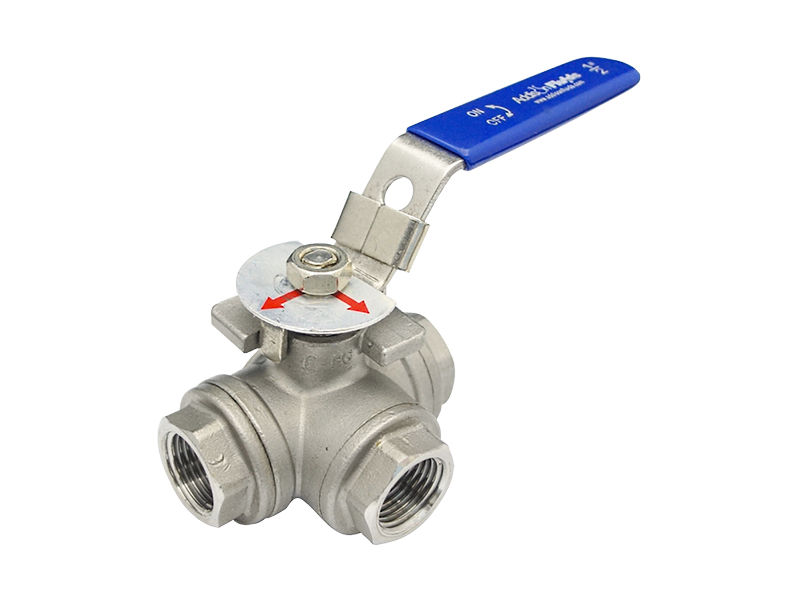

3 way ball valve is a 3 port ball valve that is used to select the flow direction in a pipeline. It is a full bore type ball valve with a quarter turn handle. By rotating the handle in 90 degree, the user can select the certain flow direction according to the arrow directional marking on the valve.

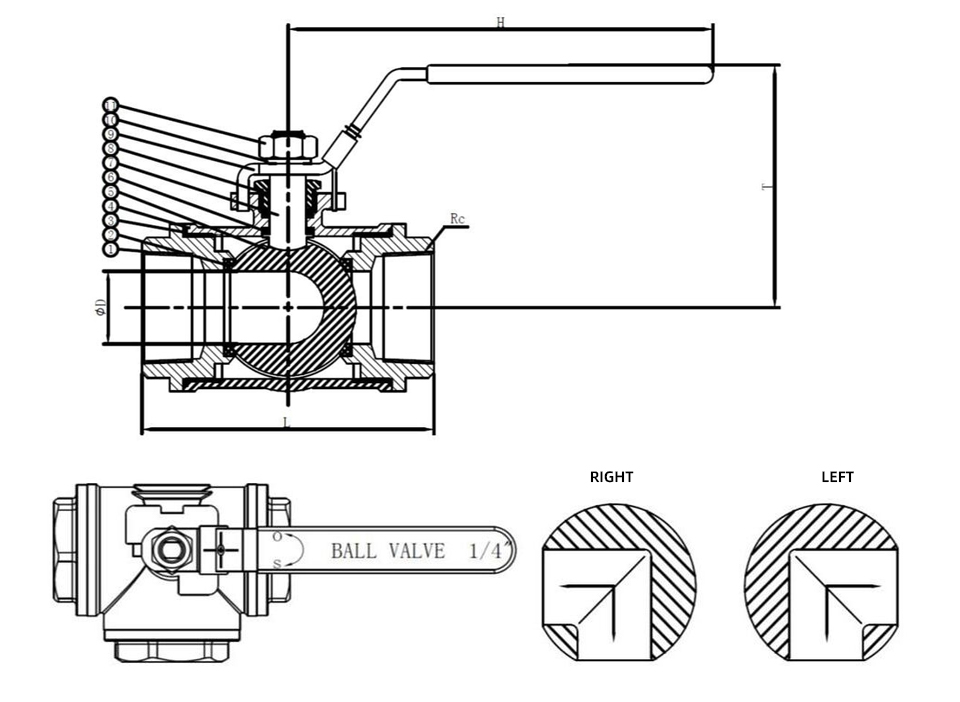

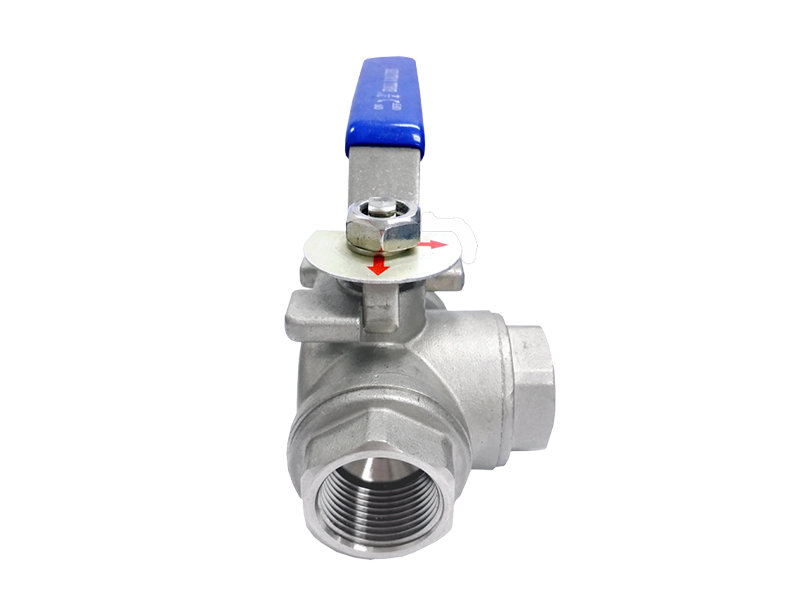

This L-Port type 3 way ball valve allow fluids to flow in 90 degree direction. For example, when the arrow directional marking faces left and center, the fluid may flow from center port to left port or left port to the center port while the right port is closing. While when the arrow directional marking is facing right and center, the fluid may flow from center port to right port or right port to center port, with left port closing. Do refer below drawing for the flow direction illustration.
For 3 way ball valve L-Port, it only have 1 inlet port and 1 outlet port, while the other 1 is in closed position to block the flow. The valve is available in stainless steel SS316 material with PTFE sealing.
|
NO |
PART NAME |
MATERIAL |
|
1 |
Bonnet |
SS316, CF8M |
|
2 |
Seat |
PTFE |
|
3 |
Gasket |
PTFE |
|
4 |
Body |
SS316, CF8M |
|
5 |
Ball |
SS316 |
|
6 |
Thrust Gasket |
PTFE |
|
7 |
Stem |
SS316 |
|
8 |
Gland |
SS304 |
|
9 |
Lever |
SS304 |
|
10 |
Washer |
SS304 |
|
11 |
Nut |
SS304 |
WESDOM Advantages
1.WESDOM patent products, patent certification
The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.
2.The product has an independent identity to ensure traceability
Each wesdom product has its own unique identification number, to ensure product traceability.
3.Provide material inspection report
All wesdom products can provide the material inspection report of the main parts.
4.One-stop service
One-stop service, we not only supply high quality products, also supply solutions and after-sales service.
5.WESDOM has a lot of project experience
We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.
6. WESDOM has a strict quality control system
WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.
Quality Control Process
Standards&Features:
Some of the advantages of a full bore 3-way ball valve include:
1. High flow capacity:
Full bore 3-way ball valves have a larger internal diameter, allowing for a higher flow capacity compared to reduced bore valves. This is especially beneficial in applications where high flow rates are required.
2. Minimal pressure drop:
The larger internal diameter of a full bore 3-way ball valve results in minimal pressure drop across the valve, ensuring efficient flow and reducing energy consumption.
3. Versatility:
A full bore 3-way ball valve allows for multiple flow configurations, such as diverting flow, mixing flow, or shutting off flow in different directions. This versatility makes it suitable for a wide range of applications and allows for greater control over the flow system.
4. Reduced maintenance:
Full bore 3-way ball valves are designed with fewer internal components, reducing the chances of wear and tear. This results in less frequent maintenance and lower overall maintenance costs.
5. Easy installation:
Full bore 3-way ball valves are compact and lightweight, making them easy to install and integrate into existing piping systems. They also have a simple and straightforward design, making them easy to operate and maintain.
6. Reliable sealing:
Full bore 3-way ball valves typically feature a floating ball design that ensures reliable sealing and prevents leakage. This is especially important in applications where tight shut-off is required, such as in the oil and gas industry or chemical processing plants.
Case:
WESDOM Group specializes in pipeline fluid systems: R&D, production and sales of valves, pipe fittings, water meters, flow meters, etc. The products cover cast iron, cast steel, stainless steel, copper, plastics and other materials, which are widely used in hydropower stations, heat, buildings, Water supply and drainage, petroleum, chemical industry, electric power, medical and other fields.
Why more and more customers are choosing wesdom valves:
1. There is a professional technical team, and quality is guaranteed
2. Independent factory, more favorable price
3. Extensively trained employees are well-versed in all aspects of flow control technology
Application:
Full bore 3-way ball valves are commonly used in various industries and applications where precise control and diversion of flow are required.
Some specific applications where full bore 3-way ball valves are commonly used include:
1. HVAC systems:
Full bore 3-way ball valves are used in heating, ventilation, and air conditioning systems for controlling the flow of hot and cold water, as well as for diverting flow between different zones or equipment.
2. Process control:
Full bore 3-way ball valves are used in process control applications, such as in the chemical, pharmaceutical, and petrochemical industries. They are used to control the flow of different fluids, regulate mixing ratios, and redirect flow to different process lines.
3. Water treatment plants:
Full bore 3-way ball valves are used in water treatment plants for applications such as controlling the flow of water, mixing chemicals, and diverting flow between different treatment processes.
4. Oil and gas industry:
Full bore 3-way ball valves are used in the oil and gas industry for applications such as controlling flow between different pipelines, directing flow to different process units, and isolating equipment for maintenance.
5. Food and beverage industry:
Full bore 3-way ball valves are used in the food and beverage industry for applications such as controlling the flow of different ingredients, blending different products, and redirecting flow between different process stages.
